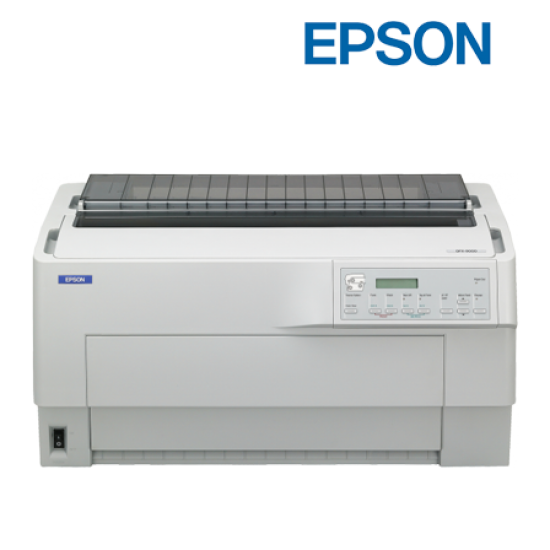

Name: Epson DFX-9000 Dot Matrix Printer (9-Pin, up to 1550cps, Parallel, 1 9 copies, Serial I/F, USB Port)
Brand: Epson
Price: 15199.00 MYR
Availability: OutOfStock

Epson DFX-9000 Dot Matrix Printer (9-Pin, up to 1550cps, Parallel, 1 9 copies, Serial I/F, USB Port)

2-3 Days

Epson DFX-9000 Dot Matrix Printer (9-Pin, up to 1550cps, Parallel, 1 9 copies, Serial I/F, USB Port)

Stock: 2-3 Days
Brand: Epson
Model: DFX-9000

Products Sold: 0

Product Views: 5263

RM15,199.00

Ex Tax: RM15,199.00

Qty

Add to Cart

Buy Now Whatsapp Us

Epson DFX-9000 Dot Matrix Printer (9-Pin, up to 1550cps, Parallel, 1 9 copies, Serial I/F, USB Port)

Model	Printer LQ-2190 Dot Matrix printer
Printing Technology	Print Method: Impact dot matrix Control Panel: 9 buttons, 6 LEDs and 1 LCD Print Direction: Bi-direction with logic seeking Number of Pins in Head: 36 pins (9 × 4 staggered) Control Code: ESC/P®, IBM® PPDS emulation
Print Speed	High Speed Draft: (10 / 12 cpi): 1,550 / 1,450 cps Draft: (10 / 12 cpi): 1,320 / 1,320 cps NLQ: (10 / 12 cpi): 330 / 330 cps
Reliability	MVBF: 133 million lines (except print head) MTBF: 20,000 POH (25% duty cycle) Printhead life: 200 million strokes/wire
Print Characteristics	Character Sets: 13 International Character Sets Standard Version: Italic table, PC437(US, Standard Europe), PC850(Multilingual), PC860(Portuguese), PC863(Canadian-French), PC865(Nordic), PC861(Icelandic), BRASCII, Abicomp, Roman 8, ISO Latin 1, PC858, ISO 8859-15 NLSP version: Italic table, PC437(US, Standard Europe), PC850(Multilingual), PC437 Greek, PC853(Turkish), PC855(Cyrillic), PC852(East Europe), PC857(Turkish), PC866(Russian), PC869(Greek), MAZOWIA(Poland), Code MJK(CSFR), ISO 8859-7(Latin/Greek), ISO Latin 1T(Turkish), Bulgaria (Bulgarian), PC774(LST 1283:1993), Eastonia(Estonia), ISO 8859-2, PC866 LAT.(Latvian), PC866 UKR(Ukraina), PC860(Portuguese), PC861(Icelandic), PC865(Nordic), PC APTEC(Arabic), PC708(Arabic), PC720(Arabic), PCAR864(Arabic), PC863(Canadian-French), BRASCII, Abicomp, Roman 8, ISO Latin 1,PC858, ISO 8859-15, PC771(Lithuania), PC437 Slovenia, PCMC, PC1250, PC1251 Bitmap Fonts: EPSON High Speed Draft: 10CPI, 12CPI, EPSON Draft 10CPI, 12CPI, Proportional, EPSON Roman: 10CPI, 12CPI, Proportional, EPSON Sans Serif: 10CPI, 12CPI, Proportional, Epson OCR-B Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Paper Path	Pull Tractor: Front or Rear in, Top Out
Paper Media	Continuous Paper (Single Sheet): Length: 76.2 - 558.8 mm (3.0 - 22.0 inch) Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) Thickness: 0.065 - 0.10 mm (0.0025 - 0.0039 inch) Continuous Paper (Multi-part Forms): Length: 76.2 - 558.8 mm (3.0 - 22.0 inch) Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) (Rear Entry) Copies: 1 original + 6 copies (Rear Entry) Thickness: 0.12 - 0.53 mm (0.0047 - 0.021 inch) (Front Entry) Copies: 1 original + 9 copies (Front Entry) Thickness: 0.12 - 0.79 mm (0.0047 - 0.031 inch) Labels: Base Sheet Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) Base Sheet Thickness: 0.07 - 0.09 mm (0.0028 - 0.0035 inch) Total Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075 inch) Continuous Forms with Labels: Base Sheet Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) Total Thickness (Rear Entry): 0.065 - 0.53 mm (0.0025 - 0.021 inch) Total Thickness (Front Entry): 0.065 - 0.79 mm (0.0025 - 0.031 inch) Over Lapping Multi-part Forms: Base Sheet Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) Total Thickness (Rear Entry): 0.13 - 0.53 mm (0.0051 - 0.021 inch) Total Thickness (Front Entry): 0.13 - 0.79 mm (0.0051 - 0.031 inch) Line Spacing: 4.23mm(1/6 inch) or programmable in increments of 0.059mm (1/432 inch)
General	Memory Buffer: 128 KB Multipart Copy Capability: 1 original + 6 copies (rear) 1 original + 9 copies (front)
Supported OS and Applications	Supported OS: Microsoft® Windows® 95/98/ME/2000/XP/Vista/8.1/10 and Windows® NT® operating system Version 4.0 Windows® 7 / 8 (32bit / 64bit) Ultimate / Enterprise / Professional Utility: EPSON Status Monitor4
Electrical Specifications	Rated Voltage: AC 100 - 240V Rated Frequency: 50 - 60 Hz Electric Power Consumption: Approx. 185 W (ISO/IEC10561 Letter pattern) Approx. 7.5 W in sleep mode
Dimensions and Weight	Dimensions (W x D x H): 700 x 378 x 363 mm Weight: 34kg
Consumables	Options: Ribbon Cartridge (Black) - C13S015505 Pull Tractor Unit - C12C800382 Serial Interface Board (No Buffer Type-B) - C12C824432 EpsonNet 10/100 Base Tx Int. Print Server - C12C824352
Options	Temperature: 5 to 35 °C Humidty: 10 to 80 % RH
Environmental Conditions (Operating)	Temperature: 5 to 35 °C Humidty: 10 to 80 % RH
Acoustic Noise	Acoustic Noise: 58 dB(A) (ISO7779 pattern)
Interface	Standard: Bi-directional parallel interface (IEEE-1284 nibble mode supported), Serial I/F, USB 2.0 (Full Speed) I/F, Optional Serial Interface Board (No Buffer Type-B)
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Printer
Connection	USB
Printer Technology	Dot Matrix Printer
