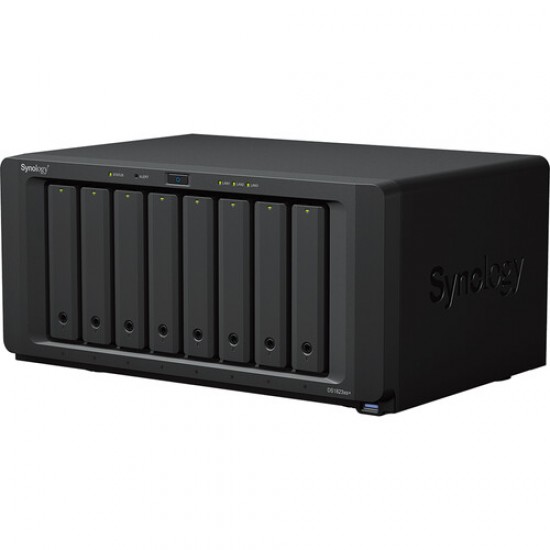

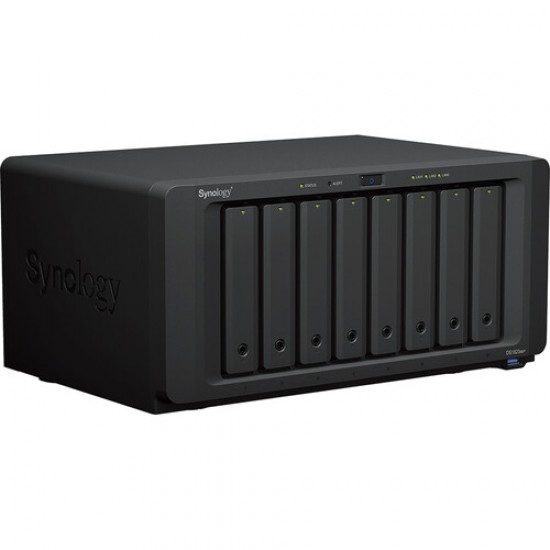

Synology DiskStation DS1823xs+ 8-Bay NAS Enclosure

Synology DiskStation DS1823xs+ 8-Bay NAS Enclosure | Synology |

Key Features

8 x 3.5" / 2.5" SATA Drive Bays
2 x M.2 2280 NVMe SSD Slots
3.35 GHz AMD Ryzen V1780B 4-Core CPU
8GB DDR4 ECC RAM
1 x 10GbE Port | 3 x 1GbE Ports
3 x USB-A 3.2 Gen 1 Ports
2 x eSATA Expansion Ports
RAID 0, 1, 5, 6, 10, F1, Basic, and JBOD
PCIe 3.0 x8/x4 Expansion Slot
Synology DSM Operating System

CPU
CPU Model	AMD Ryzen V1780B
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	4-core 3.35 (base) / 3.6 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory	8 GB DDR4 ECC SODIMM
Memory Module Pre-installed	8 GB (8 GB x 1)
Total Memory Slots	2
Maximum Memory Capacity	32 GB (16 GB x 2)
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Drive Bays	8
Maximum Drive Bays with Expansion Unit	18 (DX517 x 2)
M.2 Drive Slots	2 (NVMe)
Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
Hot Swappable Drive*
Notes	It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. The hot swappable drive feature is not supported by M.2 SSD slots. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

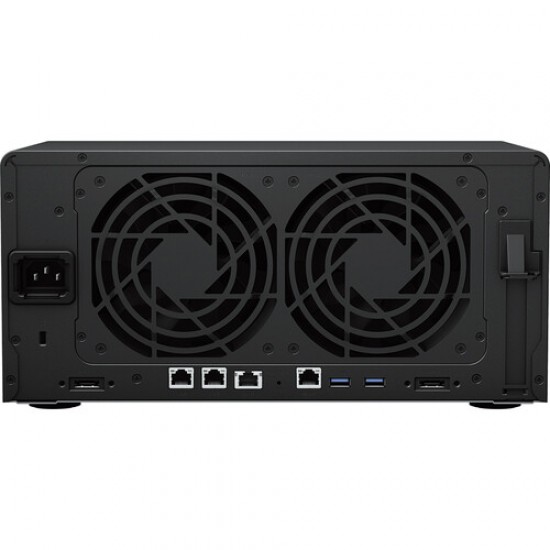

External Ports
RJ-45 1GbE LAN Port*	2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port	1
Out-of-Band Management LAN Port	1
USB 3.2 Gen 1 Port*	3
eSATA Port	2
Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
PCIe
PCIe Expansion	1 x Gen3 x8 slot (x4 link)
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance
Size (Height x Width x Depth)	166 mm x 343 mm x 243 mm
Weight	6.2 kg
Others
System Fan	120 mm x 120 mm x 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level*	23.6 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter	250 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	87.93 W (Access) 28.37 W (HDD Hibernation)
British Thermal Unit	300.23 BTU/hr (Access) 96.87 BTU/hr (HDD Hibernation)
Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification
FCC CE BSMI VCCI RCM EAC CCC KC
Warranty
5 Years
Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories
DDR4 ECC SODIMM: D4ES02-8G/D4ES01-16G Expansion Units: DX517 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 M.2 2280 NVMe SSD: SNV3410 25GbE Network Interface Card: E25G21-F2 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1 Surveillance Device License Pack

NAS
Drive bay	8-Bay
Form Factor	Tower
LAN Ports	2 Ports
Product Line	DS XS+/XS series
