Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate

Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ask For Price Out Of Stock
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate image
Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate
  • Stock: Out Of Stock
  • Brand: Ubiquiti
  • Model: UAP AC Mesh
Products Sold: 0
Product Views: 2474
RM0.00
Ex Tax: RM0.00

Ubiquiti UAP AC Mesh High-performance, 802.11ac Wave 1 access point with dual, 2x2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate

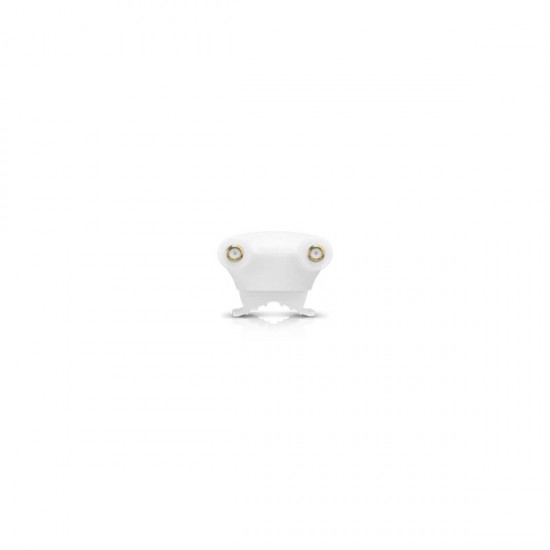

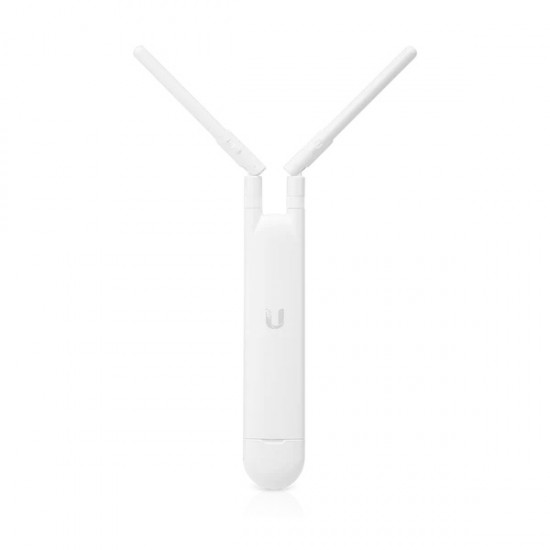

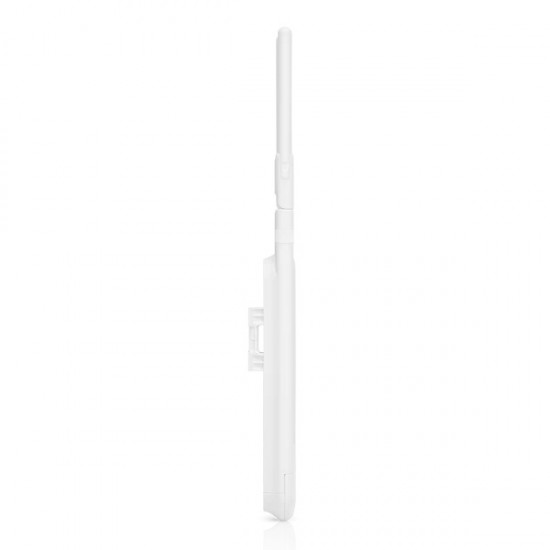

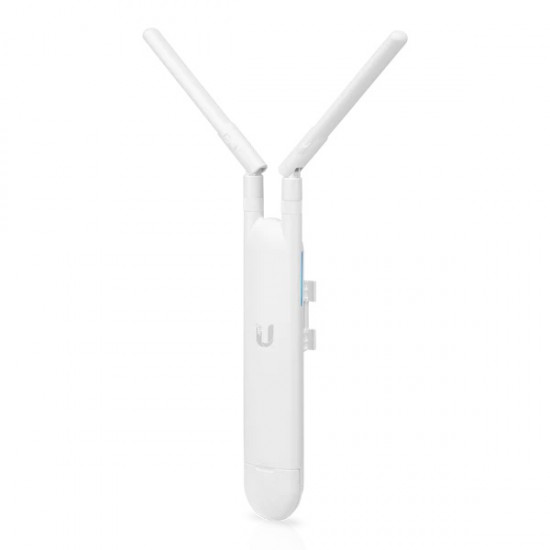

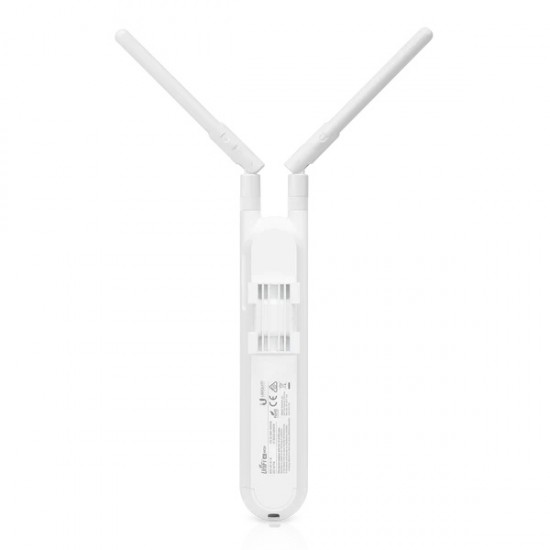

    The Access Point AC Mesh (UAP AC Mesh) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands. The UAP AC Mesh features two, omnidirectional WIFi antennas (2x2 MIMO) to provide robust and extensive wireless coverage 360° coverage, as well as (2) RP-SMA connectors that can be used in tandem with the antennae for customized pattern shaping. This access point is powered with either 802.3af PoE or 24V passive PoE and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC Mesh can be set up in minutes and fully managed with the UAP Network web application or mobile app.


    Features:

    • 802.11ac Wave 1 WiFi technology
    • Dual omnidirectional antennae with 2x2 MIMO functionality
    • 5 GHz band with an 867 Mbps throughput rate
    • 2.4 GHz band with a 300 Mbps throughput rate
    • (2) RP-SMA connectors for customized pattern shaping
    • Powered with 802.3af PoE* or 24V passive PoE

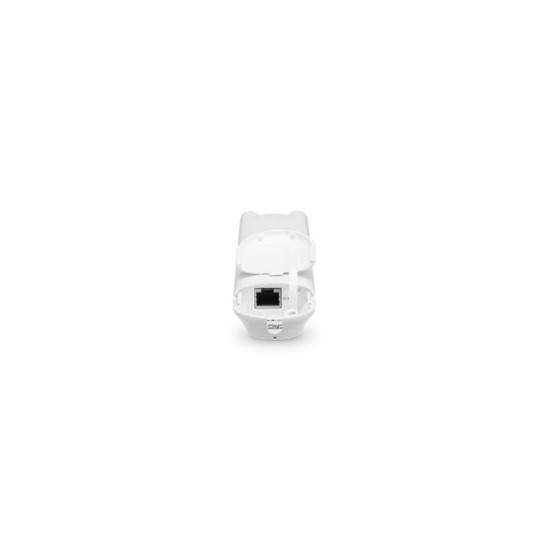

    • (1) GbE RJ45 port

Mechanical
Dimensions353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Weight152 g (5.36 oz) with Antennas
Networking Interface2x2 WiFi dual band / Ethernet Gigabit
Ports(1) 10/100/1000 Ethernet
ButtonsReset
Antennas2 Dualband antennas
Wi-Fi Standards802.11a/b/g/n/ac
Power Method24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC)
Power Supply24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption8.5W
Max TX Power20 dBm
BSSIDUp to Four per Radio
Power SaveSupported
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
CertificationsCE, FCC, IC
MountingWall/Pole/Fast-Mount (Kits Included)
Operating Temperature-30 to 70° C (-22 to 158° F)
Operating Humidity5 to 95% Noncondensing
Advanced Traffic Management
VLAN802.1Q
Advanced QoSPer-User Rate Limiting
Guest Traffic IsolationSupported
WMMVoice, Video, Best Effort, and Background
Concurrent Clients100+
Supported Data Rates (Mbps)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
