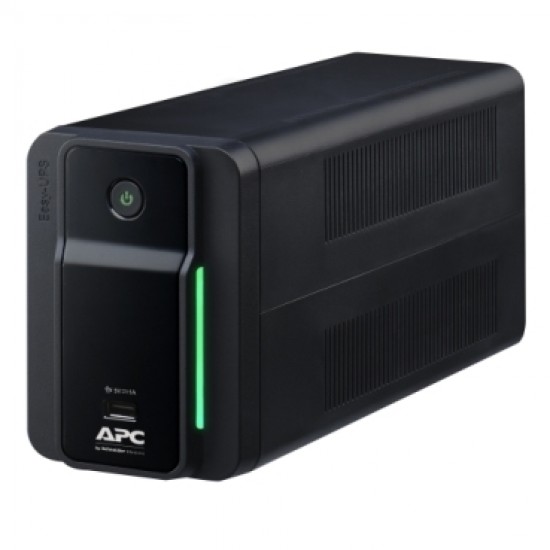

APC Easy UPS, 700VA, Tower, 230V, 2 Universal outlets, AVR, 1 USB Type A Port (BVX700LUI-MS) – APC Malaysia
- Stock: Pre-Order
- Brand: APC
- Model: BVX700LUI-MS
Products Sold: 0
Product Views: 2733
RM369.00
Ex Tax: RM369.00
AVR / UPS, APC, Back-UPS - APC Easy UPS, 700VA, Tower, 230V, 2 Universal outlets, AVR, 1 USB Type A Port (BVX700LUI-MS)
Specifications
| Main Input Voltage | 230 V AC 1 phase |
|---|---|
| Main Output Voltage | 230 V AC 1 phase |
| Rated power in W | 360 W |
| Rated power in VA | 700 VA |
| Input Connection Type | IEC 60320 C14 |
| output connection type | 2 universal |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | User manual |
| Number of battery filled slots | 0 |
|---|---|
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery capacity | 7.0 Ah |
| Battery life | 2…3 year(s) |
| Replacement battery | APCRBC110 |
| Extended runtime | 0 |
| Max runtime | 120 min |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| UPS size | WS |
| Colour | Black |
|---|---|
| height | 13.8 cm |
| Width | 9.8 cm |
| Depth | 31 cm |
| Net weight | 4.2 kg |
| mounting support | Floor |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
| Input voltage limits | 170...280 V 230 V AC |
| Cos phi | 0.51 |
| Maximum configurable power in W | 360 W |
|---|---|
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:00:01 360 W |
| Graph display | 1 |
| Half load runtime | 00:06:00 180 W |
| Maximum configurable power in VA | 700 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| product certifications | CE CB |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Equipment protection policy | Lifetime : 50000 euros |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Surge energy rate | 273 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.2 cm |
| Package 1 Width | 34.6 cm |
| Package 1 Length | 14.2 cm |
| Package 1 Weight | 4.5 kg |
| SCC14 | 10731304417610 |
| Warranty | 2 years repair or replace |
|---|
