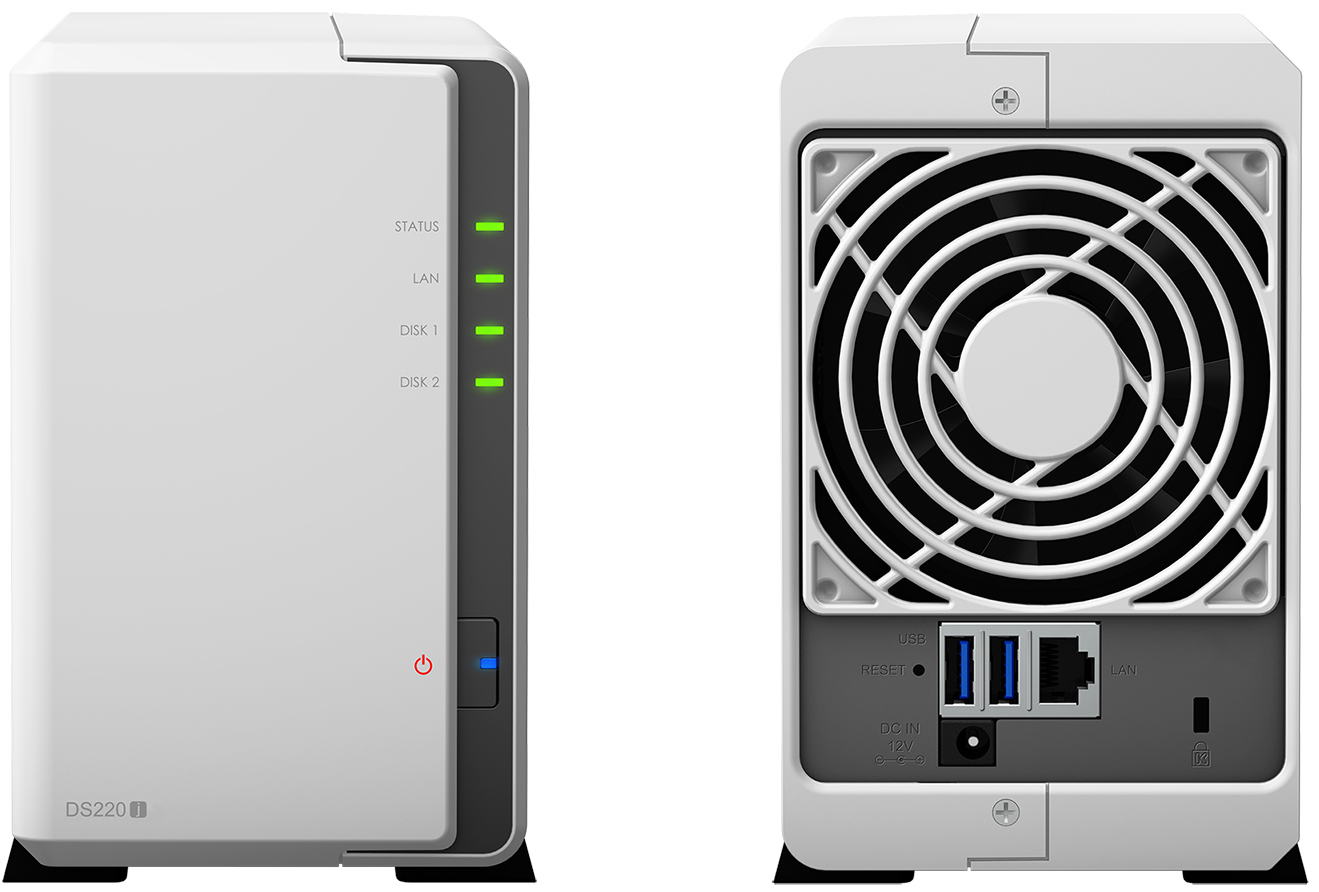

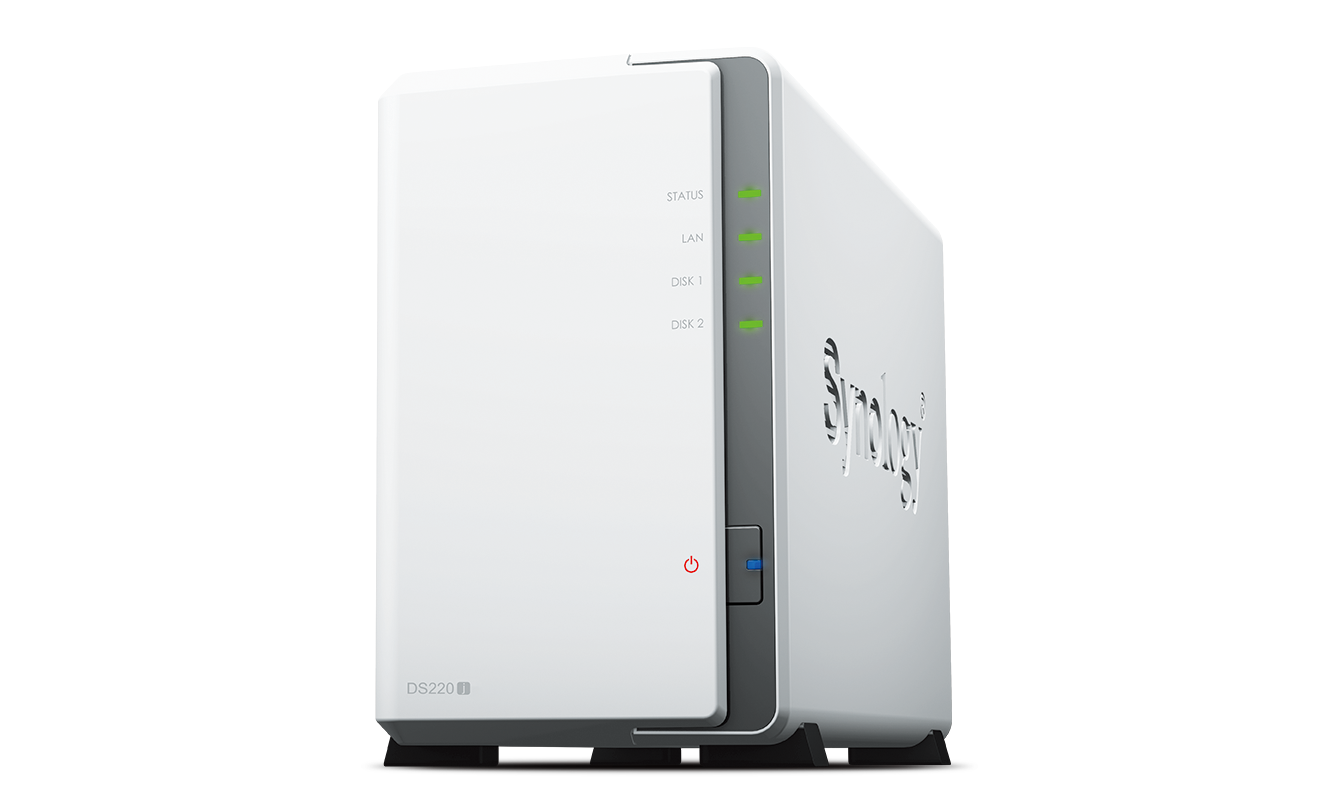

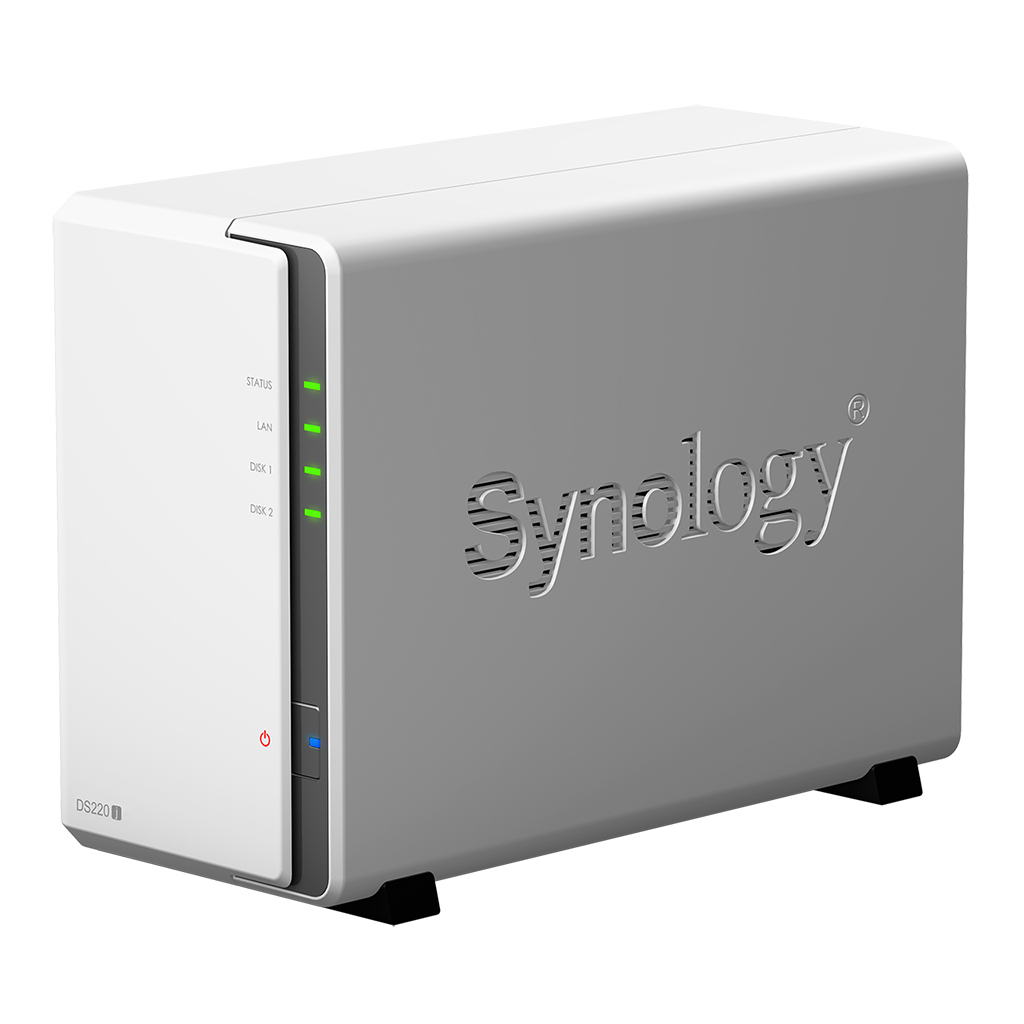

Synology DiskStation DS220j NAS Server (2 Bay, Quad Core 1.4GHz, 512 MB DDR3L, 18.2 dB)

Name: Synology DiskStation DS220j NAS Server (2 Bay, Quad Core 1.4GHz, 512 MB DDR3L, 18.2 dB)
Brand: Synology
SKU: PRD-202607-0008
Price: 979 MYR
Availability: PreOrder

Synology DiskStation DS220j NAS Server (2 Bay, Quad Core 1.4GHz, 512 MB DDR3L, 18.2 dB) - Key Features2 x 3.

MYR 979.00 reference price — project pricing on quotation

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Form factor	Tower
Drive bays	2
CPU	Realtek RTD1296CPU Quantity1CPU Architecture64-bitCPU Freque
RAM (installed/max)	512 MB DDR4 non-ECCNotesSynology reserve
Network ports	RJ-45 1GbE LAN

Full specifications ↓

Product details

Key Features 2 x 3.5/2.5" SATA HDD/SSD Drive Bays 1.4 GHz Realtek RTD1296 Quad-Core 512MB of DDR4 RAM 1 x Gigabit Ethernet Port 2 x USB 3.0 Type-A Ports RAID 0, 1, Basic, Hybrid, and JBOD Up to 112 MB/s Reads and Writes Hardware Encryption Engine Synology DiskStation Manager OS CPU
CPU Model	Realtek RTD1296
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	4-core 1.4 GHz
Hardware Encryption Engine	✓
Memory
System Memory	512 MB DDR4 non-ECC
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays	2
Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA HDD (with optional 2.5" Disk Holder) 2.5" SATA SSD (with optional 2.5" Disk Holder)
Hot Swappable Drive*	-
Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port	1
USB 3.2 Gen 1 Port*	2
Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
Internal Drives	EXT4
External Drives	EXT4 EXT3 FAT NTFS HFS+ exFAT
Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
Size (Height x Width x Depth)	165 mm x 100 mm x 225.5 mm
Weight	0.88 kg
Others
System Fan	92 mm x 92 mm x 1 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode Low-power Mode
Brightness Adjustable Front LED Indicators	✓
Power Recovery	✓
Noise Level*	18.2 dB(A)
Scheduled Power On / Off	✓
Wake on LAN / WAN	✓
Power Supply Unit / Adapter	60 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	12.46 W (Access) 5.06 W (HDD Hibernation)
British Thermal Unit	45.52 BTU/hr (Access) 17.27 BTU/hr (HDD Hibernation)
Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification
EAC CCC KC FCC CE BSMI VCCI RCM
Warranty
2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 1 Quick Installation Guide X 1
Optional Accessories
VisualStation: VS360HD Surveillance Device License Pack Disk Holder: Type C

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Delivery & professional installation
Configuration & migration
Manufacturer warranty handling
Annual maintenance & managed services (MSP)

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Compute Specs
Form factor	Tower

NAS Specs
Drive bays	2
CPU	Realtek RTD1296CPU Quantity1CPU Architecture64-bitCPU Freque
RAM (installed/max)	512 MB DDR4 non-ECCNotesSynology reserve
Network ports	RJ-45 1GbE LAN
Drives included	No
