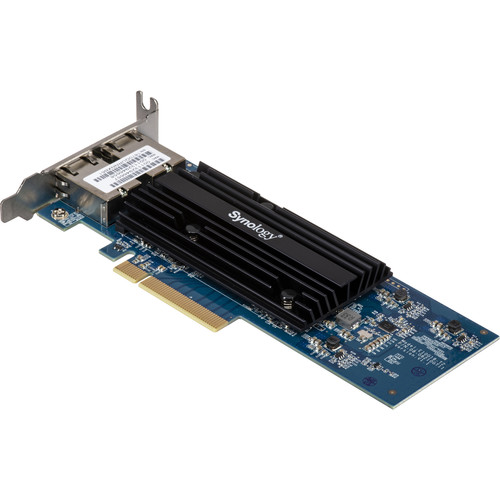

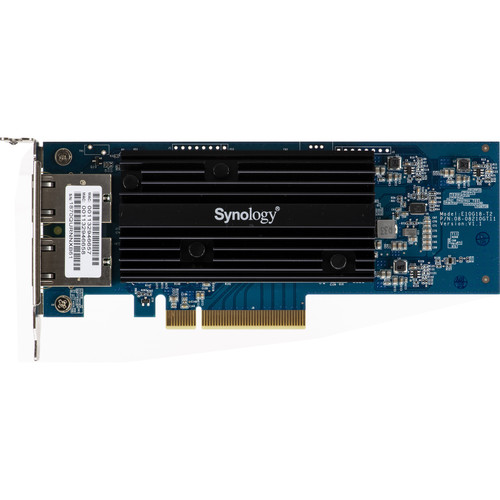

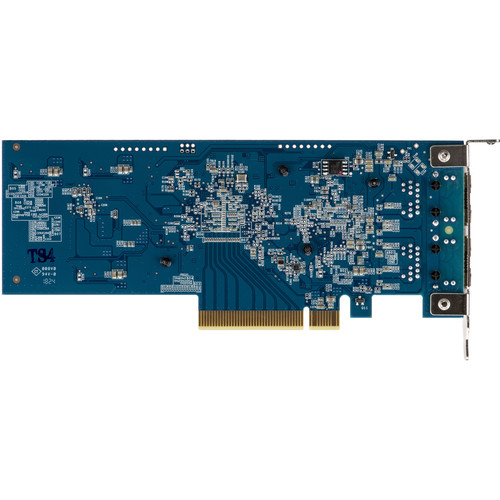

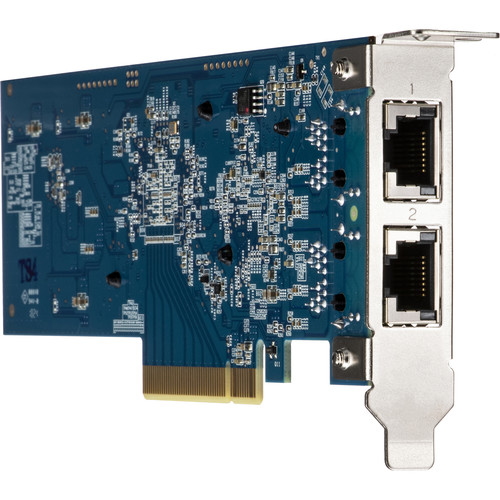

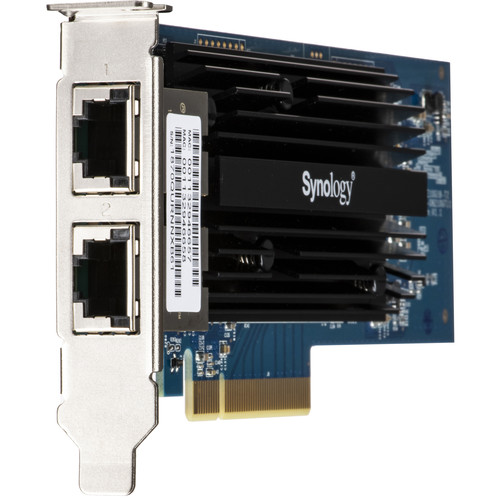

Synology E10G18-T2 Dual-Port 10 Gb/s PCIe Expansion Card
Buy Synology E10G18-T2 Dual-Port 10 Gb/s PCIe Expansion Card, Synology from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Serv...
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Interface | PCIe 3.0 x8 |
| Ports | 2 x 10 Gb/s RJ45 Ethernet |
| Speed | 10 Gbps |
| Total Data Rate | Up to 20 Gb/s |
| Size | 170.6 mm x 68.9 mm x 13.6 mm |
Product details
Key Features
- 2 x 10 Gb/s RJ45 Ethernet Ports
- PCIe 3.0 Interface
- Designed for Select Synology NAS Servers
- Up to 20 Gb/s Total Data Rate
- Supports Link Aggregation & Jumbo Frames
- TCP Segmentation Offloading
- TCP/UDP/IP Checksum Offloading
General | ||
|---|---|---|
| Host Bus Interface | PCIe 3.0 x8 | |
| Bracket Height | Low Profile and Full Height | |
| Size (Height x Width x Depth) | 170.6 mm x 68.9 mm x 13.6 mm | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Network | ||
| IEEE Specification Compliance |
| |
| Data Transfer Rates | 10 Gbps | |
| Network Operation Mode | Full Duplex | |
| Supported Features |
| |
Compatibility | ||
Applied Models | ||
| ||
| Notes | DSM version requirement: 6.2.1-23824 or later version | |
