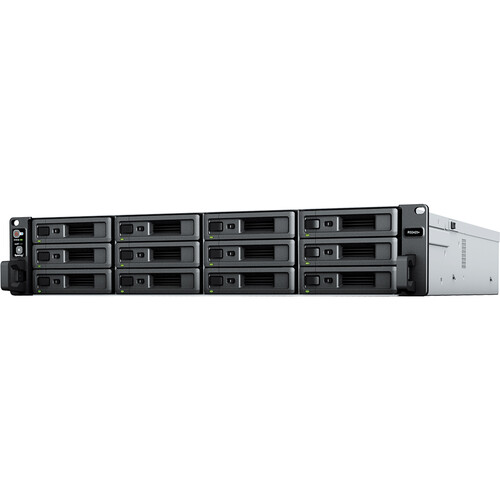

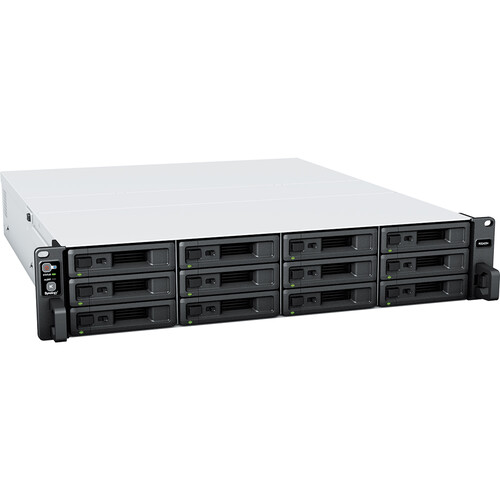

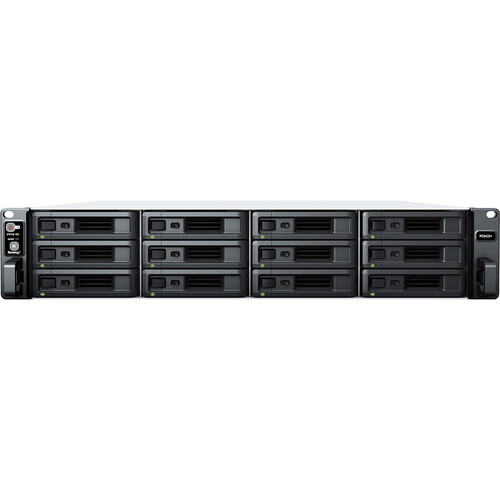

Synology RackStation RS2423RP+ 12-Bay NAS Enclosure

Name: Synology RackStation RS2423RP+ 12-Bay NAS Enclosure
Brand: Synology
SKU: PRD-202607-5477

Buy Synology RackStation RS2423RP+ 12-Bay NAS Enclosure, Synology from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Form factor	Rackmount

Full specifications ↓

Product details

Key Features

12 x 3.5" / 2.5" SATA Drive Bays
3.35 GHz AMD Ryzen V1780B 4-Core CPU
8GB DDR4 ECC RAM
1 x 10GbE Port | 2 x 1GbE Ports
2 x USB-A 3.2 Gen 1 Ports
1 x Mini-SAS HD Expansion Port
RAID 0, 1, 5, 6, 10, Hybrid, Basic, JBOD
PCIe 3.0 x8/x4 Expansion Slot
Single Power Supply
Synology DSM Operating System


CPU
CPU Model	AMD Ryzen V1780B
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	4-core 3.35 (base) / 3.6 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory	8 GB DDR4 ECC UDIMM
Memory Module Pre-installed	8 GB (8 GB x 1)
Total Memory Slots	2
Maximum Memory Capacity	32 GB (16 GB x 2)
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Drive Bays	12
Maximum Drive Bays with Expansion Unit	24 (RX1223RP x 1)
Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD
Hot Swappable Drive*
Notes	It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

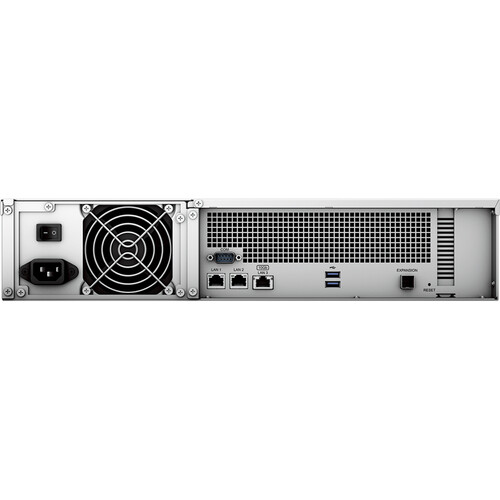

External Ports
RJ-45 1GbE LAN Port*	2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port	1
USB 3.2 Gen 1 Port*	2
Expansion Port	1
Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion	1 x Gen3 x8 slot (x4 link)
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance
Form Factor (RU)	2U
Size (Height x Width x Depth)	RS2423+ :88 mm x 482 mm x 552 mmRS2423RP+ :88 mm x 482 mm x 578 mm
Weight	RS2423+ :11.5 kgRS2423RP+ :11.9 kg
Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKS-02)
Notes	The rail kit is sold separately
Others
System Fan	60 mm x 60 mm x 3 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level*	RS2423+ :52.3 dB(A)RS2423RP+ :56.2 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter	RS2423+ :500 WRS2423RP+ :350 W
Redundant Power Supply	RS2423+ :-RS2423RP+ :
AC Input Power Voltage	100 V to 240 V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	RS2423+ :119.95 W (Access) 46.21 W (HDD Hibernation) RS2423RP+ :114.86 W (Access) 42.33 W (HDD Hibernation)
British Thermal Unit	RS2423+ :409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation) RS2423RP+ :392.18 BTU/hr (Access) 144.53 BTU/hr (HDD Hibernation)
Notes	For more information on how power consumption is measured, refer to this article. Noise Level Testing Environment: A Synology NAS loaded with Synology 480GB SAT5200-480G solid-state drive(s) in idle state. Each G.R.A.S. type 40AE microphone is placed at a 1-meter distance from the front and rear of a Synology NAS. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification
FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Warranty
3-year hardware warranty, extendable to 5 years with EW202
Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
RS2423+ : Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1 RS2423RP+ : Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories
DDR4 ECC UDIMM: D4EU01-8G/D4EU01-16G Expansion Units: RX1223RP 3.5" SATA HDD: HAT5300/HAT3300 2.5" SATA SSD: SAT5210 M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G21-F2 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1 Rail Kit Sliding: RKS-02 Surveillance Device License Pack
Notes	Certain items may not be available in your location. Please contact your local distributors for more information. All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
