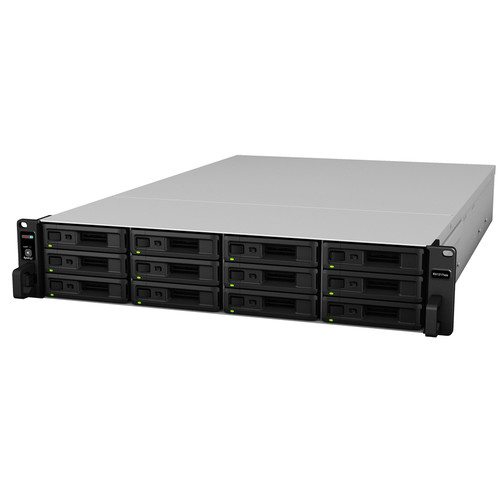

Synology RX1217sas 12-Bay 2.5"/3.5" SAS/SATA Expansion Chassis for RS18017xs+
Buy Synology RX1217sas 12-Bay 2.5"/3.5" SAS/SATA Expansion Chassis for RS18017xs+, Synology from Printer Bullet - Everything for office. Fast & Free Home Delive...
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Rackmount |
Product details
Key Features
- 12 x 2.5"/3.5" Drive Bays
- Supports SATA or SAS Drive Interfaces
- 2 x SAS Ports
- Four 60mm Cooling Fans
- Two 500W Power Supplies
Applied Models | ||
|---|---|---|
| Supports creating volumes across different units |
| |
| Notes |
| |
Storage | ||
| Drive Bays | 12 | |
| Compatible Drive Type* (See all supported drives) |
| |
| Maximum Internal Raw Capacity | 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) | |
| Hot Swappable Drive* | ✓ | |
| RAID Management through Synology DSM | ✓ | |
| Notes | It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. | |

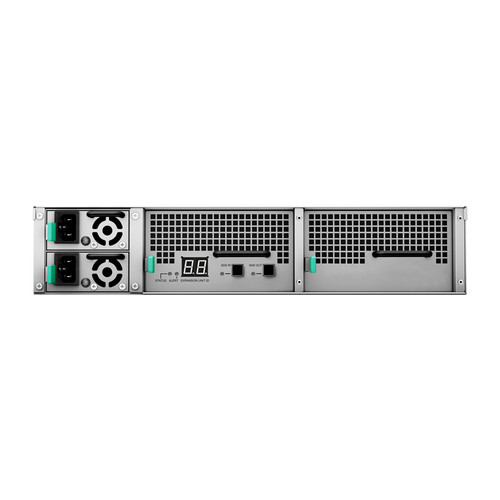

External Ports | ||
| SAS IN-port | 1 | |
| SAS OUT-port | 1 | |
Appearance | ||
| Size (Height x Width x Depth) | 88 mm x 430.5 mm x 692 mm | |
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 724 mm | |
| Weight | 18 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
Power | ||
| Power Recovery | Synchronized with the Synology RackStation | |
| Power Supply Unit / Adapter | 500 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 132.7 W (Access) 89.3 W (HDD Hibernation) | |
| British Thermal Unit | 452.79 BTU/hr (Access) 304.7 BTU/hr (HDD Hibernation) | |
| Redundant Power Supply (for RP model) | ✓ | |
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). | |
Temperature | ||
| Operating Temperature | 5°C to 35°C (40°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Others | ||
| System Fan | 60 mm x 60 mm x 4 pcs | |
| Easy Replacement System Fan | ✓ | |
| Noise Level* | 60.9 dB(A) | |
Certification | ||
| ||
Warranty | ||
| 5 Years | ||
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment & Packaging | ||
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
Optional Accessories | ||
