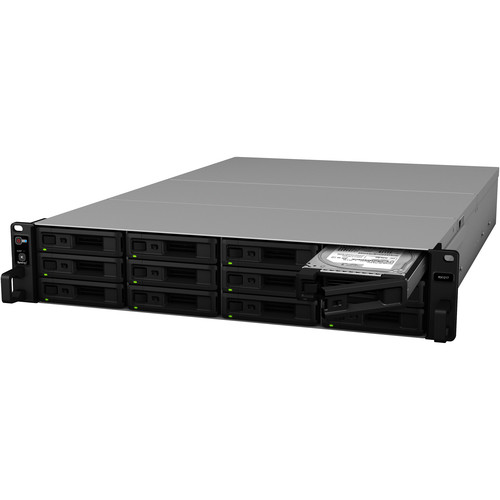

Synology RX1217RP 12-Bay Storage Expansion Unit
Synology RX1217RP 12-Bay Storage Expansion Unit - Key Features12 x 3.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Rackmount |
Product details
Key Features
- 12 x 3.5"/2.5" SATA III Drive Bays
- Designed for Synology's RackStations
- Two Redundant 500W Power Supplies
- Infiniband Port
- Hot Swappable Drive Bays
- Three 80mm Cooling Fans
Applied Models | ||
|---|---|---|
| Supports creating volumes across different units |
| |
| Notes |
| |
Storage | ||
| Drive Bays | 12 | |
| Compatible Drive Type* (See all supported drives) |
| |
| Maximum Internal Raw Capacity | 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) | |
| Hot Swappable Drive* | ✓ | |
| RAID Management through Synology DSM | ✓ | |
| Notes | It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. | |
External Ports | ||
| Expansion Port | 1 | |
Appearance | ||
| Size (Height x Width x Depth) | 88 mm x 430.5 mm x 664 mm 88 mm x 430.5 mm x 692 mm (for RP model) | |
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 696 mm 88 mm x 482 mm x 724 mm (for RP model) | |
| Weight | 12.7 kg 13.4 kg (for RP model) | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
Power | ||
| Power Recovery | Synchronized with the Synology RackStation | |
| Power Supply Unit / Adapter | 500 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 68.60 W (Access) 27.45 W (HDD Hibernation) 71.3 W (Access) (for RP model) 31.2 W (HDD Hibernation) (for RP model) | |
| British Thermal Unit | 234.23 BTU/hr (Access) 93.73 BTU/hr (HDD Hibernation) 243.52 BTU/hr (Access) (for RP model) 106.53 BTU/hr (HDD Hibernation) (for RP model) | |
| Redundant Power Supply (for RP model) | ✓ | |
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). | |
Temperature | ||
| Operating Temperature | 5°C to 35°C (40°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Others | ||
| System Fan | 80 mm x 80 mm x 3 pcs | |
| Easy Replacement System Fan | ✓ | |
| Noise Level* | 54.6 dB(A) 54.2 dB(A) (for RP model) | |
| Notes | Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | |
Certification | ||
| ||
Warranty | ||
| 5 Years | ||
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment & Packaging | ||
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
Optional Accessories | ||
