Ubiquiti Networks Networks Networks Router (ER-X) – Ubiquiti Malaysia

Ubiquiti Ubiquiti Networks Networks Networks Router (ER-X) Malaysia

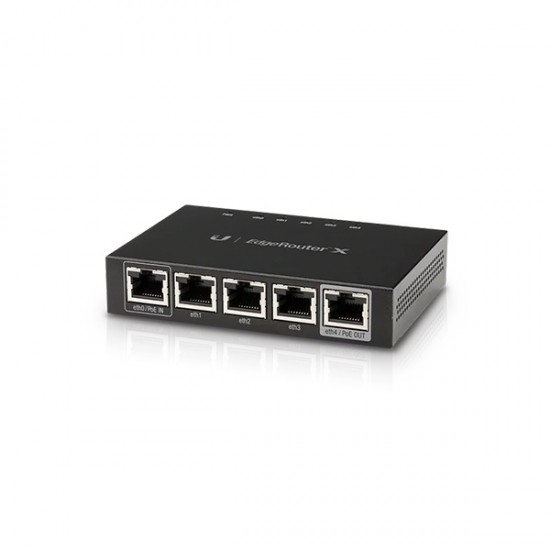

Ubiquiti introduces the EdgeRouter™ X, part of the EdgeMAX® platform. The EdgeRouter X combines carrier‑class reliability with excellent price‑to‑performance value in an ultra‑compact form factor. The ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option* is available to support a single airMAX® device*

EdgeRouter
Dimensions	110 x 75 x 22 mm (4.33 x 2.95 x 0.87")
Weight	175 g (6.17 oz)
Max. Power Consumption	5W
Power Input	12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
Power Supply	External AC/DC Adapter
Supported Voltage Range	9 to 26VDC
Buttons	Reset
LEDs	Power, Ethernet 0-4
Processor	Dual-Core 880 MHz, MIPS1004Kc
Memory	256 MB DDR3 RAM
Code Storage	256 MB NAND
Certifications	CE, FCC, IC
Wall Mount	Yes
Operating Temperature	-10 to 45° C (14 to 113° F)
Operating Humidity	10 to 90% Noncondensing
Networking Interfaces
Data/PoE Input Port	(1) 10/100/1000 RJ45 Port
Data Port	(3) 10/100/1000 RJ45 Ports
Data/PoE Passthrough Port	(1) 10/100/1000 RJ45 Port
