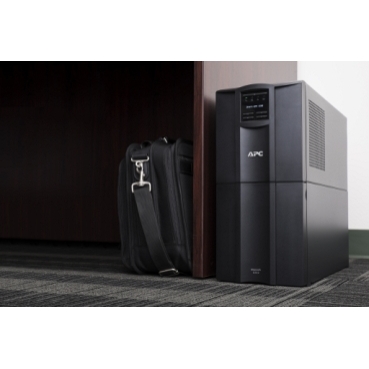

APC Smart-UPS, Line Interactive, 2200VA, Tower, 230V, 8x IEC C13+2x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD (SMT2200IC)
APC · UPS

APC Smart-UPS, Line Interactive, 2200VA, Tower, 230V, 8x IEC C13+2x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD (SMT2200IC)

SpecificationsOverview

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Capacity 2200VA VA
Full specifications ↓

Product details

Specifications

Overview
PresentationIntelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead timeUsually in Stock

Main
Main Input Voltage230 V
Other Input Voltage220 V
240 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
Rated power in W1980 W
Rated power in VA2200 VA
Input Connection TypeIEC 320 C20
Schuko CEE 7 / EU1-16P
BS1363A British

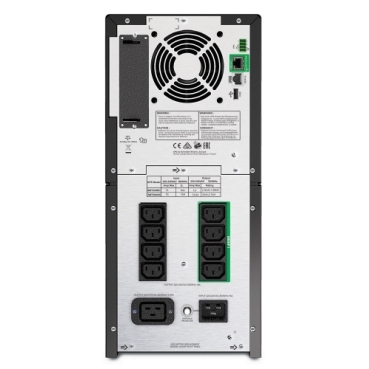

output connection type8 IEC 320 C13
2 IEC Jumpers
1 IEC 320 C19
Number of rack unit0U
Number of cables1
Battery typeLead-acid battery
Provided equipmentUSB cable

Complementary
Software packageSmartConnect software for remote power monitoring feature availability varies by terms of use

Batteries & Runtime
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Extended runtime0
Number of battery filled slots0
Number of battery free slots0
Battery recharge time3 h
Number of battery replacement quantity1
Battery life3…5 year(s)
Replacement batteryRBC55
action_new_window
Battery charger power260 W rated

General
Number of power module filled slots0
Number of power module free slots0
product web sub-familyCloud-enabled monitoring
RedundantNo

Physical
ColourBlack
height43.5 cm
Width19.7 cm
Depth54.4 cm
Net weight50.2 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeNot rack-mountable
Two post mountable0
USB compatibleYes

Input
Input voltage limits151...302 V adjustable
160...286 V
Network frequency50/60 Hz +/- 3 Hz auto-sensing

Output
Harmonic distortionLess than 5 %
Maximum configurable power in VA2200 VA
Maximum configurable power in W1980 W
Transfer time6 ms typical : 10 ms maximum
UPS typeLine interactive
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz sync to mains

Conformance
product certificationsCE
EAC
RCM
VDE
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental
Acoustic level45 dBA
Heat dissipation275 Btu/h
Operating altitude0...10000 ft
ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0.00…15240.00 m
Relative humidity0…95 %
Storage Relative Humidity0…95 %

Communications & Management
control panelMultifunction LCD status and control console
Emergency power offYes
Free slots1
Communication port supportSmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
AlarmAlarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering
Surge energy rate365 J
Noise suppressionFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height69.9 cm
Package 1 Width76.2 cm
Package 1 Length
