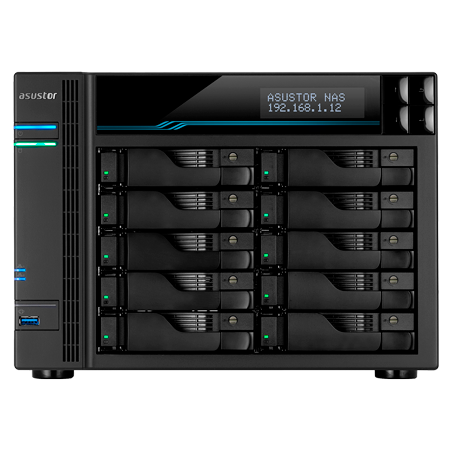

ASUSTOR AS6510T NAS Server (10-Bay, 2.1GHZ QC, 8GB, 2X10GBE, 2NVME)

Name: ASUSTOR AS6510T NAS Server (10-Bay, 2.1GHZ QC, 8GB, 2X10GBE, 2NVME)
Brand: Asustor
SKU: PRD-202607-5227

Buy ASUSTOR AS6510T NAS Server (10-Bay, 2.1GHZ QC, 8GB, 2X10GBE, 2NVME), Asustor from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Qu...

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Form factor	Tower

Full specifications ↓

Product details

Hardware Specifications
CPU	CPU Model	Intel ATOM C3538
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad Core 2.1GHz
Memory	Memory	8GB SO-DIMM DDR4
	Memory Module Pre-installed	8GB (1 x 8GB)
	Total Memory Slots	2
	Memory Expandable up to	64GB (2x 32GB) Support mixed capacity
	Flash Memory	4GB eMMC
Storage	HDD	10 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
	M.2 Drive Slots (SSD Cache)	2x M.2 PCIe (NVMe) / SATA *M.2 2280, 2260, 2242.
	Maximum Internal Raw Capacity	180 TB (18 TB HDD X 10, Capacity may vary by RAID types)
	Maximum Drive Bays with Expansion Unit	18
	Maximum Raw Capacity with Expansion Units	324 TB (18 TB HDD X 18, Capacity may vary by RAID types)
External Ports	Expansion	USB 3.2 Gen 1 x 2
	Network	10 Gigabit Ethernet x 2(10G/1G/100M); 2.5 Gigabit Ethernet x 2
	HDMI Output	N/A
Others	System Fan	120mm x 2
	LCD Panel
	Power Supply Unit / Adapter	250W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK
Operation	Power Consumption	76.8W (Operation); 41.1W (Disk Hibernation);
	Noise Level	22dB (HDD idle)
	Operation Temperature	0°C~40°C (32°F~104°F)
	Humidity	5% to 95% RH
Size and Weight	Size	215.5(H) x 293(W) x 230(D) mm
	Weight	6.4 (kg) / 14.1 (lb)
