Asustor · NAS & Storage

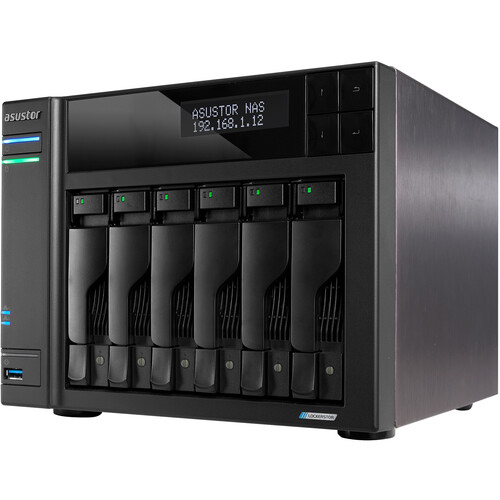

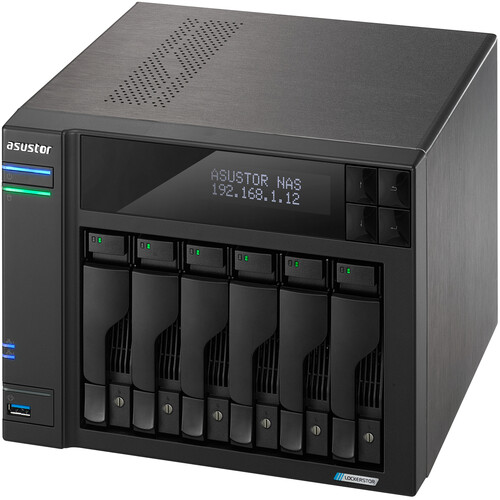

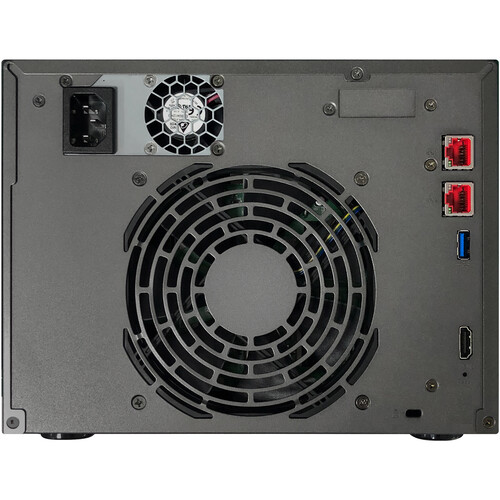

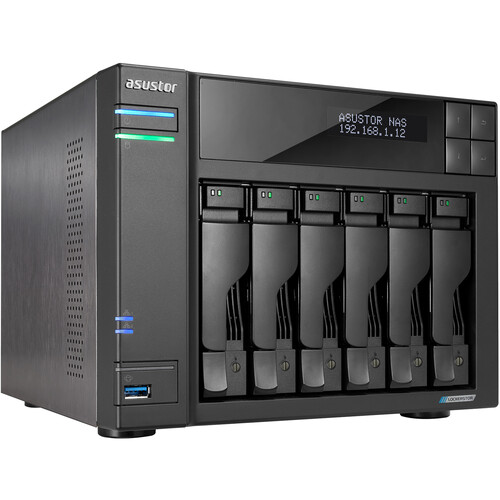

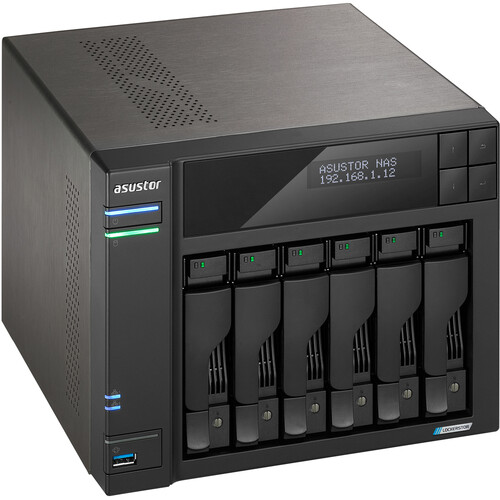

ASUSTOR AS6706T NAS SERVER (6-BAY, 8GB EMMC, QUAD-CORE 2.0GHZ, TOWER)
Key Features6 x 2.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Tower |
Product details
Key Features
- 6 x 2.5/3.5" SATA Drive Bays
- 4 x NVMe M.2 2280 Slots
- 2.0 GHz Intel Celeron N5105 Quad-Core
- 8GB of DDR4 RAM
- 2 x 2.5 Gigabit Ethernet Ports
- 2 x USB 3.2 Gen 2 Type-A | HDMI 2.0b
- RAID 0, 1, 5, 6, 10, and JBOD
- Up to 590 MB/s Read Speeds
- Up to 562 MB/s Write Speeds
- 1 x PCIe Expansion Slot
Hardware Specifications | ||
|---|---|---|
| CPU Model | Intel Celeron N5105 | |
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.0GHz (burst up 2.90 GHz) | |
| Memory | 8GB SO-DIMM DDR4 Compatibility | |
| Memory Module Pre-installed | 8GB (1x 8GB) | |
| Total Memory Slots | 2 | |
| Memory Expandable up to | 16GB (2x 8GB) Installation Guide
| |
| Flash Memory | 8GB eMMC | |
| Drive Bays | 6 | |
| M.2 Drive Slots | 4 Installation Guide | |
| Compatible Drive Type Compatibility |
| |
| Maximum Drive Bays with Expansion Unit | 14 | |
| Supports Hot Swappable Drives | ||
| Expansion | 2x USB 3.2 Gen 2 (10Gbps) | |
| Network | 2x 2.5 Gigabit Ethernet (2.5G/1G/100M) | |
| PCIe Expansion Slots | 1x for optional expansion 10 GbE card Installation Guide | |
| Multimedia Output | 1x HDMI 2.0b | |
| System Fan | 1x 120mm | |
| LCD Panel | ||
| Infrared Receiver | ||
| Power Supply Unit / Adapter | 250W x1 | |
| Input Power Voltage | 100V to 240V AC | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA | |
| Warranty | 3 Years | |
| Power Consumption | 48.5 W (Operation); 27.7 W (Disk Hibernation); 0.81 W (Sleep Mode) | |
| Noise Level | 18.1dB (HDD idle) | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Humidity | 5% to 95% RH | |
| Size | 185.5 (H) x 233 (W) x 230 (D) mm | |
| Weight | 4.4 kg / 9.7 lb Package Contents | |
