AVANSIA EXPERT DUPLEX (AV1H0000BD)

Product details

General features

• Reverse transfer printing, using color dye sublimation and resin monochrome retransfer
• Dual-sided printing (standard)
• Over the edge printing
• Using color dye sublimation and resin monochrome retransfer
• 600 dpi print head (23.6 dots/mm)
• Bitmap: 24 bits, 16 million colors
• Printout: Y/M/C 256 level
• 64 MB of memory (RAM)

Printing performances

• Full card:




  • Single side (YMCK): 25 s/card - 144 cards/hour
  • Dual side (YMCKK): 37.5 s/card - 96 cards/hour

Additional encoding modules

• Available modules:




  • Magnetic stripe encoder ISO 7811
  • Dual contact and contacless encoder
• Encoder connectivity: internal USB hub, 1 port available
• Encoding options can be combined
• Factory installed or installed on site for contact and contactless encoders

Interfaces

• USB (1.0, 1.1, 2.0, 3.0), cable supplied
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

Safety

• RFID locking key
• Support for security lock (Kensington® type)
• Centralized locking system to secure access to blank cards, ribbon and film (optional)
• IPSec encrypted networking security

Card management and specifications

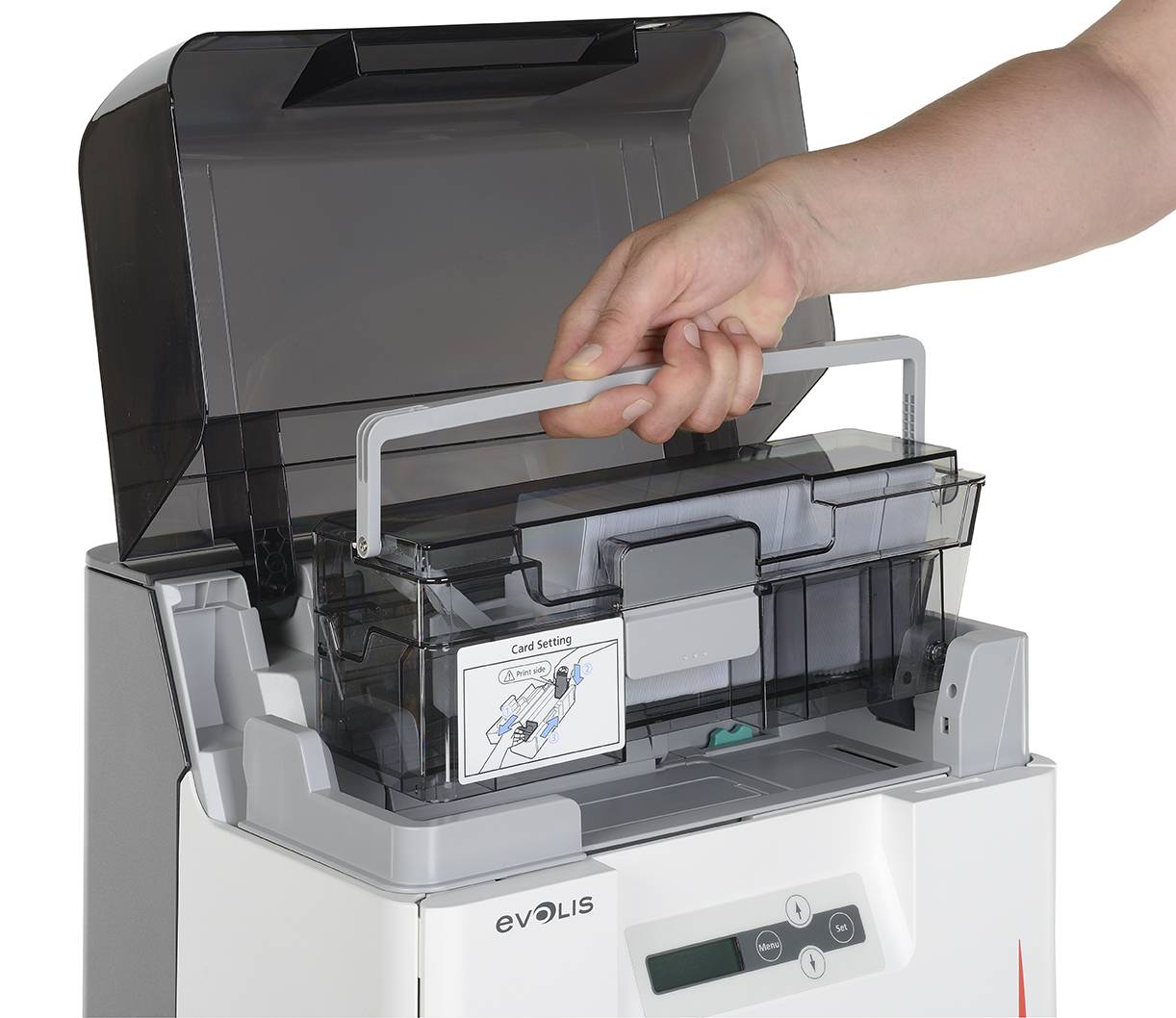

• Card feeder: 250 cards (0.76 mm – 30 mil)
• Card output hopper: 250 cards (0.76 mm – 30 mil)
• Reject tray capacity: 30 cards (0.76 mm – 30 mil)
• Card thickness: 0.76 mm (30 mil), manual adjustment
• Card types:
  • PVC cards
  • Composite PVC cards
  • PET-F cards
  • PET-G cards
  • Polycarbonate cards (PC)
  • ABS cards
• Card format: ISO CR80 - ISO 7810 (53.98 x 85.60 mm –  3.370” x 2.125”)



Evolis High Trust® Ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.
Ribbon capacity:

• Clear transfer film: 500 prints/roll
• Holographic transfer film: 400 prints/roll
• YMCK: 500 prints/roll
• YMCKK: 400 prints/roll
• YMCKI ribbon (for smart cards, magnetic stripes and signature panels): 400 prints/roll
• YMCKH ribbon (for non PVC cards): 400 prints/roll
• YMCFK ribbon (F = UV ink): 400 prints/roll

Software

• Compatible with Windows (32/64 bits): XP SP3, Vista,W7, W8, W10

• Delivered with cardPresso XXS for designing and editing badges

  • Internal database (unlimited records)
  • Windows® (from XP onwards)

Display

• Two-line LCD display and LED status indicator
• Printer graphical notifications: empty input hopper, empty/low level ribbon alert...

Certifications and statement of compliance

• RoHS
• CE, FCC, UL, IEC

Size and weight

• Dimensions (H x W x D): 436 x 340 x 297 mm (17.16” x 13.38” x 11.69”)
• Weight: 20 kg (44.09 lbs)



Warranty

• 3 years for printer, lifetime warranty on print head

1 Time measured from the card’s insertion detected by the sensor until the flip engine stops during ejection / 2 Option available upon request / 3 Delievered with printers that are upgraded with encoding options / 4 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons
