Brother · Printers

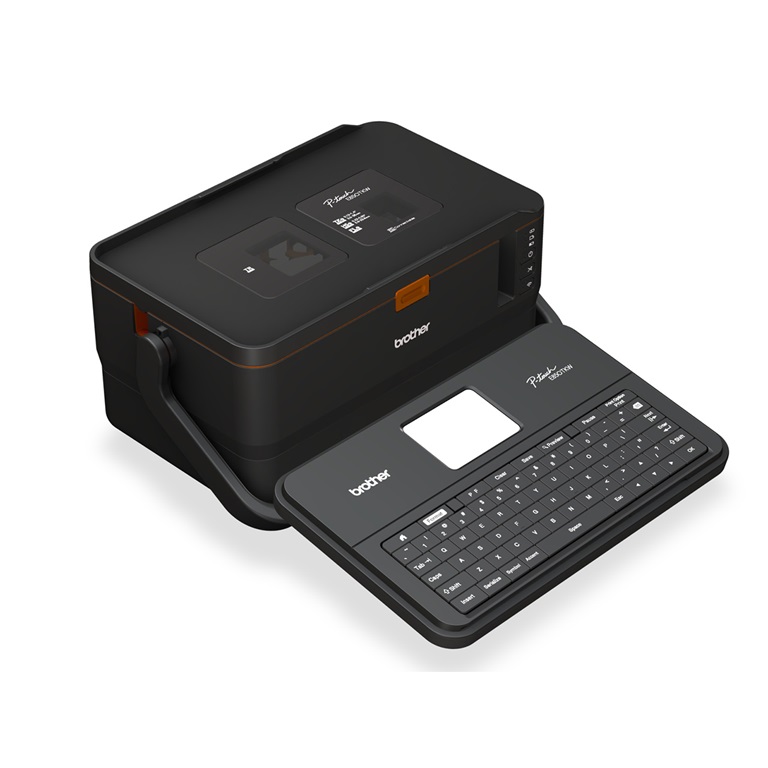

Brother PTE850TKW LI Label Printer (Auto Cut, Hulf Cut, Speed 60mm/sec, 360 dpi, PC Connectable)
Model Brother PTE850TKW LI Label Printer Size Dimensions Approx.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Resolution | 360 dpi |
| Speed | 60 mm/sec |
| Print Method | Thermal Transfer |
| Dimensions | 338 mm (W) x 188 mm (D) x 173 mm (H) |
| Weight | 4.6 kg |
Product details
| Model | Brother PTE850TKW LI Label Printer |
| Size | Dimensions Approx. 338 mm (W) x 188 mm (D) x 173 mm (H) (including keybord LCD unit) Weight Approx. 4.6 kg (including keybord LCD unit, excluding Li-ion Battery) |
| Printing | Method Thermal Transfer Compatible tubes *1 Inner diameter: Φ2.5 mm - Φ6.5 mm Thickness: 0.5 mm Material: PVC Print head 454 dot/360 dpi (for labels) 86 dot/360 dpi (for tubes) High resolution mode: 360 dpi x 720 dpi *2 High speed mode: 360 dpi x 180 dpi *2 High quality mode: 360 dpi x 360 dpi *3 Print height Label: max. 32 mm (when using 36 mm tape) *4 Tube: max. 6 mm (when using Φ6.5 mm tube) *4 Print speed Label: AC Adapter: max. 60 mm/sec. (High resolution mode: max. 30 mm/sec.) *2 (High speed mode: max. 80 mm/sec.) *2 (High quality mode: 20 mm/sec.) *3 Battery: 20 mm/sec. - 60 mm/sec. (High quality mode: 20 mm/sec.) *3 Actual print speed varies depending on the conditions. Tube: max. 40 mm/sec. Actual print speed varies depending on the conditions. Cassette Brother TZe tape cassette (3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm widths) Brother HSe tube cassette (5.8 mm, 8.8 mm, 11.7 mm, 17.7 mm, 23.6 mm widths) Brother FLe label cassette (21 mm x 45 mm) Brother TR ribbon cassette (12 mm width) No. of lines ▪ TZe tape cassette 36 mm tape: 17 lines; 24 mm tape: 13 lines; 18 mm tape: 10 lines; 12 mm tape: 6 lines; 9 mm tape: 4 lines; 6 mm tape: 3 lines; 3.5 mm tape: 1 line ▪ HSe tube cassette 23.6 mm tape: 12 lines; 17.7 mm tape: 10 lines; 11.7 mm tape: 6 lines; 8.8 mm tape: 4 lines; 5.8 mm tape: 2 lines ▪ PVC tube Φ6.5 mm tube: 2 lines; Φ6.0 mm tube: 2 lines; Φ5.0 mm tube: 2 lines; Φ4.0 mm tube: 2 lines; Φ3.5 mm tube: 2 lines; Φ3.0 mm tube: 2 lines; Φ2.5 mm tube: 1 line |
| Memory (local files) | File storage max. 99 files |
| Power Supply | Adapter AC adapter (AD9100ESA): 24 V AC 100-240 V 50/60 Hz Battery (Optional) Li-ion Battery (PA-BT-4000LI): 14.4 V Auto Power-off Li-ion Battery (PA-BT-4000LI): 30 min AC adapter (AD9100ESA): Off |
| Interface | USB Version 2.0 Full Speed Wi-Fi ▪ Wireless Direct: IEEE 802.11n ▪ Ad-Hoc mode: IEEE 802.11b ▪ Infrastructure mode: IEEE 802.11b/g/n ▪ WPS 2.0 |
| * Features, Package Content and Specifications are subject to change without prior notification.* | |
Supplied & supported by PrinterBullet
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — all services →
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Resolution | 360 dpi |
| Speed | 60 mm/sec |
| Print Method | Thermal Transfer |
| Dimensions | 338 mm (W) x 188 mm (D) x 173 mm (H) |
| Weight | 4.6 kg |
| Memory | 99 files |
| Print Height Label | 32 mm |
| Tape Widths | 3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm |
