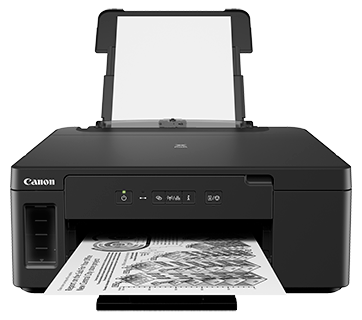

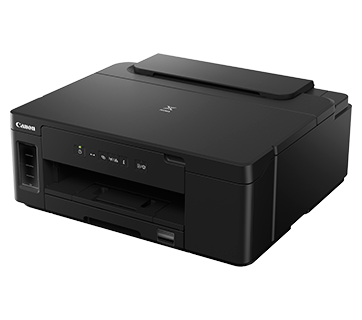

| Model | Canon Color Inkjet PIXMA GM2070 Printer |
| Print Head / Ink | Type
Permanent (Replaceable)
Number of Nozzles
Black: 640 nozzles (Optional Colour: 1152 nozzles)
Ink Bottles / Cartridges

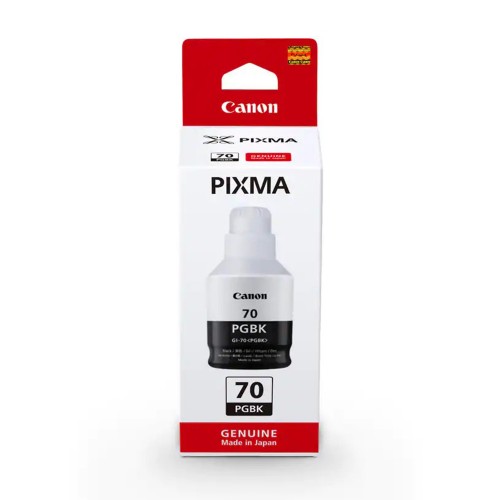

GI-70 (Pigment Black)
Optional: CL-741, CL741XL
Maximum Printing Resolution
600 (horizontal)*1 x 1200 (vertical) dpi |
| Print Speed | Based on ISO/IEC 24734
Click here for Summary Report
Click here for Document Print and Copy Speed Measurement Conditions
Document (ESAT/Simplex)
Approx. 13.0ipm (black) / 6.8ipm (colour)
Document (ESAT/Duplex)
Approx. 4.8ipm (black) / 2.8ipm (colour)
Document (FPOT Ready / Simplex)
Approx. 9sec (black) / 14sec (colour) |
| Printable Width | Up to 203.2mm (8")
Borderless: Up to 216mm (8.5") |
| Printable Area | Borderless Printing*3
-
Bordered Printing
#10 Envelope/DL Envelope:
Top 8 mm / Bottom 12.7 mm / Right 5.6 mm / Left 5.6 mm
LTR / LGL:
Top 3 mm / Bottom 5 mm / Right 6.3 mm / Left 6.4 mm
Others:
Top 3 mm / Bottom 5 mm / Right 3.4 mm / Left 3.4 mm
Bordered Auto 2-Sided Printing
Top / Bottom margin: 5 mm,
Left / Right margin: 3.4 mm (LTR: Left: 6.4 mm, Right: 6.3 mm) |
| Support Media | Rear Tray
Plain Paper (64-105g/m²)
High Resolution Paper (HR-101N)
Envelope
Cassette
Plain Paper (64-105g/m²) |
| Paper Size | Rear Tray
A4, A5, B5, LTR, LGL, Envelopes (DL, COM10), Card Size (91x55 mm)
[Custom size]
width 55 - 215.9 mm, length 89 - 676 mm
Cassette
A4, A5, B5, LTR
[Custom size]
width 148.0 - 215.9 mm, length 210 - 297 mm |
| Paper Handling (Maximum Number) | Rear Tray
Plain Paper (A4, 64g/m²) = 100
High Resolution Paper (HR-101N) = 80
Cassette
Plain Paper (A4, 64-105g/m²) = 250 |
| Support Media for Auto 2-sided printing | Type
Plain Paper
Size
A4, A5, B5, LTR |
| Network | Protocol
TCP/IP, SNMP
Wired LAN
Network Type
IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)
Data Rate
10M/100Mbps (Auto switchable)
Wireless
Network Type
IEEE802.11n / IEEE802.11g / IEEE802.11b
Frequency Band
2.4GHz
Channel*4
1-13
Range
Indoor 50m (Depends on the transmission speed and conditions)
Security
WEP64/128bit
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Direct Connection (Wireless LAN)
Available |
| Printing Solutions | Canon Print Service
for Android
Available
PIXMA Cloud Link
(from smartphone/tablet)
Available
Canon PRINT Inkjet/SELPHY
(for iOS/for Android)
Available |
| System Requirements | Windows 10 / 8.1 / 7 SP1
(Operation can only be guaranteed on a PC with a pre-installed Windows 7 or later) |
| General Specifications | Language
32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese
Interface
Hi-Speed USB 2.0
PictBridge (Wireless / Wired LAN)
Available |
| Operating Environment | Temperature
5 - 35°C
Humidity
10 - 90% RH (no dew condensation)
Recommended Environment*7
Temperature
15 - 30°C
Humidity
10 - 80% RH (no dew condensation)
Storage Environment
Temperature
0 - 40°C
Humidity
5 - 95% RH (no dew condensation)
Quiet Mode
Available |
| Acoustic Noise (PC Print) | Plain Paper (A4, B/W)*8
Approx. 52.0dB(A)
Power
AC 100-240V, 50/60Hz
Power Consumption
OFF
Approx. 0.3 W
Standby (scanning lamp is off)
USB connection to PC
Approx. 0.8W
Standby (all ports connected, scanning lamp is off)
[EU only - for ErP Lot 26 regulation]
Approx. 1.6W
Time to enter Standby mode
[EU only - for ErP Lot 26 regulation]
Approx. 1min 29sec.
Printing*9
USB connection to PC
Approx. 13W
Typical Electricity Consumption (TEC)*10
0.1 kWh |
| Environment | Regulation
RoHS (EU, China), WEEE (EU)
Duty Cycle
Up to 15,000 pages/month |
| Dimension (WxDxH) | Dimension (WxDxH)
Factory Configuration
Approx. 403 x 369 x 166 mm
Output/ADF trays extended
Approx. 403 x 695 x 356 mm
Weight
Approx. 6.0kg |
| Page Yield | Plain Paper (A4 pages)
(ISO/IEC 24712 test file)*11
Standard:
GI-70 PGBK*12: 6,000
Economy:
GI-70 PGBK: 8,300
Optional:
CL-741: 180
CL-741XL:400 |
| * Prices, Features, Package Content and Specifications are subject to change without prior notification.* |
