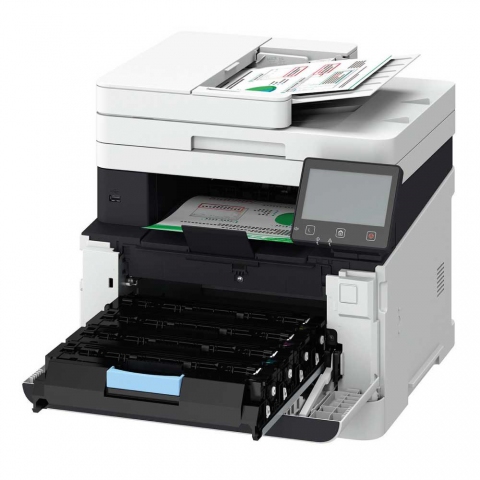

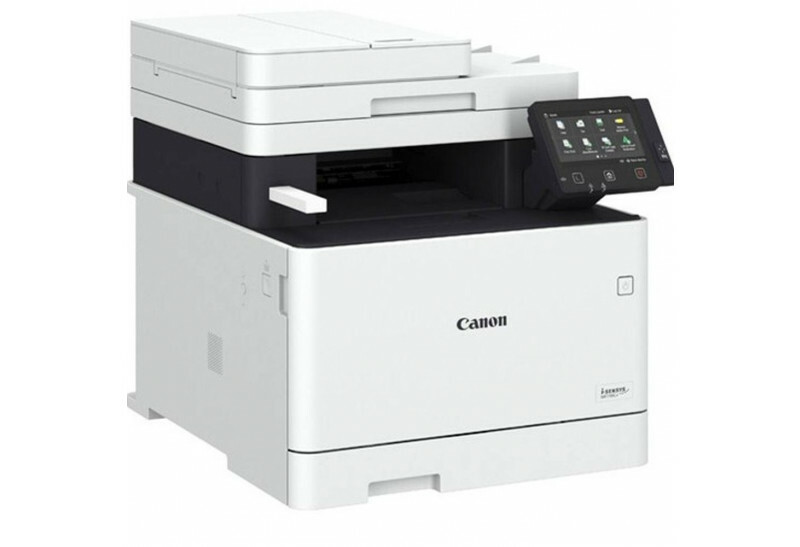

Canon MF643Cdw Color Laser Printer (Print, Scan, Copy, Up to 21ppm, Auto Duplex)
Canon MF643Cdw Color Laser Printer (Print, Scan, Copy, Up to 21ppm, Auto Duplex) - Model Canon Color Laser MF643Cdw AIO Printer Print Printing Method ColourLa...
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Functions | Print / Scan / Copy |
| Print speed | 21 ppm |
| Duplex | Automatic |
| Technology | Laser |
| Colour output | Colour |
Product details
| Model | Canon Color Laser MF643Cdw AIO Printer |
| Printing Method Colour Laser Beam Printing Print Speed A4 21 / 21 ppm (Mono / Colour) Letter 22 / 22 ppm (Mono / Colour) 2-Sided 12 / 12 ppm (Mono / Colour) Print Resolution 600 x 600 dpi Print Quality with Image Refinement Technology 1,200 × 1,200 dpi (eq.) Warm up Time (From Power On) 13 sec or less First Print Out Time (FPOT) A4 Approx. 10.4 / 10.5 sec (Mono / Colour) Letter Approx 10.3 / 10.3 sec (Mono / Colour) Recovery Time (From Sleep Mode) 6.1 sec or less Print Language UFR II, PCL 6 Auto Duplex Print Standard Available Paper Size for Auto Duplex Print A4, B5, Letter, Legal, Executive, Foolscap, Indian Legal Print Margins 5mm - top, bottom, left and right (Envelope: 10mm) Print Features Poster, Booklet, Watermark, Page Composer, Toner Saver Supported File Format for USB Direct Print Supported File Format: JPEG, TIFF, PDF |
|
| Copy | Copy Speed A4 A4 21 / 21 ppm (Mono / Colour) Letter 22 / 22 ppm (Mono / Colour) Copy Resolution 600 x 600dpi First Copy Out Time (FCOT) A4 Approx. 11.4 / 13.4 sec (Mono / Colour) Letter Approx. 11.2 / 13.1 sec (Mono / Colour) Maximum Number of Copies Up to 999 copies Reduce/Enlargement 25 - 400% in 1% increments Copy Features Frame Erase, Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy |
| Scan | Scan Resolution Optical Platen glass: up to 600 x 600dpi Feeder: up to 300 x 300dpi Driver Enhanced Up to 9,600 x 9,600 dpi Scan Type Colour Contact Image Sensor Maximum Scan Size Platen Glass Up to 216.0 x 297mm Feeder Up to 216.0 x 355.6mm Scan Speed*1 1-Sided: 26.1 ipm (mono), 13.3 ipm (colour) Colour Depth 24-bit Pull Scan Yes, USB and Network Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network Scan To USB (via USB Host 2.0) Yes Scan To Cloud MF Scan Utility Scan Driver Compatibility TWAIN, WIA |
| Send | SEND Method SMB, Email, FTP Colour Mode Full Color, Grayscale, Monochrome Scan Resolution 300 x 600pi File Format JPEG, TIFF, PDF, Compact PDF, PDF (OCR) |
| Paper Handling | Paper Handling Auto Document Feeder (ADF) 50 sheets (80g/m2) Available Paper Size for DADF A4, B5, A5, Letter, Legal, Statement (Min. 128 x 139.7mm to Max. 216.0 x 355.6mm) Paper Input (based on 80g/m2) Standard Cassette 250 sheets Multi-Purpose Tray 1 sheet Optional Paper Feeder N/A Maximum Paper Input Capacity 251 sheets Paper Output 100 sheets Paper Sizes Cassette A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal Custom (Min. 76.2 x 127.0mm to Max. 216.0 x 355.6mm) Multi-Purpose Tray A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card Envelope: COM10, Monarch, C5, DL Custom (Min. 76.2 x 127.0mm to Max. 216.0 x 355.6mm) Optional Paper Feeder N/A Paper Types Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope Paper Weight ADF 50 to 105g/m2 Cassette / Optional Paper Feeder 60 to 200g/m2 Multi-Purpose Tray 60 to 200g/m2 |
| Connectivity & Software | Standard Interfaces Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T Wireless Wi-Fi 802.11b/g/n (Infrastructure mode, WPS easy Setup, Direct Connection) Near Field Communication (NFC) N/A Network Protocol LPD, RAW, WSD-Print (IPv4,IPv6) Scan Email, SMB, WSD-Scan(IPv4, IPv6), FTP TCP/IP Application Services Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4,IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6) Management SNMPv1, SNMPv3 (IPv4,IPv6) Network Security Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC Wireless WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) One-Push Wireless Configuration Wi-Fi Protected Setup (WPS) Other Features Department ID, Secure Print, Application Library Mobile Solution Canon PRINT Business, Canon Print Service, Google Cloud Print™, Apple® AirPrint®, Mopria® Print Service Address Book LDAP Compatible Operating Systems*2 Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008 Mac® OS X 10.9.5 & up*3, Linux*3 Software Included Printer driver, Scanner driver, MF Scan Utility, Toner Status |
| General | Device Memory 1 GB LCD Display WVGA Colour LCD 5.0" Touch Screen Display Dimensions (W x D x H) 451 x 460 x 413mm Weight 20.5 kg Power Consumption Maximum 850W or less Average (During Copy) Approx. 370W Average (During Standby) Approx. 11W Average (During Sleep) Approx. 0.8W (USB/ LAN / Wi-Fi) Noise Levels*4 During Operation Sound Pressure Level: 51dB Sound Power Level: 69.4dB During Standby Sound Pressure Level: Inaudible Sound Power Level: 43dB Operating Environment Temperature 10 - 30°C Humidity 20% - 80% RH (no condensation) Power Requirements AC 220-240 V (±10%), 50/60 Hz (±2Hz） Toner Cartridge*5 Standard Cartridge 054 BK: 1,500 pages (bundled: 1,500 pages) Cartridge 054 C/M/Y: 1,200 pages (bundled: 680 pages) High Cartridge 054H BK: 3,100 pages Cartridge 054H C/M/Y: 2,300 pages Monthly Duty Cycle*6 30,000 pages |
| Toner Cartridges | Toner: CRG 054 C/ M/ Y (1,200 pages) / 054 BK (1,500 pages) / 054H C/ M /Y (2,300 pages) 054H BK (3,100 pages) |
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Functions | Print / Scan / Copy |
| Print speed | 21 ppm |
| Duplex | Automatic |
| Technology | Laser |
| Colour output | Colour |
