Epson LQ-680Pro Dot Matrix Printer (24-pin, up to 413cps (10cpi), 1 5 copies, Parallel

Name: Epson LQ-680Pro Dot Matrix Printer (24-pin, up to 413cps (10cpi), 1 5 copies, Parallel
Brand: Epson
SKU: PRD-202607-0619

Buy Epson LQ-680Pro Dot Matrix Printer (24-pin, up to 413cps (10cpi), 1 5 copies, Parallel , Epson from Printer Bullet - Everything for office. Fast & Free Home...

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Technology	Dot Matrix

Full specifications ↓

Product details

Model	Printer LQ-680Pro Dot Matrix printer
Printing Technology	Print Method: Impact dot matrix Control Panel: LQ-680Pro: 7 switches, 10 LEDs Print Direction: Bi-directional with logic seeking Number of Pins in Head: 24 pins Control Code: ESC/P2 & IBM 2390 Plus
Print Speed	High Speed Draft: 10 cpi: 413 cps Draft: 15 cpi: 465 cps 12 cpi: 372 cps 10 cpi: 310 cps (Condensed) 20 cpi: 310 cps (Condensed) 17 cpi: 264 cps Letter Quality: 15 cpi: 155 cps 12 cpi: 124 cps 10 cpi: 103 cps (Condensed) 20 cpi: 206 cps (Condensed) 17 cpi: 175 cps
Reliability	MVBF: 20 million lines (Except print head) MTBF: 10000 POH (25% duty cycle) Printhead life: 400 million strokes/wire
Print Characteristics	Character Sets: 1 legal character set, 14 international character sets, 13 character code tables (Standard), Italic, PC437, PC850, PC860, PC861, PC863, PC865, Abicomp, BRASCII, Roman 8, ISO Latin1, PC858, ISO 8859-15 Bitmap Fonts: EPSON Draft, EPSON Roman, EPSON Sans Serif, EPSON Courier, EPSON Prestige, EPSON Script, EPSON Script C, EPSON OCR-B, EPSON Orator, EPSON Orator-S Scalable Fonts: EPSON Roman, EPSON Sans Serif, EPSON Roman T, EPSON Sans Serif H Barcode: EAN-13, EAN-8, lnterleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostNet
Paper Path	Manual Insertion: Front in, Front out Push Tractor: Rear in, Front out Cut Sheet Feeder: Rear in, Front out
Paper Media	Cut Sheet (Single Sheet): Width: 90-304.8mm ( 3.5" -12.0") *1 Length: 70 - 420 mm (2.8" - 22.0") Thickness: 0.065 - 0.19mm ( 0.0025-0.0074") Cut Sheet (Multi-part Forms): Thickness: 0.12-0.46mm (0.0047"- 0.018") Envelopes: Thickness: 0.16 - 0.52mm (0.0063" - 0.0205") (Total) Continuous Paper (Single Sheet): Width: 101.6 - 304.8mm ( 4" - 12.0") Length: 76.2 - 420 mm (3" - 22.0") Thickness: 0.065 - 0.19mm ( 0.0025 - 0.0074") Continuous Paper (Multi-part Forms): Thickness: 0.12 - 0.46mm ( 0.0047 - 0.018") Continuous Forms with Labels: Base Sheet Thickness: 0.07 - 0.09mm (0.0028' - 0.0035") Total Sheet Thickness: 0.16 - 0.19mm (0.0063" - 0.0075")
General	Memory Buffer: 64 KB Multipart Copy Capability: 1 original + 5 copies
Supported OS and Applications	Supported OS: Windows 95 / 98 / 2000 / Me / XP / Vista / 7 / 8 / 8.1 / 10 / NT 4.0 Utility: EPSON Remote! (MS-DOS environment only) Status Monitor 3 (Windows 95 / 98 / 2000 / NT 4.0)
Electrical Specifications	Rated Voltage: AC 220 - 240V Rated Frequency: 50 - 60 Hz Electric Power Consumption: Approx. 42W (ISO/IEC 10561 letter pattern)
Dimensions and Weight	Dimensions (W x D x H): 497 x 387 x 230 mm Weight: 9.4kg
Consumables	Ribbon Cartridge Black: Approx. 2 million characters (LQ 10cpi, 48 dots/character) - C13S015508
Options	Options: Cut Sheet Feeder - C12C806872 Serial Interface Board-No buffer Type B - C12C824432 Ethernet 10/100 Base TX Int. Print Server - C12C824352
Acoustic Noise	Acoustic Noise: Approx. 55dB (A) (ISO 7779 pattern)
Interface	Standard: Centronics -type 8-bit parallel interface (IEEE-1284 Nibble mode) Optional: Expansion slot (Optional Type B interfaces)
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Delivery & professional installation
Configuration & migration
Manufacturer warranty handling
Annual maintenance & managed services (MSP)

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Technology	Dot Matrix

Compare similar

Related products

Epson C13S015508 Ribbon Cartridge (For LQ-2500+/2550/LQ-670/680/...

Epson

MYR 38.00

Compatible Epson LQ680 Black Fabric Printer Ribbon

Epson

MYR 11.30

Epson LW-1000P Label Printer (9,12,18,24,36mm, Auto full/hulf Cu...

Epson

Quote on request

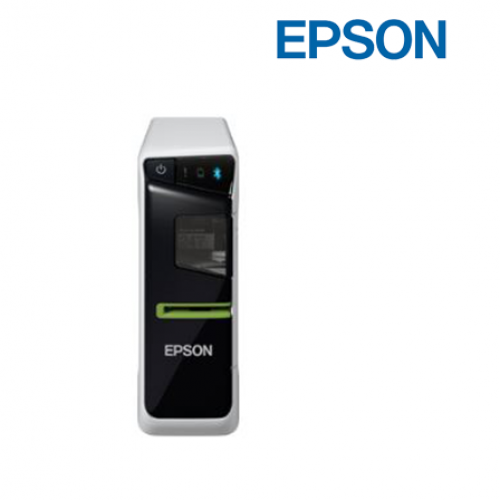

Epson LW-600P Label Printer (,12,18,24mm Tape, Speed 15mm/sec, A...
