Epson · Printers

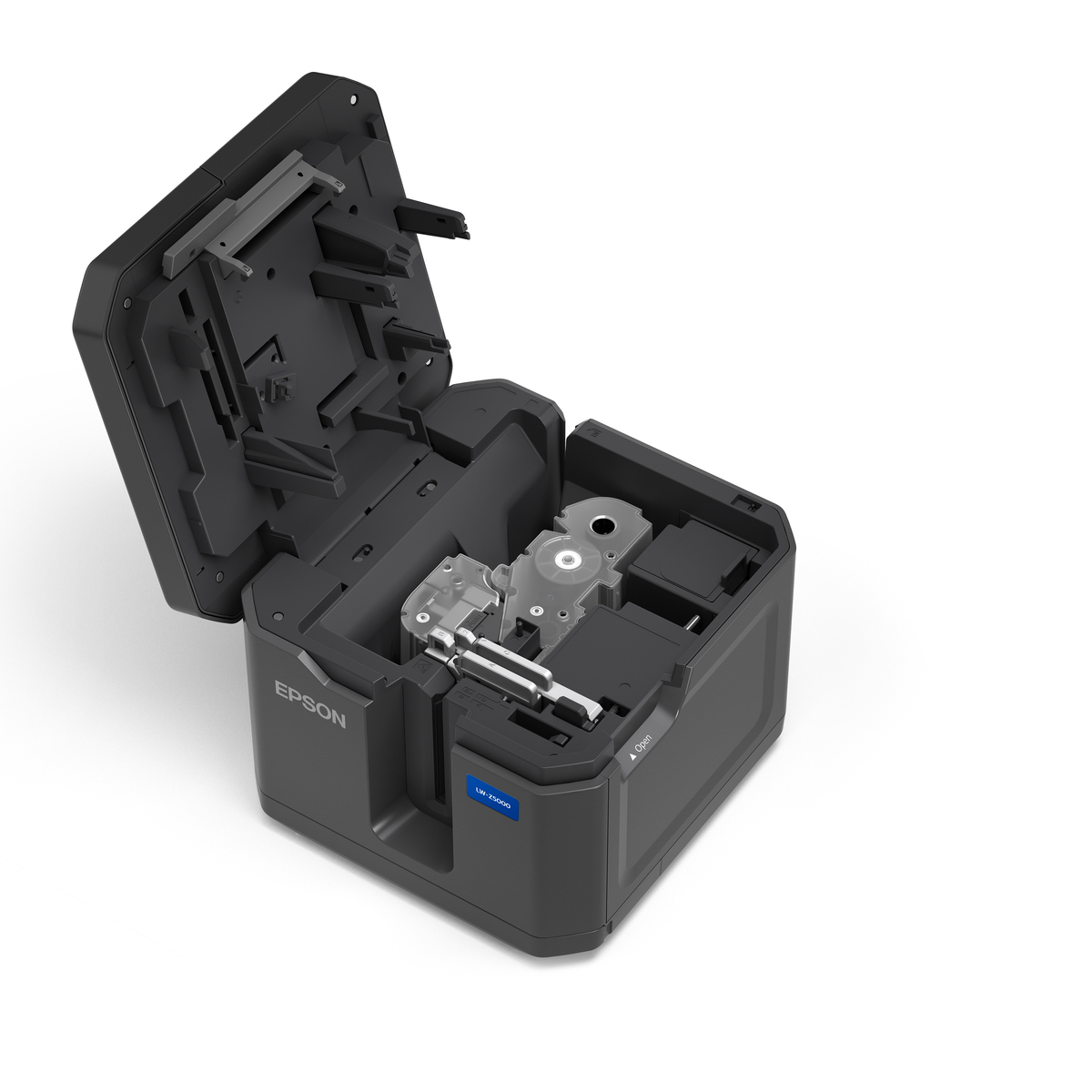

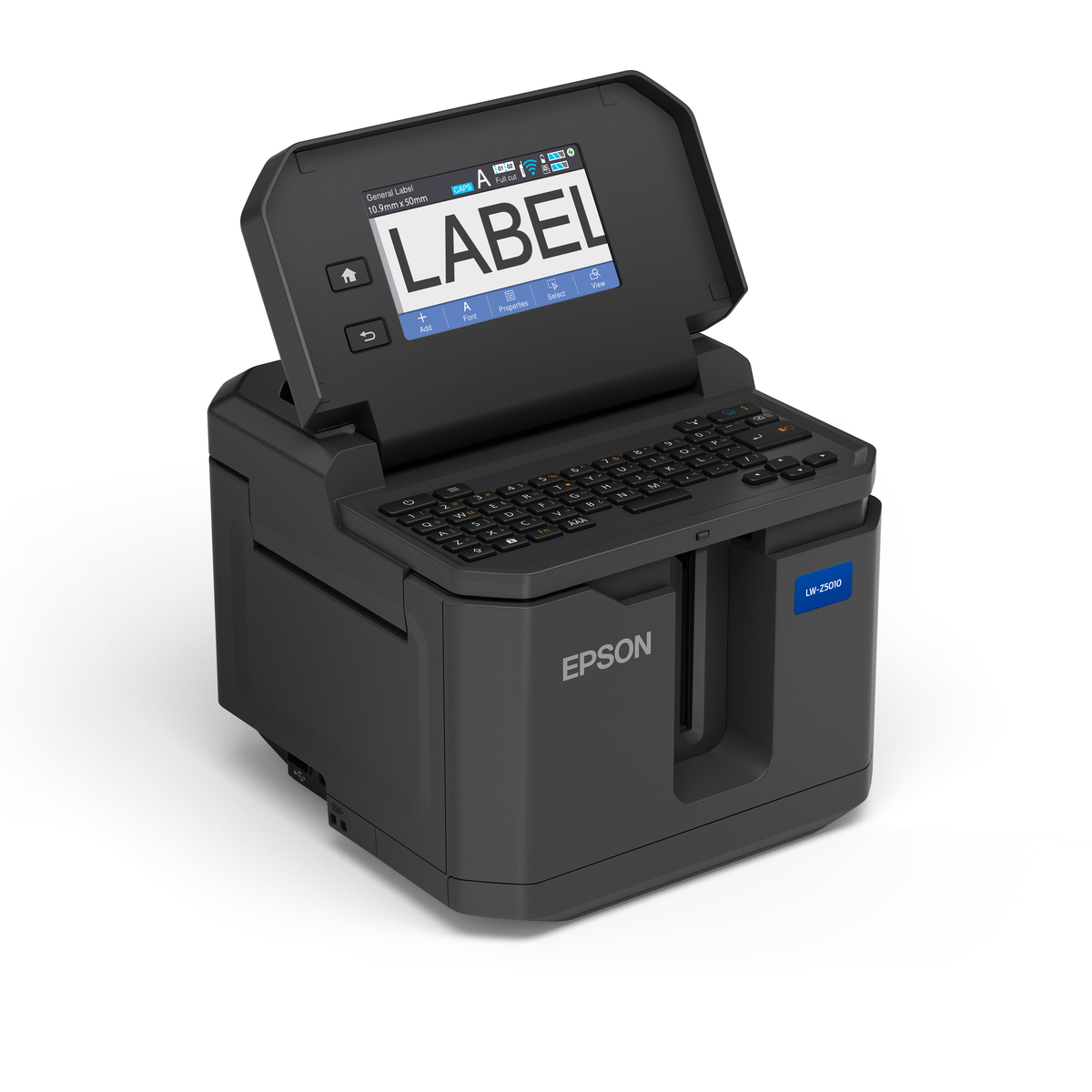

Epson LW-Z5010BA Label Printer (Auto full cut, half cuttter, 48mm, 300dpi )

Name: Epson LW-Z5010BA Label Printer (Auto full cut, half cuttter, 48mm, 300dpi )
Brand: Epson
SKU: PRD-202607-1301

Model LW-Z5010BA Printing Technology: Thermal Transfer Cartridge Type: LK Tape Cartridge, BR Label Roll Kit (Ribbon included) Tape Width: Tape Cartridge: 6,...

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Model	LW-Z5010BA
Resolution	300 dpi
Print Width	48mm
Print speed	Up to 50mm/sec (AC Adapter) / Up to 35mm/sec (Battery)
Cutter	Automatic full-cut and half-cut

Full specifications ↓

Product details

Model	LW-Z5010BA
Printing	Technology: Thermal Transfer Cartridge Type: LK Tape Cartridge, BR Label Roll Kit (Ribbon included) Tape Width: Tape Cartridge: 6, 9, 12, 18, 24, 36, 50mm Bulk Roll: 12, 18, 24, 36, 50mm Resolution: 300 dpi Printable Dot Numbers: 566 dot numbers Max Print Speed: Up to 50mm / sec (with AC Adapter) / Up to 35mm / sec (with Rechargeable Battery) Max. Print Width: 48mm
Connectivity	Interface: USB 2.0, Ethernet, Wi-Fi, Simple AP mode Included Software: Epson Label Editor (PC) Mobile: Epson iLabel, Epson Datacom Support OS: Windows, Android, iOS
Hardware	Cutter: Automatic full-cut and half-cut function (Replaceable) Indicator: Power LED, Power Charge, Wi-Fi Detection: Cover Open, Cut Setting, Print Density Setting, Print Speed Setting, Over Heat, Overcurrent Shutdown, Battery Charge, Auto Power Off Drop-Stop & Print-and-Pick: Yes (Prints, cuts and hold label until it is pulled from printer before printing the next label in the batch automatically) LCD: 4.3” Colour Touch Screen LCD Keyboard: Yes Tape Cartridge / Label Roll: Tape End Detection, Tape Type, Tape and Ribbon, Tape Width, Tape Remaining*1 Rechargeable Battery: Bundled
Fonts	Print Fonts: Keypad / PC Dependant
General	AC Adapter: Bundled
Printer Details	Options: Rewinder: Winding Length: Max. 45m Supported Tape Width: 9 - 50mm
Overall Dimensions (D x W x H)	Overall Dimensions (D x W x H): 198 x 193 x 153 mm
Weight	Weight: Approx. 3.2kg
Print Settings	Repeat Printing: Yes Auto Increment: Yes Data Import: Yes Number Serialization: Up to 4 digits (alphanumeric) Mirror Printing: Yes Vertical Printing: Yes Multi Line Print: Standalone mode / PC-based Margins: Minimum 1mm print margin for standard labels for both standalone or the use of Label Editor Fixed Length: Auto / Custom QR Code: 9 types on panel (EAN8, EAN13, Code39, Code 128, UPC-A, UPC-E, ITF, CodaBar, QR Code), 15 types (via Label Editor Software) Symbols: 907 symbols on LCD Panel, 6 User Download Symbol, 1,475 symbols (via Label Editor Software) Max Copies: 999 Label Length: From 10 to 999.9mm
Print Function	General Labeling: Yes Cable Wrap: Yes Cable Flag: Yes Face Plate: Yes Mix-Length: Yes Patch Panel: Yes Punch Block : Yes 110-Block/ Block-66: Yes Self-Lamination: Yes Pipe Marker: Yes (Via Panel only)
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Delivery & professional installation
Configuration & migration
Manufacturer warranty handling
Annual maintenance & managed services (MSP)

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Model	LW-Z5010BA
Resolution	300 dpi
Print Width	48mm
Print speed	Up to 50mm/sec (AC Adapter) / Up to 35mm/sec (Battery)
Cutter	Automatic full-cut and half-cut
Interface	USB 2.0, Ethernet, Wi-Fi
Tape Width	6, 9, 12, 18, 24, 36, 50mm
LCD	4.3" Colour Touch Screen
