HP Designjet Studio 36in Printer (5HB14A)

Print technology

HP Thermal Inkjet

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Model size

914 mm

Theoretical minimum line width

0.02 mm

Line accuracy

±0.1%[3]

Print speed

25 sec/page on A1, 82 A1 prints per hour[1]

Maximum optical density (black)

8 L* min/2.10 D[4]

Print quality color (best)

Up to 2400 x 1200 optimized dpi

Non-printable area (cut-sheet)

5 x 5 x 5 x 5 mm

Non-printable area (roll media)

5 x 5 x 5 x 5 mm

Printer drivers included

Raster driver for Windows and macOS

Internal Storage

None

Memory

1 GB

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11, Supports gigabit ethernet and wifi connectivity

Power Consumption Description

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Number of print cartridges

4 (C, M, Y, K)

Print cartridge volume delivered

80 ml (K); 38 ml (K); 29 ml (C, M, Y)

Print heads

1 (cyan, magenta, yellow, black)

Print head nozzles

1376

Ink drop

5.5 pl (C, M, Y); 12 pl (K)

Ink types

Dye-based (C, M, Y); pigment-based (K)

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media sizes supported

Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0

Media sizes, custom

Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm

Media sizes standard (metric rolls)

279 to 914 mm

Media width, maximum

914 mm

Media weight, recommended

60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)

Media thickness

Up to 11.8 mil

Roll external diameter

100 mm

Roll maximum input

1

Roll maximum weight

6.2 kg

Recommended media

[5] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org.

Supported Primary Applications

CAD rendering, Accurate line drawings for architects, Wide format printing, Construction blueprint printing

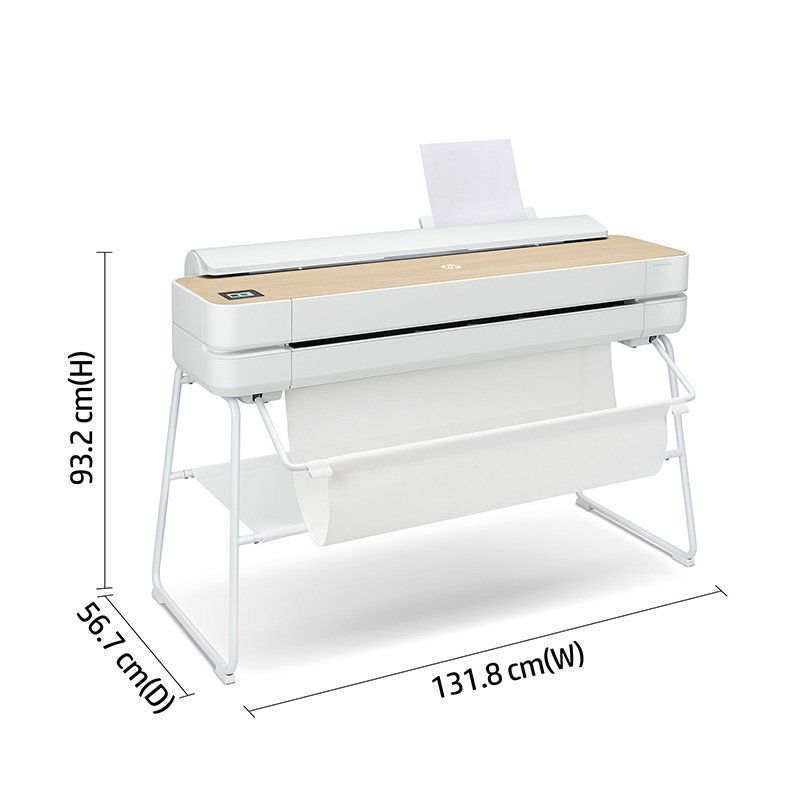

Dimensions without stand (W x D x H)

1317 x 555 x 932 mm

Package dimensions (W x D x H)

1470 x 575 x 646 mm

Weight

41.7 kg

Package weight

62 kg

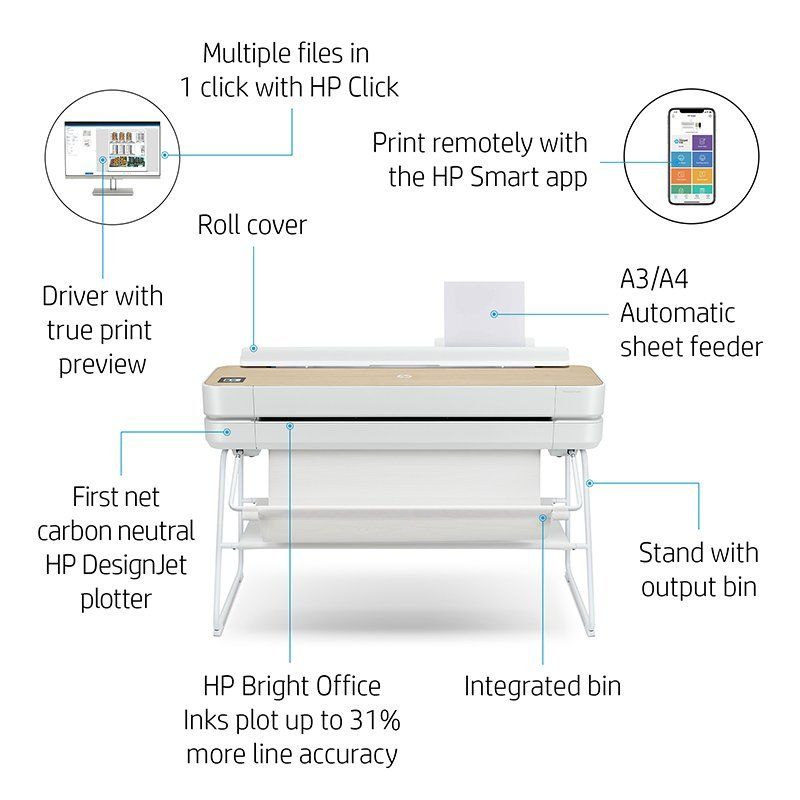

What's in the box

HP DesignJet Studio 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Warranty

Three-years limited hardware warranty
