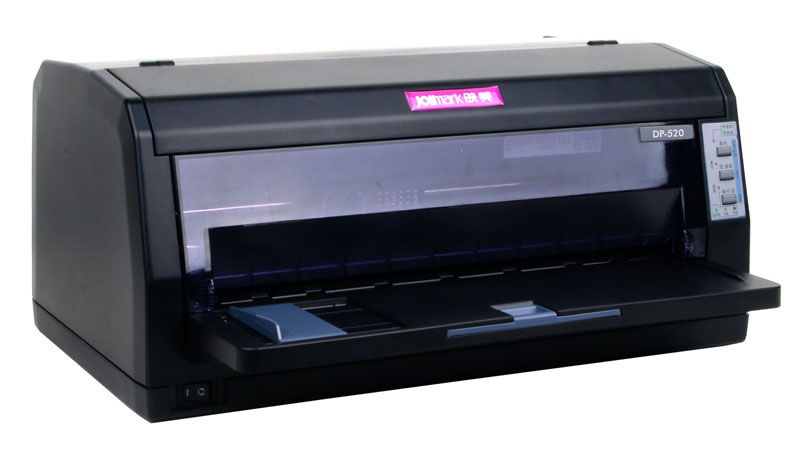

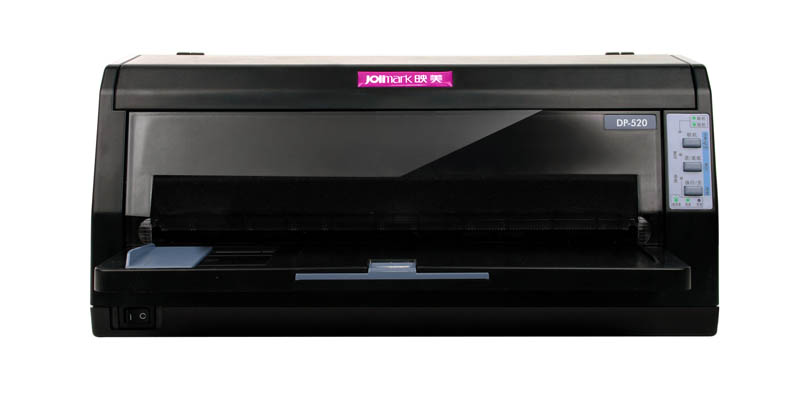

Jolimark DP520 Dot matrix Printer USB Letter A4
Print type24-pin impact dot matrixPrint directionBi-directional with logic seekingPrint Width(10CPI)80 Columns / 203.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Technology | Dot Matrix |
Product details
| Print type | 24-pin impact dot matrix |
| Print direction | Bi-directional with logic seeking |
| Print Width(10CPI) | 80 Columns / 203.2mm |
| Print speed(10CPI) | 260 CPS (Super high speed) 242 CPS (High speed) 121 CPS (Normal) |
| Fonts | Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-A, OCR-B, Orator |
| Bar code | EAN-13、EAN-8、Interleaved 2 of 5、Matrix 2 of 5、Industrial 2 of 5、Code 39、Code 128 B、Code 128 C、NW-7 |
| Character pitch | 10CPI, 12CPI, 15CPI, proportional |
| Line space | 1/6 inch, 1/8 inch, programmable in 1/360 inch increments |
| Emulation | EPSON ESC/PK2, OKI 5530SC |
| Interface | DP520: [USB2.0] DP520B:[USB2.0][Bluetooth 2.0/2.1+EDR] DP520W:[USB2.0][W-Fi 802.11b/g/n] |
| Buffer Memory | 132KB |
| Ribbon | Model:JMR130 Life(draft mode):> 8 million characters |
| Noise | <55dB(A)(ISO7779 standard) |
| Paper feed type | Cut sheet: front in, front out / front in, rear out Tractor paper: rear in, front out |
| Paper specification | Cut sheet: Width: 60~254mm Tractor paper:Width: 55~275mm |
| Max paper thickness | 0.65mm |
| Copy | Original+6 copies |
| Function | Paper loading at any point Automatic paper edge detection Paper skew detection Black mark detection Automatic Pin Break Compensation Automatic Pin Alternation Automatic Emulation Match Online Parameter Setting |
| Dimension (W×D×H) | 376mm × 285mm × 169mm |
| Weight | Approx. 4.8Kg |
| Environmental conditions | Operating:Temperature: 5~40℃, Humidity: 25%RH~80%RH(No condensation) Storage：Temperature: -40~55℃, Humidity: ≤93%RH(40℃, No condensation) |
| Power requirements | Rated voltage:110V~220V(AC) Rated frequency range:50~60Hz |
| Safety marks | GB 4943.1 |
| Certificate | DNV ISO14001, BSI ISO9001, OHSAS 18001 |
| Note | 1. The technical specifications in this catalog are the laboratory measurement data which achieved under the national standard for the storage and work environment (room temperature), the specifications of the testing papers are specified in the Users' Manual. 2. The technical specifications are subject to change without notice. 3. All trademarks are the properties of their respective holders. |
