Mikrotik CCR1072-1G-8S+ 1U rackmount, 1x Gigabit Ethernet, 8xSFP+ cages, LCD, 72 cores x 1GHz CPU, 16GB RAM, up to 120 million packets per second, 80Gbps throughput, RouterOS L6
Mikrotik CCR1072-1G-8S+ 1U rackmount, 1x Gigabit Ethernet, 8xSFP+ cages, LCD, 72 cores x 1GHz CPU, 16GB RAM, up to 120 million packets per second, 80Gbps throug...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| CPU Cores | 72 |
| CPU Speed | 1 GHz |
| RAM | 16 GB |
| Ethernet Ports | 1 |
| SFP+ Ports | 8 |
Product details
Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at 1GHz, and to fully utilize this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports and single Ethernet port for management purposes.

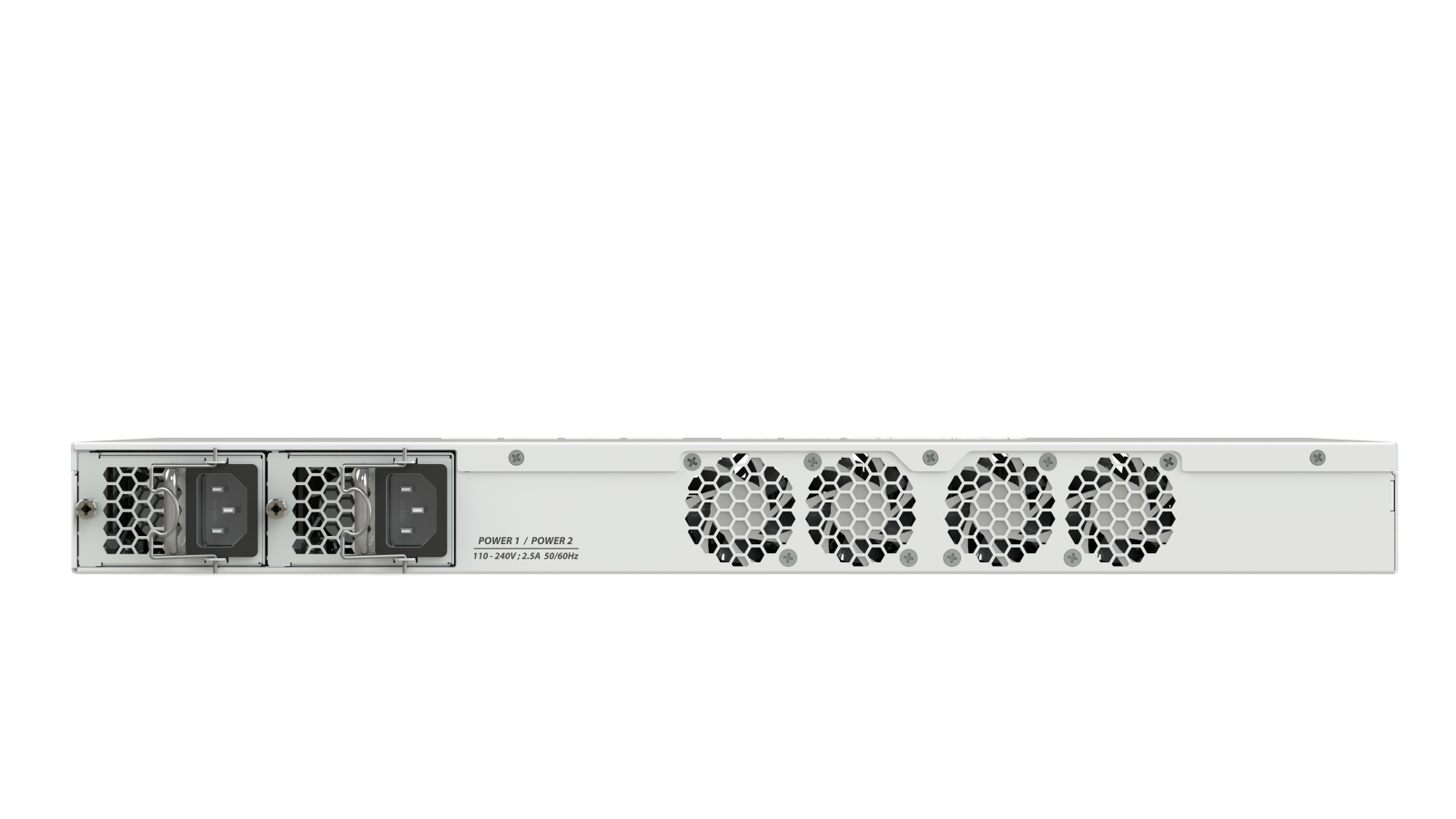

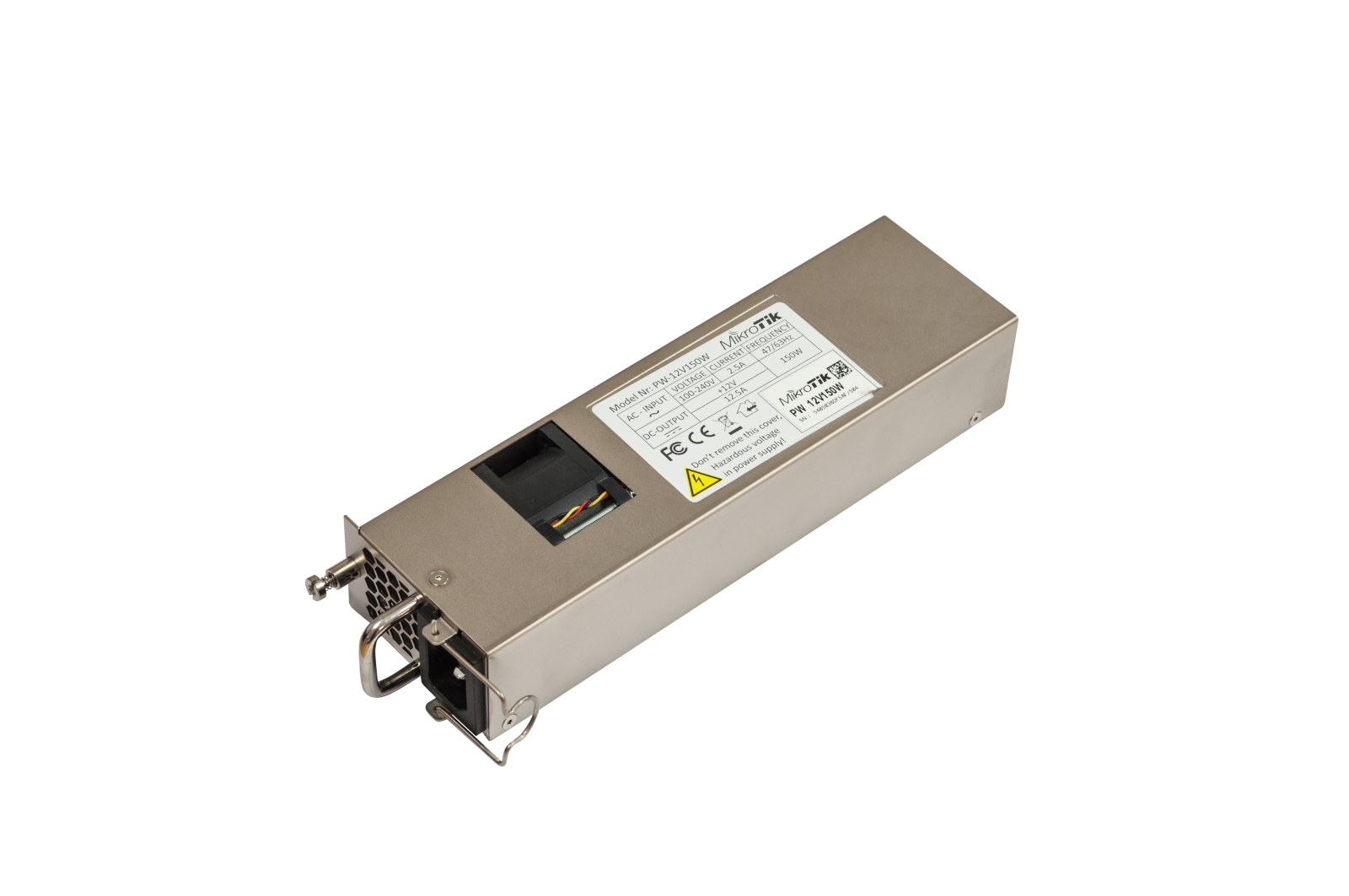

The unit comes equipped with installed RouterOS L6, 16GB of built in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, microUSB, regular size USB, microSD and 2x M.2 slots for additional storage.
Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CCR1072-1G-8S+ |
| Architecture | TILE |
| CPU | TLR4-07280 |
| CPU core count | 72 |
| CPU nominal frequency | 1 GHz |
| Dimensions | 443 x 315 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $3350.00 |
POWERING
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 125 W |
| Cooling type | 4 |
ETHERNET
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
FIBER
| Details | |
|---|---|
| SFP+ ports | 8 |
PERIPHERALS
| Details | |
|---|---|
| Memory card type | microSD, 2x M.2 |
| Memory Cards | 3 |
| Serial console port | RJ45 |
| Number of USB ports | 2 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB; USB type A |
| Max USB current (A) | 1 |
| Smart card slot | Yes |
| Number of M.2 slots | 2 |
OTHER
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| CPU Cores | 72 |
| CPU Speed | 1 GHz |
| RAM | 16 GB |
| Ethernet Ports | 1 |
| SFP+ Ports | 8 |
| Throughput | 120 million packets per second |
| Operating system | RouterOS L6 |
| Max Power Consumption | 125 W |
