Mikrotik CCR2216-1G-12XS-2XQ
Mikrotik CCR2216-1G-12XS-2XQ -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| CPU | 16-core ARM 64bit AL73400 at 2000 MHz |
| RAM | 16 GB |
| Storage | 128 MB NAND |
| Ethernet Ports | 1x Gigabit Ethernet |
| SFP28 ports | 12x 25 Gigabit |
Product details
Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.
But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

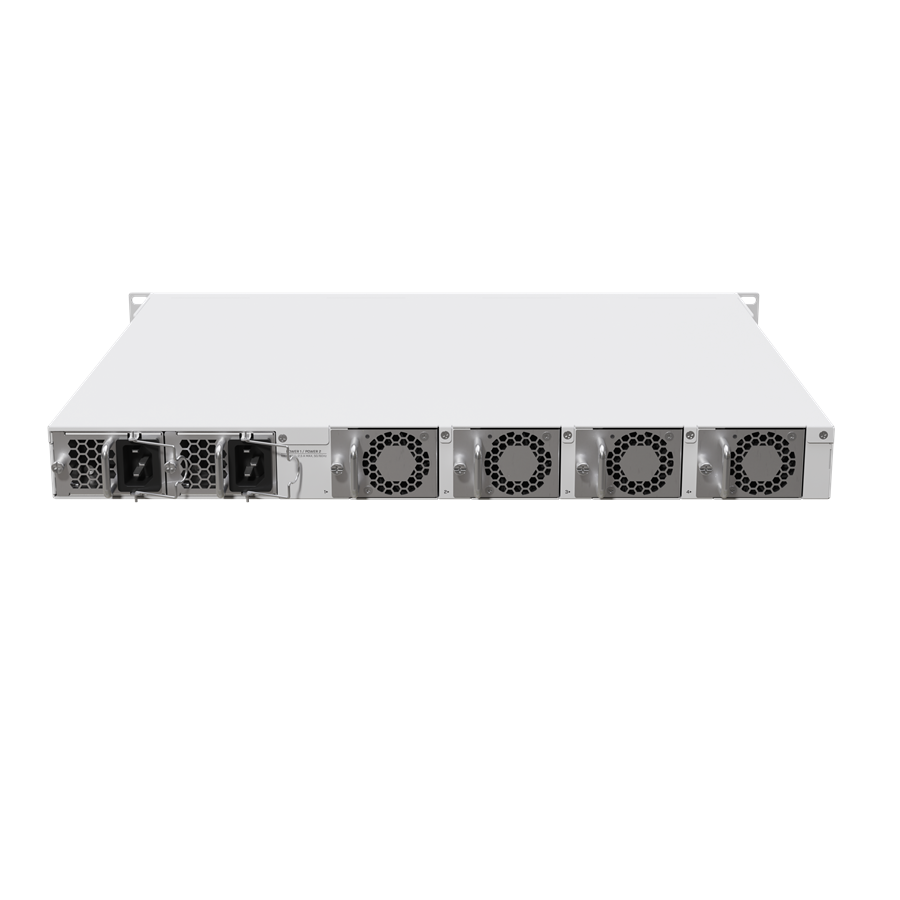

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CCR2216-1G-12XS-2XQ |
| Architecture | ARM 64bit |
| CPU | AL73400 |
| CPU core count | 16 |
| CPU nominal frequency | 2000 MHz |
| RouterOS license | 6 |
| Operating System | RouterOS 7 |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
POWERING
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 128 W |
| Max power consumption without attachments | 80 W |
| Cooling type | 4 |
ETHERNET
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
FIBER
| Details | |
|---|---|
| Number of 25G SFP28 ports | 12 |
| Number of 100G QSFP28 ports | 2 |
PERIPHERALS
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of M.2 slots | 2 |
OTHER
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| CPU | 16-core ARM 64bit AL73400 at 2000 MHz |
| RAM | 16 GB |
| Storage | 128 MB NAND |
| Ethernet Ports | 1x Gigabit Ethernet |
| SFP28 ports | 12x 25 Gigabit |
| QSFP28 ports | 2x 100 Gigabit |
| Power Consumption | 128 W max |
| M.2 slots | 2 |
