Mikrotik CRS112-8G-4S-IN 8x Gigabit Ethernet Smart Switch, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5
Mikrotik CRS112-8G-4S-IN 8x Gigabit Ethernet Smart Switch, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5 -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ethernet Ports | 8x Gigabit |
| SFP Ports | 4 |
| CPU | 400MHz |
| RAM | 128MB |
| Storage | 16MB FLASH |
Product details

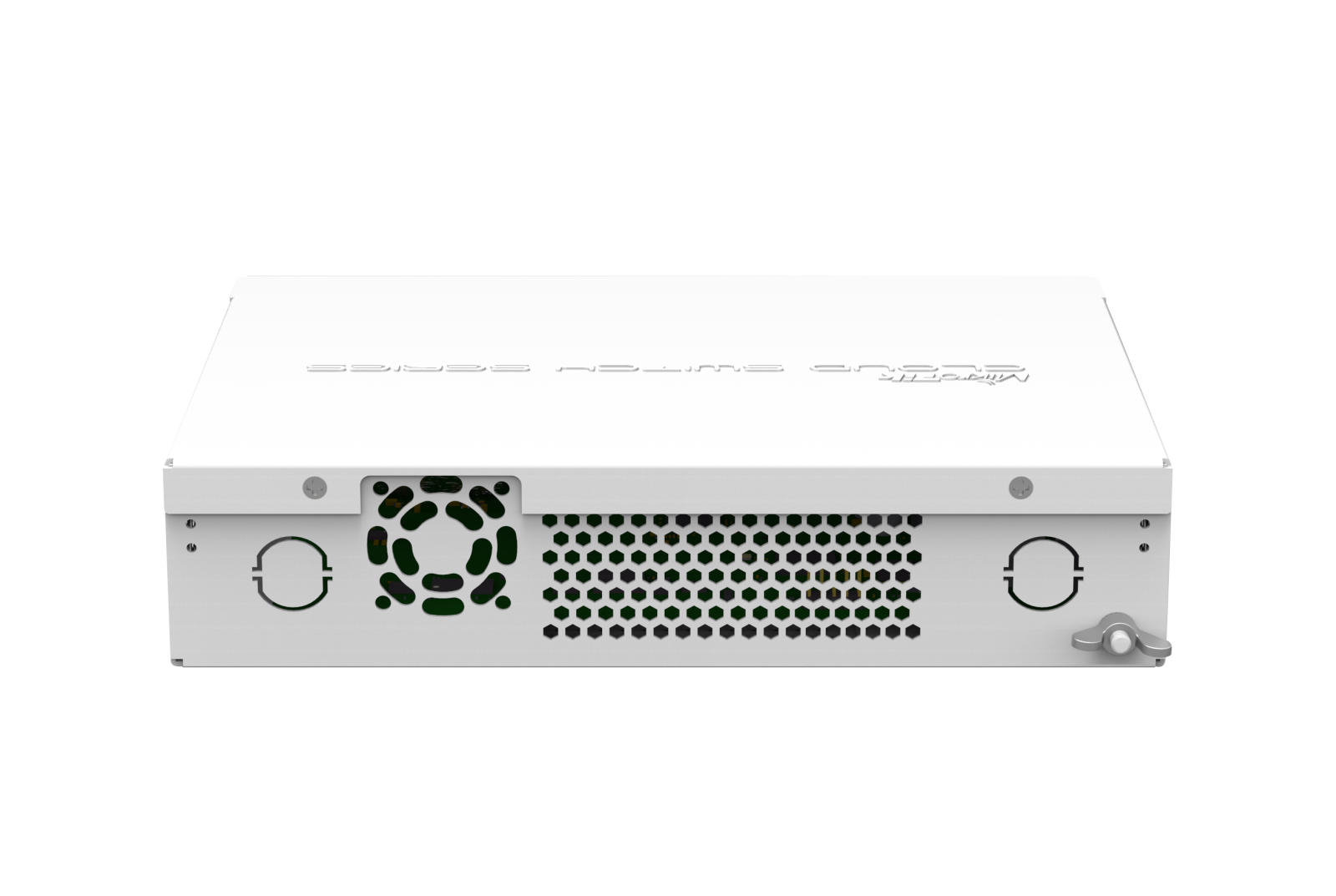

Cloud Router Switch 112-8G-4S-IN is a “small size low cost” member of our CRS series. It comes with eight Gigabit Ethernet ports and four SFP cages.
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS.
All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CRS112-8G-4S-IN |
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 200x143x44mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
POWERING
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| Max power consumption | 10 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-57 V |
ETHERNET
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
FIBER
| Details | |
|---|---|
| SFP ports | 4 |
PERIPHERALS
| Details | |
|---|---|
| Serial console port | RJ45 |
OTHER
| Details | |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ethernet Ports | 8x Gigabit |
| SFP Ports | 4 |
| CPU | 400MHz |
| RAM | 128MB |
| Storage | 16MB FLASH |
| Operating system | RouterOS |
| Power Consumption | 10W |
| Dimensions | 200x143x44mm |
