MikroTik CRS305-1G-4S+IN | Switch | 1x RJ45 1000Mb/s, 4x SFP+
MikroTik CRS305-1G-4S+IN | Switch | 1x RJ45 1000Mb/s, 4x SFP+ -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Ethernet Ports | 1x 10/100/1000 |
| SFP+ Ports | 4 |
| CPU | 98DX3236 |
| RAM | 512 MB |
| Storage | 16 MB FLASH |
Product details

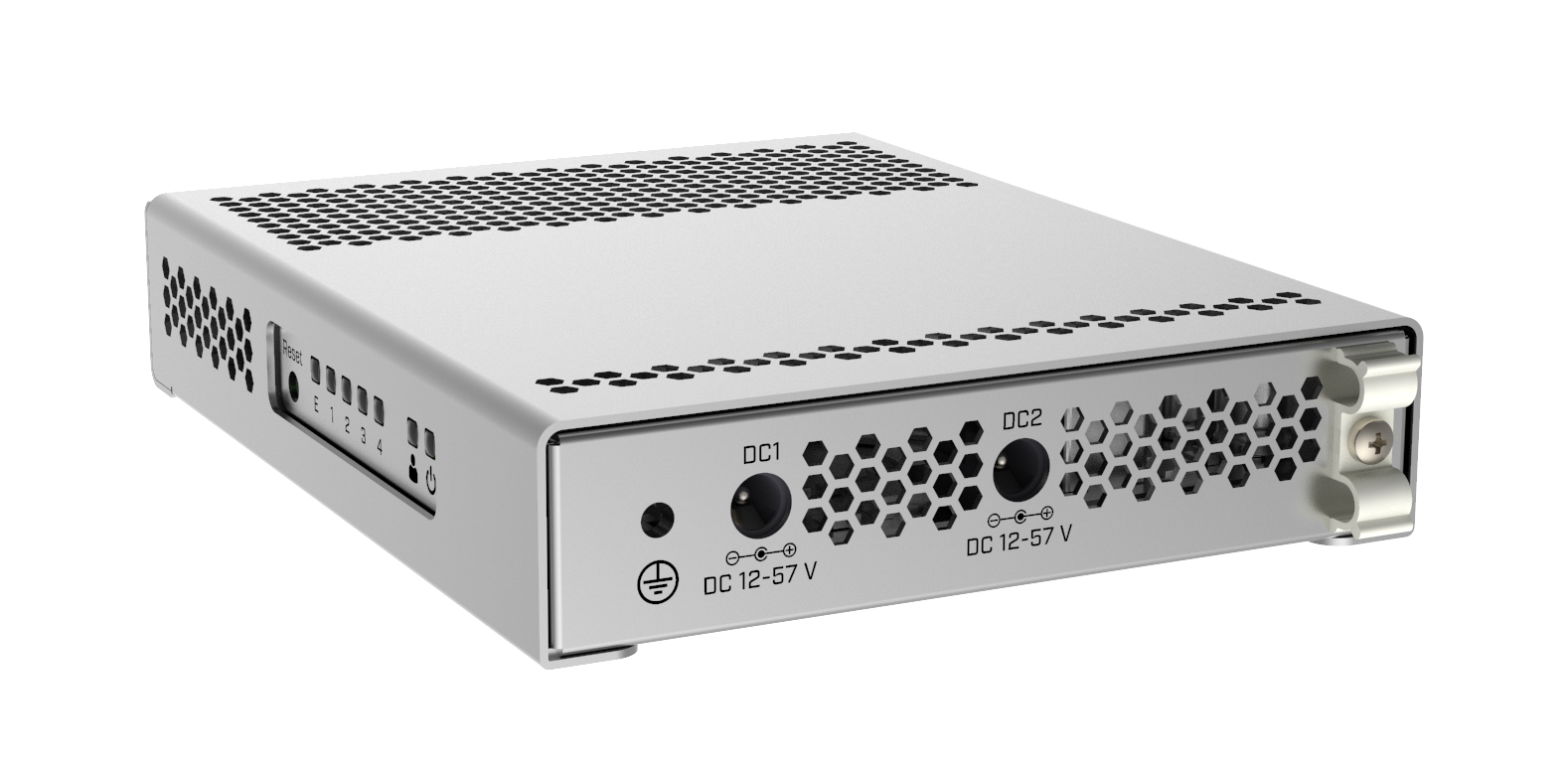

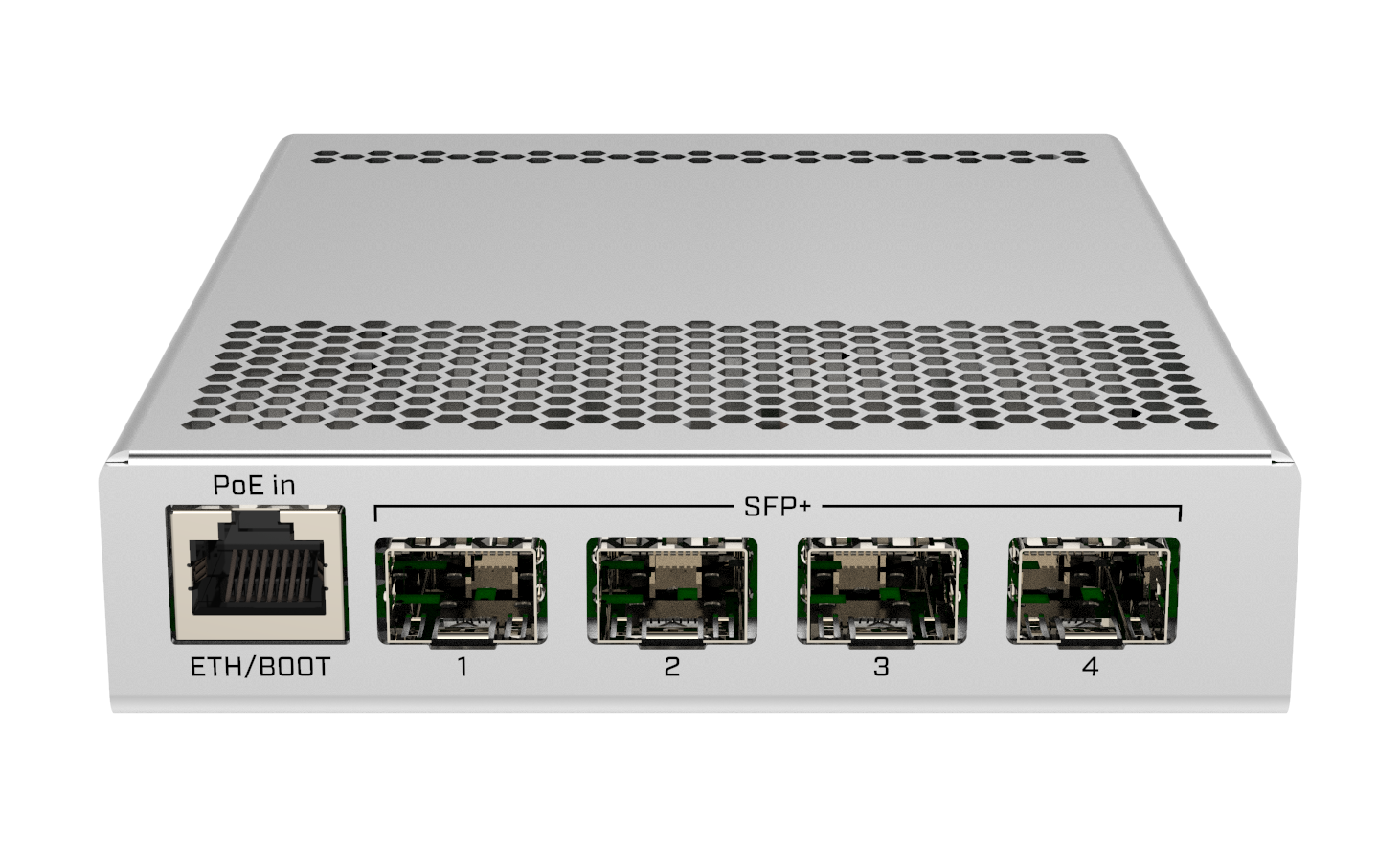

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access or regular traffic forwarding and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.
SPECIFICATIONS
| Details | |
|---|---|
| Product code | CRS305-1G-4S+IN |
| Architecture | ARM 32bit |
| CPU | 98DX3236 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 141 x 115 x 28 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
POWERING
| Details | |
|---|---|
| Number of DC inputs | 3 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 18 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
ETHERNET
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
FIBER
| Details | |
|---|---|
| SFP+ ports | 4 |
OTHER
| Details | |
|---|---|
| CPU temperature monitor | Yes |
CERTIFICATION & APPROVALS
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
- Delivery & professional installation
- Configuration & commissioning
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Engineering by our services division, Ryzen ESolutions — Network design & engineering →
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Ethernet Ports | 1x 10/100/1000 |
| SFP+ Ports | 4 |
| CPU | 98DX3236 |
| RAM | 512 MB |
| Storage | 16 MB FLASH |
| Power Consumption | 18 W max |
| Dimensions | 141 x 115 x 28 mm |
| Operating system | RouterOS / SwitchOS |
