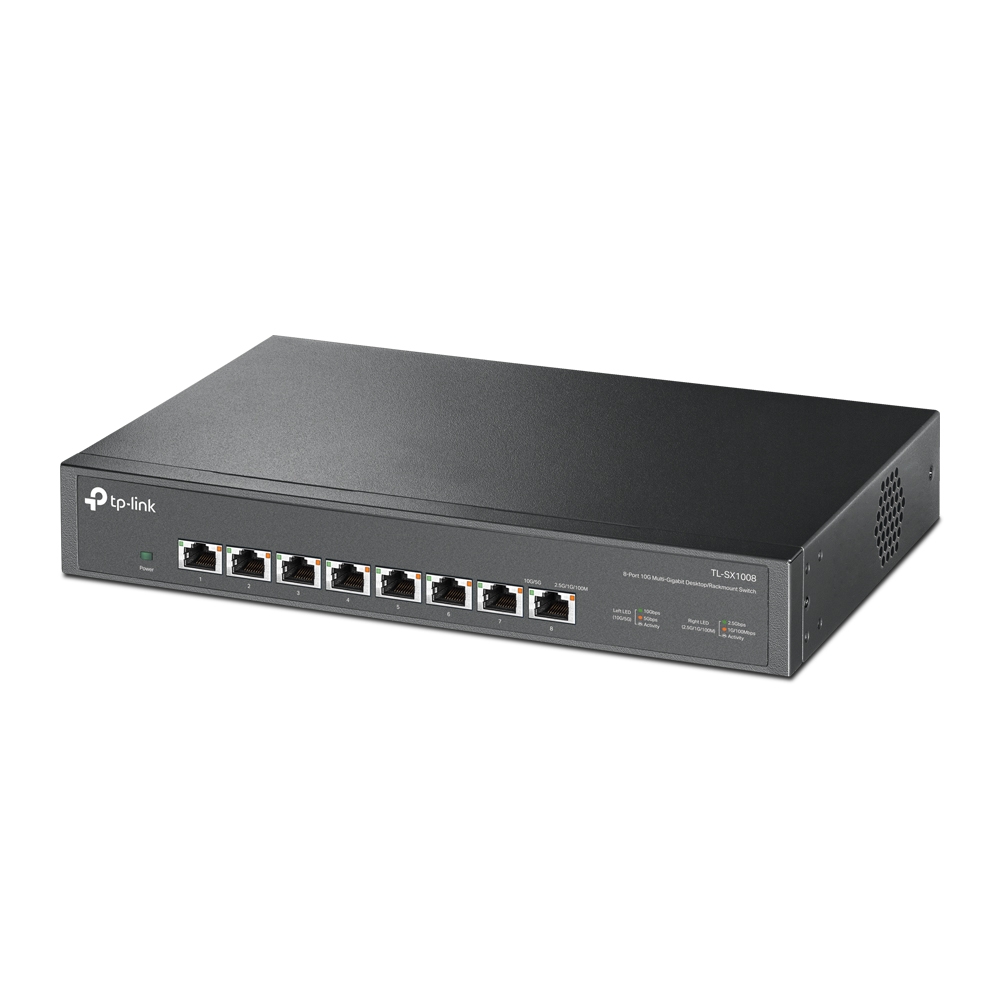

Omada TL-SX1008 New 8-Port 10G Desktop/Rackmount Switch
TP-Link · Switches

Omada TL-SX1008 New 8-Port 10G Desktop/Rackmount Switch

Omada TL-SX1008 New 8-Port 10G Desktop/Rackmount Switch - 8-Port 10G Multi-Gigabit SwitchPORT: 8× 10G RJ45 PortsSPEC: 1U 13-inch Rack-mountable Steel CaseFEATUR...

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Ports 8× 10G RJ45
Speed 10Gbps
Switching Capacity 160 Gbps
Packet Forwarding Rate 119.0 Mpps
Power Consumption 31.2 W
Full specifications ↓

Product details

8-Port 10G Multi-Gigabit Switch

PORT: 8× 10G RJ45 Ports

SPEC: 1U 13-inch Rack-mountable Steel Case

FEATURE: Plug and Play


HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity1 (Intelligent fan speed adjustment)

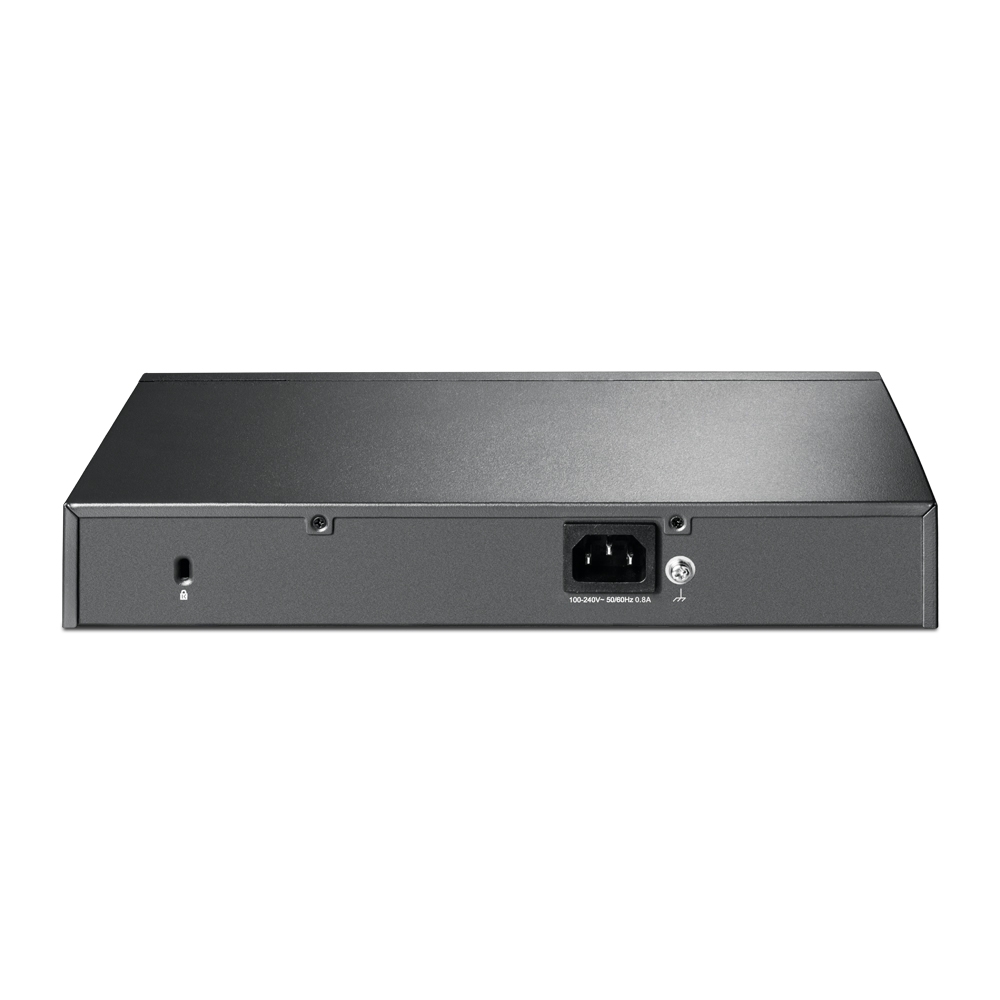

External Power Supply100–240 VAC, 50/60 Hz, 0.8A
LED Indicator• System Power: 1
• Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H )11.6×7.1×1.7 in (294×180×44 mm)
Max Power Consumption31.2 W
PERFORMANCE
Switching Capacity160 Gbps
Packet Forwarding Rate119.0 Mpps
MAC Address Table32 K
Packet Buffer Memory2 Mb
Jumbo Frame10 KB
SOFTWARE FEATURES
Advanced Features• 802.3X Flow Control
• 802.1p/DSCP QoS
Transfer MethodStore and Forward
OTHERS
CertificationCE, FCC ,RoHS
Package Contents• 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Environment• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
  • Delivery & professional installation
  • Configuration & migration
  • Manufacturer warranty handling
  • Annual maintenance & managed services (MSP)
Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Ports8× 10G RJ45
Speed10Gbps
Switching Capacity160 Gbps
Packet Forwarding Rate119.0 Mpps
Power Consumption31.2 W
Dimensions11.6×7.1×1.7 in (294×180×44 mm)
Form Factor1U 13-inch Rack-mountable
Operating Temperature0–50 °C
