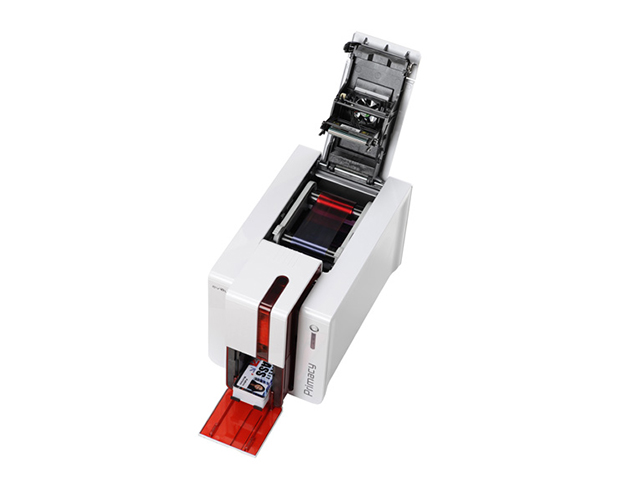

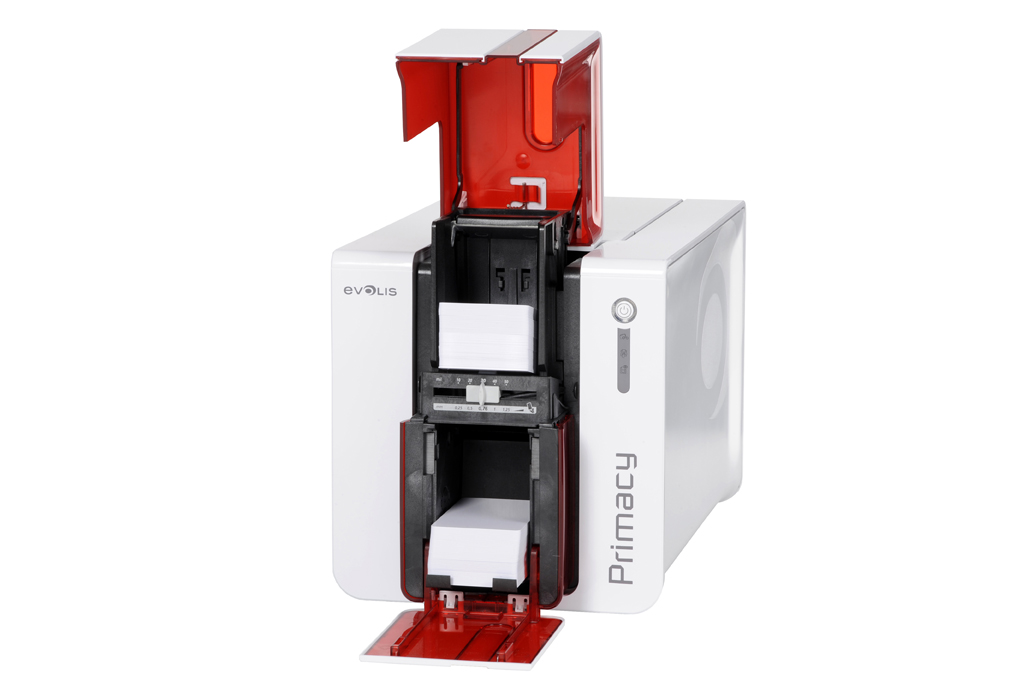

PRIMACY DUPLEX EXPERT DOUBLE-SIDED CARD PRINTER (PM1H0000BD)

Product details

General features

• Direct-to-card dye-sublimation/Resin thermal transfer
• Single-sided printing, edge-to-edge
• Standard 300 x 300 dpi resolution
• Customizable 300 x 600 dpi resolution (color and monochrome printing) or 300 x 1200 dpi resolution (monochrome printing only)
• Colors available: fire red & brilliant blue
• Dual-sided Card Lamination Module (CLM) as an option
• 32 MB memory (RAM) standard - optional 64 MB1

Printing performances

• Single side:




  • Color (YMCKO): 190 - 225 cards/hour
  • Monochrome: 800 - 1000 cards/hour
• Dual side:
  • Color (YMCKO-K): 140 cards/hour

Interfaces

• USB (1.0, 1.1, 2.0, 3.0), cable supplied
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
• 802.11b/g wireless connection on the Wireless range

Cards management and specifications

• Feeder capacity: 100 cards (0.76 mm – 30 mil)
• Output hopper capacity: 100 cards (0.76 mm – 30 mil)
• Open output hopper as an option for collecting cards one by one
• Reject tray/output hopper capacity at the back: 50 cards (0.76 mm – 30 mil)
• Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment (0.25 mm - 10 mil only for monochrome printing)
• Card types: PVC cards, composite PVC cards, PET cards, ABS cards¹, special varnished cards¹
• Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)

Additional encoding modules

• Available modules:




  • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
  • Smart contact station ISO 7816-2
  • Contact smart card encoder - PC/SC, EMV 2011-1
  • Contactless smart card encoder - ISO 14443A, B, ISO15693, MIFARE, DESFire, HID iCLASS, UHF (standard compliance: EPC C1 Gen2 / ISO18000-6C ETSI EN 302 208 or FCC part 15.247)
  • Other specific encoders upon request
• Internal USB or IP ports
• USB encoding over IP through additional USB Net Server module, upon request
• Options can be combined
• Factory-installed or installed on site

Safety

• Support for Kensington® security lock
• Data encryption for magnetic encoding
• Locking system as an option

Display

• Printer LEDs
• Color touch screen as an option
• Graphical notifications from the printer: cleaning alerts, empty/low level ribbon and card alerts, etc.

Evolis High Trust^® Ribbon

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

• Automatic identification and setting
• Delivered in a drop-in cassette for easy handling
• Ribbon saver for monochrome printing

Software

• Delivered with Evolis Premium Suite^® for Windows^®:




  • Printer driver
  • Evolis Print Center for administration and settings
  • Evolis Printer Manager for graphical notification³
  • 24/7 online support
  • Compatible with Windows® (32/64 bits): XP SP3, Vista, W7, W8, W10
• Delivered with cardPresso XXS for designing and editing badges:
  • Internal database (unlimited records)
  • Windows® (from XP onwards) and Mac OS X
• Delivered with a driver for Mac OS X (from 10.6 onwards)
• Linux OS upon request
• Evolis Premium SDK for remote supervision of the printer, while facilitating and speeding up integration into IT systems

Eco-friendly design, certifications and statement of compliance

• Standby, sleep modes & reduced energy consumption
• CE, FCC, ICES, VCCI, CCC, KC, BIS, EAC
• RoHS

Size and weight

• Size (H x W x D):




  • 247 x 205 x 381 mm (9.72’’ x 8.07’’ x 14.99’’)
  • With reject tray/output hopper at the back:
  • 247 x 205 x 487 mm (9.72’’ x 8.07’’ x 19.17’’)

• Weight: 4.02 kg (8.86 lbs)




  • With reject tray/output hopper at the back:
  • 4.11 kg (9.06 lbs)

Warranty

• 3-year warranty (printer and print head)
• Warranty extension available as an option

1 Under specific conditions / 2 Depends on the Windows® version  / 3 Requires the .net 4.0 client profile version / 4 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons
