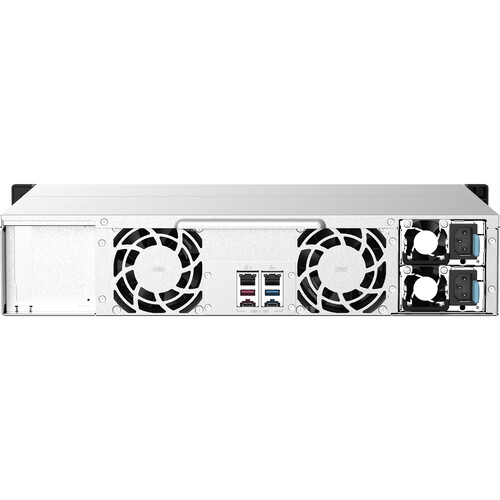

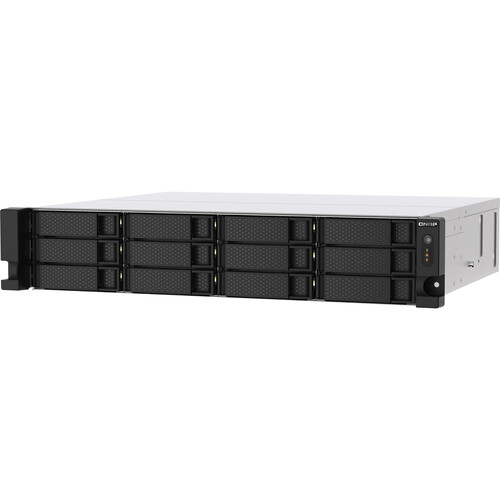

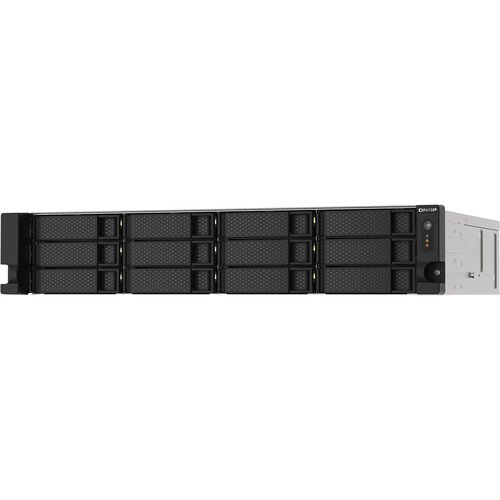

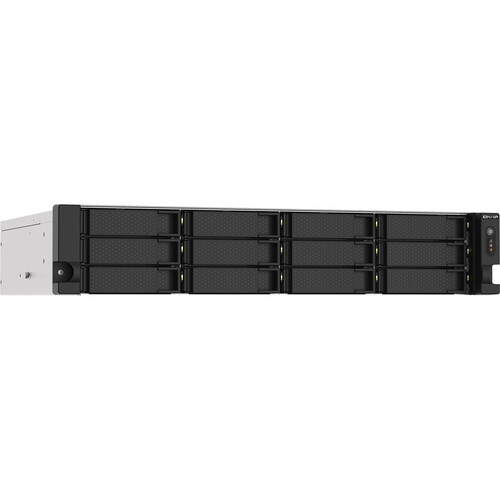

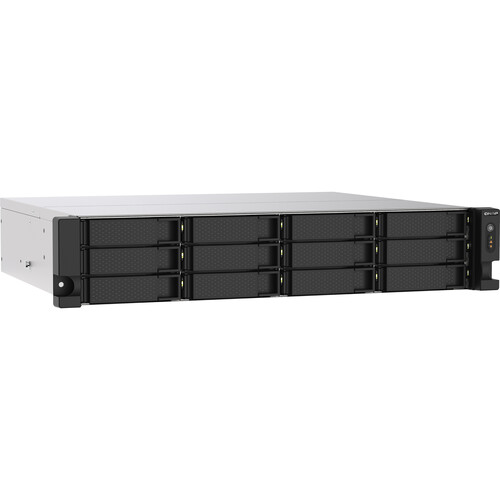

QNAP TS-1273AU-RP-8G 12-Bay NAS Enclosure
QNAP · NAS & Storage

QNAP TS-1273AU-RP-8G 12-Bay NAS Enclosure

Buy QNAP TS-1273AU-RP-8G 12-Bay NAS Enclosure, Qnap from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Form factor 2U Rackmount
Full specifications ↓

Product details

Key Features

  • 12 x 3.5" / 2.5" SATA III Drive Bays
  • 2.2 GHz AMD V1500B Quad-Core CPU
  • 8GB DDR4 RAM
  • 2 x 2.5G Ethernet Ports
  • 2 x PCIe 3.0 Expansion Slots
  • 1 x USB 3.2 Gen 1 | 3 x USB 3.2 Gen 2
  • RAID 0, 1, 5, 6, 10, 50, and 60
  • 2 RU Rackmount
  • RAID 0, 1, 5, 6, 10, 50, 60 & JBOD
  • QTS 4.4.2 Operating System


CPUAMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated TranscodingOptional via a PCIe graphics card
System Memory8 GB UDIMM DDR4 (1 x 8 GB)
Maximum Memory64 GB (2 x 32 GB)
Memory Slot2 x UDIMM DDR4
Support ECC memory
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory5GB (Dual boot OS protection)
Drive Bay12 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 SlotOptional via a QNAP QM2 PCIe card
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M)2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)Optional via a network adapter
10 Gigabit Ethernet PortOptional via a network adapter
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame
PCIe Slot2 x PCIe Gen3 x4
With a riser card (two PCIe slots):
slot 1:160 x 68.9x 18.76 mm / 6.3 x 2.71 x 0.74 inches.
slot 2:160 x 68.9x 39.08 mm / 6.3 x 2.71 x 1.54 inches.
Wider cards can be installed if the next PCIe slot will not be used.
Without a riser card (one PCIe slot):
Slot 1:160 x 68.9x 39.08 mm / 6.3 x 2.71 x 1.54 inches.
USB 3.2 Gen 1 port1 x Type-A
USB 3.2 Gen 2 (10Gbps) Port2 x Type-C
1 x Type-A
HDMI™ OutputOptional via a PCIe graphics card
Form Factor2U Rackmount
LED IndicatorsHDD 1-12, Status, LAN, USB, Power
ButtonsPower, Reset
Dimensions (HxWxD)88.6 × 432 × 370.7 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net)11.13 kg
Weight (Gross)14.62 kg
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
  • Delivery & professional installation
  • Configuration & migration
  • Manufacturer warranty handling
  • Annual maintenance & managed services (MSP)
Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

Specifications

Compute Specs
Form factor2U Rackmount
