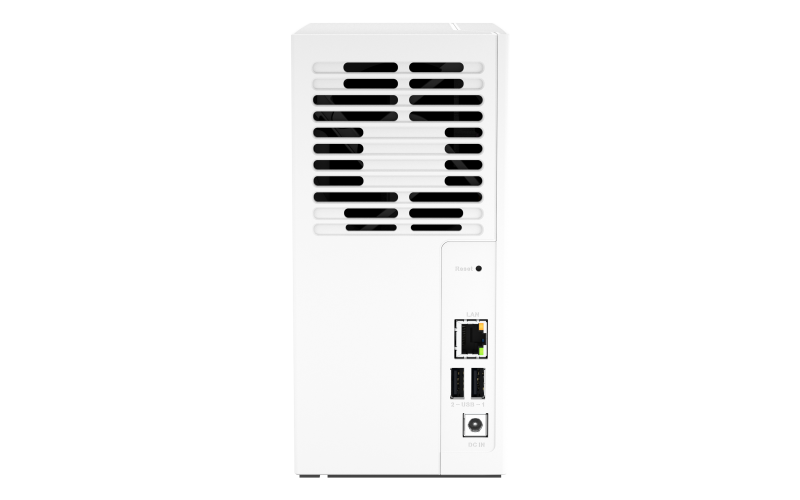

QNAP TS-233 Nas (2 Bay, ARM 4-core Cortex-A55 2.0GHz, 2GB DDR4 RAM, 64-Bit)

Name: QNAP TS-233 Nas (2 Bay, ARM 4-core Cortex-A55 2.0GHz, 2GB DDR4 RAM, 64-Bit)
Brand: QNAP
SKU: PRD-202607-4209

QNAP TS-233 Nas (2 Bay, ARM 4-core Cortex-A55 2.0GHz, 2GB DDR4 RAM, 64-Bit) -

Quote on request

✓ Available to order · supplied & installed in Malaysia

Key specifications
Form factor	Tower

Product details

PRODUCT SPECIFICATIONS

Model	TS-233
CPU	ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture	64-bit ARM
Floating Point Unit	Yes
Encryption Engine	Yes
System Memory	2 GB on board (non-expandable)
Maximum Memory	2 GB on board (non-expandable)
Flash Memory	4 GB (Dual boot OS protection)
Drive Bay	2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable	Yes
Gigabit Ethernet Port (RJ45)	1
Wake on LAN (WOL)	Yes
Jumbo Frame	Yes
USB 2.0 port	2
USB 3.2 Gen 1 port	1
Form Factor	Tower
LED Indicators	System Status, LAN, USB, HDD1~2 Buttons Power, Reset, USB Copy
Dimensions (HxWxD)	188.64 × 90.18 × 156.26 mm
Weight (Net)	1.11 kg
Weight (Gross)	1.95 kg
Operating temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	65W adapter (12VDC), 100-240VAC
Power Consumption: HDD Sleep Mode	3.43 W
Power Consumption: Operating Mode, Typical	10.81 W Tested with drives fully populated.
Fan	1 x 80mm, 12VDC
System Warning	Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory	200
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Warranty
- Qnap 2 Years Warranty
- Manufactured and warranty provided by Qnap
