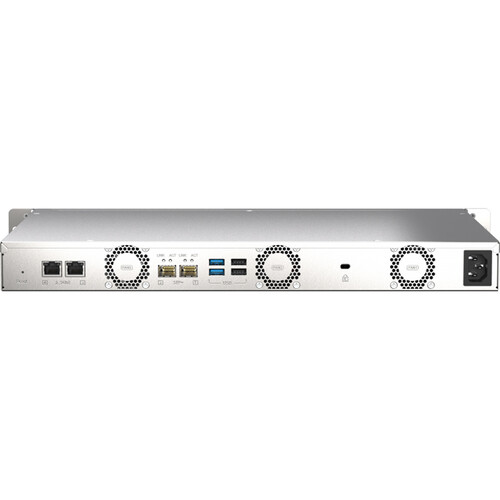

QNAP TS-435XEU-4G 4-Bay NAS Enclosure
Key Features4 x 3.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | 1U Rackmount |
Product details
Key Features
- 4 x 3.5"/2.5" Bays | 2 x M.2 2280 Slots
- 2.2 GHz Marvell OCTEON TX2 Quad-Core
- 4GB DDR4 RAM
- 2 x 10GbE SFP+ | 2 x 2.5GbE RJ45
- USB 3.2 Gen 1 Type-A | USB 2.0 Type-A
- RAID 0, 1, 5, 6, 10, JBOD, and Single
- Up to 2224 MB/s File Transfer Speeds
- AES 256-Bit Encryption
- Three 40mm Cooling Fans
- QTS 5.0.0 Operating System
| CPU | Marvell OCTEON TX2™ CN9130 / CN9131 ARMv8 Cortex-A72 4-core 2.2GHz processor | ||
| CPU Architecture | 64-bit ARM | ||
| Floating Point Unit | |||
| Encryption Engine | |||
| System Memory | 4 GB SODIMM DDR4 (1 x 4GB) | ||
| Maximum Memory | 32 GB (1 x 32 GB) | ||
| Memory Slot | 1 x SODIMM DDR4 | ||
| Flash Memory | 4GB (Dual boot OS protection) | ||
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s | ||
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives | ||
| Hot-swappable | |||
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 slots Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. | ||
| SSD Cache Acceleration Support | |||
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) | ||
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ | ||
| Wake on LAN (WOL) | |||
| Jumbo Frame | |||
| USB 2.0 port | 2 | ||
| USB 3.2 Gen 1 port | 2 | ||
| Form Factor | 1U Short Depth Rackmount | ||
| LED Indicators | HDD 1-4, Status, LAN, USB, M.2 SSD 1-2 | ||
| Buttons | Power, Reset | ||
| Dimensions (HxWxD) | 43.3 × 430 × 292.12 mm Excludes ear hook and the protruding part of the Power Supply Unit. | ||
| Weight (Net) | 4.91 kg | ||
| Weight (Gross) | 5.82 kg | ||
| Operating Temperature | 0 - 40 °C (32°F - 104°F) | ||
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | ||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | ||
| Power Supply Unit | 100W PSU, 100-240V | ||
| Power Consumption: HDD Sleep Mode | 17.367 W | ||
| Power Consumption: Operating Mode, Typical | 30.878 W | ||
| Fan | 3 x 40mm, 12VDC | ||
| System Warning | Buzzer | ||
| Compute Specs | |
|---|---|
| Form factor | 1U Rackmount |
Your research
You recently viewed
Frequently asked questions
How much does the QNAP TS-435XEU-4G 4-Bay NAS Enclosure cost?
This product is quoted per project. Send us your requirements and we will prepare a quotation.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN BHD.
Who manufactures the QNAP TS-435XEU-4G 4-Bay NAS Enclosure?
It is manufactured by QNAP. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
