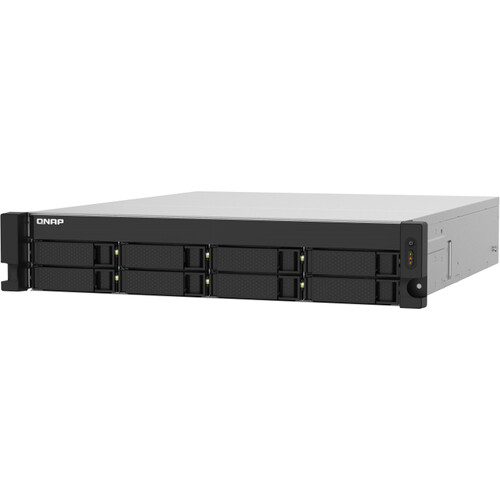

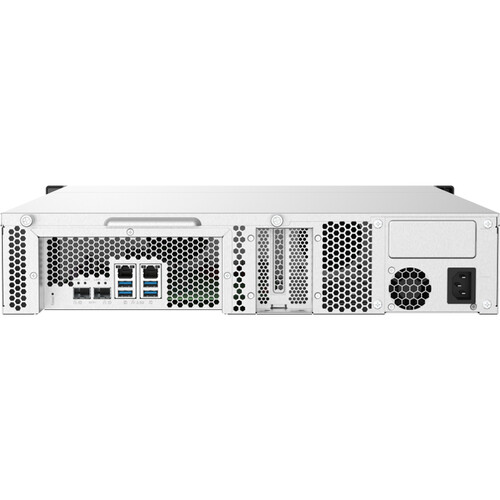

QNAP TS-832PXU-RP-4G 8-Bay NAS Enclosure
QNAP TS-832PXU-RP-4G 8-Bay NAS Enclosure - Key Features8 x 3.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | 2U Rackmount |
Product details
Key Features
- 8 x 3.5"/2.5" SATA III Drive Bays
- 1.7 GHz AL324 Cortex-A57 Quad-Core
- 4GB of DDR4 RAM
- 2 x 10GbE SFP+ | 2 x 2.5GbE RJ45
- 4 x USB 3.2 Gen 1 Type-A Ports
- RAID 0, 1, 5, 6, 10, 50, 60, and JBOD
- 1 x PCIe Gen 2 x2 Slot
- AES 256-Bit Encryption Engine
- Dual Redundant 250W Power Supplies
- QTS 5.0.0 Operating System
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor | |||
| CPU Architecture | 64-bit ARM | |||
| Floating Point Unit | ||||
| Encryption Engine | ||||
| System Memory | 4 GB UDIMM DDR4 (1 x 4 GB) | |||
| Maximum Memory | 16 GB (1 x 16 GB) | |||
| Memory Slot | 1 x UDIMM DDR4 | |||
| Flash Memory | 512 MB (Dual boot OS protection) | |||
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s | |||
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives | |||
| Hot-swappable | ||||
| M.2 Slot | Optional via a PCIe adapter | |||
| SSD Cache Acceleration Support | ||||
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) | |||
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ | |||
| Wake on LAN (WOL) | Only the 2.5GbE port | |||
| Jumbo Frame | ||||
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. Card dimensions for PCIe slot：220 x 68.9x 18.76 mm / 8.67 x 2.71 x 0.74 inches. | |||
| USB 3.2 Gen 1 port | 4 | |||
| Form Factor | 2U Rackmount | |||
| LED Indicators | HDD 1-8, Status, LAN, Storage expansion | |||
| Buttons | Power, Reset | |||
| Dimensions (HxWxD) | 88.6 × 432 × 511 mm Excludes ear hook and the protruding part of the Power Supply Unit. | |||
| Weight (Net) | 12.47 kg | |||
| Weight (Gross) | 14.61 kg | |||
| Operating Temperature | 0 - 40 °C (32°F - 104°F) | |||
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | |||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | |||
| Power Supply Unit | 250W (x2) PSU, 100 - 240V | |||
| Power Consumption: Operating Mode, Typical | 69.191 W Tested with drives fully populated. | |||
| Fan | 2 x 70mm, 12VDC | |||
| System Warning | Buzzer | |||
| Standard Warranty | 3 | |||
|
