Ruijie Reyee RG-EG105GW AC1300 Dual Band enterprise-grade wifi router
Buy Ruijie Reyee RG-EG105GW AC1300 Dual Band enterprise-grade wifi router, Ruijie from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Q...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Model | RG-EG105GW |
| Speed | AC1300 (1317Mbps) |
| Protocol | 802.11a/n/ac/ac Wave2 and 802.11b/g/n |
| Interface | 5 10/100/1000M Base-T ports, 1 USB2.0 port |
| RAM | 128MB |
Product details

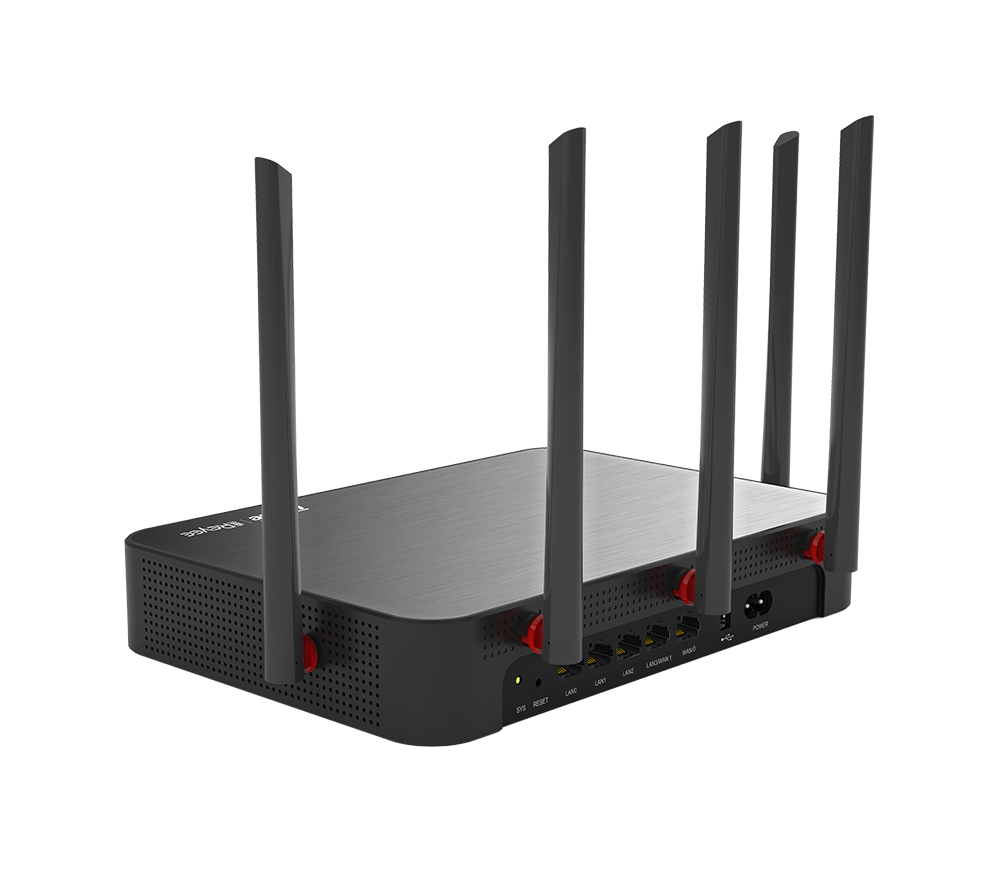

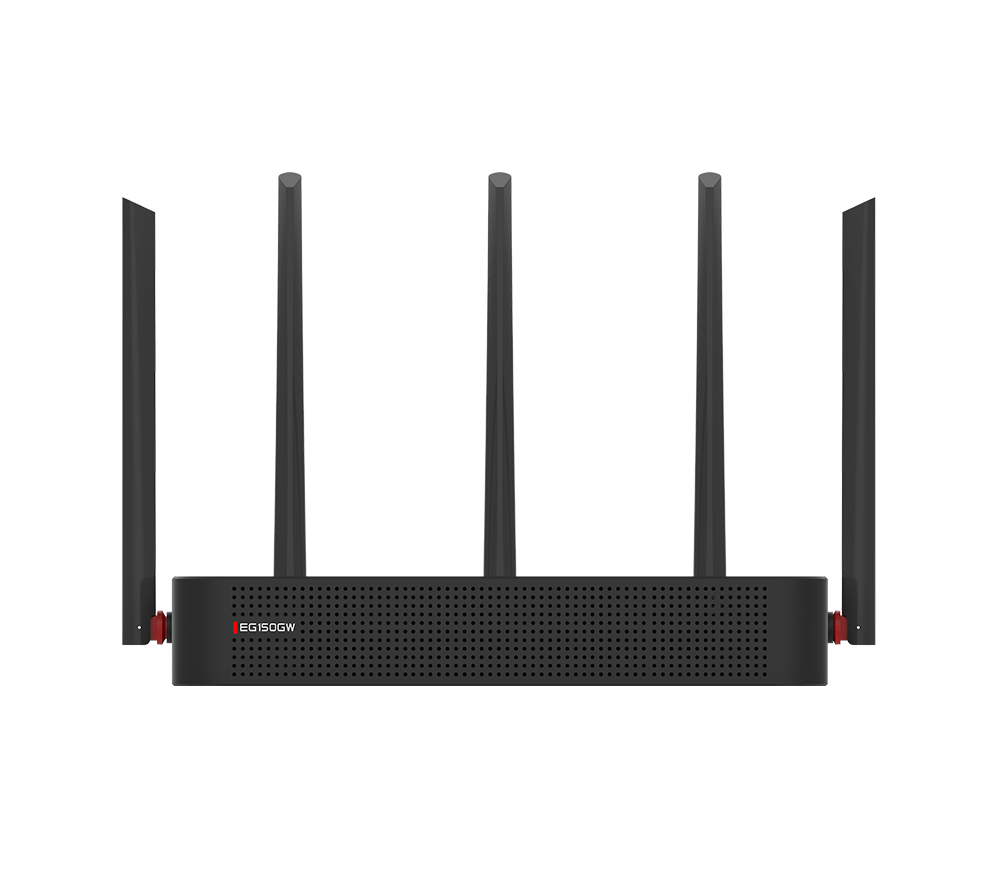

Reyee RG-EG105GW is a high-performance enterprise-grade all-in-one wireless router designed for small offices, retails, restaurant, coffee shop, etc. It provides abundant enterprise features, such as captive portal, dual WAN, VPNs, enterprise wireless, etc. Power on, business on.
Highlight Features：
- 1. All-in-one device which integrated switch, AP, portal, and router
- 2. Support 802.11ac Wave2, totally 1317Mbps with 5 antennas
- 3. Support unbreakable and load balancing multi-WAN internet
- 4. Easy to customize portal page, what you see is what you get
- 5. Secure access your internal device(NVR/IPC/Server…) remotely
- 6. Support 3 years warranty, and lifetime free cloud management
Model | RG-EG105GW |
Basic specifications | |
Fixed ports | 5 10/100/1000M Base-T ports，supporting up to 2 WAN ports （Default: 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port） 1 USB2.0 port |
RAM | 128MB |
Flash | 16MB |
Antenna | 3 2.4G blade antennas (maximum gain 5dBi) 2 5.8G blade antennas (maximum gain 5dBi) |
Protocol | Concurrent 802.11a/n/ac/ac Wave2 and 802.11b/g/n |
Operating bands | 2.4G:2.4G ~ 2.483GHz，5G: 5.150-5.350GHz，5.725-5.850 GHz |
Spatial streams | 5 spatial streams per router 3 spatial streams at 2.4GHz 2 spatial streams at 5GHz |
Maximum clients | Supports up to 100 concurrent clients Recommended number of wireless terminals: 60 |
Recommended bandwidth | 500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled) |
Local power supply | Support 220V AC local power supply |
Power consumption | <20W |
Basic network features | |
Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
Gateway | |
Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
Traffic audit | Real-time traffic audit, IP traffic visualization |
VPN | IPsec VPN (8 tunnels) server and client |
Wireless management | |
Management capacity | In gateway mode, the maximum management capacity is 32 |
AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
Switch management | |
Management capacity | Maximum manageable cloud managed switches: 128 |
Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
Device management | Per-device upgrade, batch upgrade |
Special features | |
Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution, wired relay solution (AP mode) |
Flexible management | Eweb and Ruijie Cloud |
Physical specifications | |
Dimensions | 250×170×42 (mm) |
Weight | 1.2kg |
Temperature | Operating temperature: -10°C～40°C |
Storage temperature: -40°C～70°C | |
Humidity | Operating humidity: 5％～95％(non-condensing) |
Storage humidity: 5％～95％(non-condensing) | |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Model | RG-EG105GW |
| Speed | AC1300 (1317Mbps) |
| Protocol | 802.11a/n/ac/ac Wave2 and 802.11b/g/n |
| Interface | 5 10/100/1000M Base-T ports, 1 USB2.0 port |
| RAM | 128MB |
| Flash | 16MB |
| Antenna | 5 blade antennas (3x 2.4G, 2x 5.8G) |
| Power Consumption | <20W |
