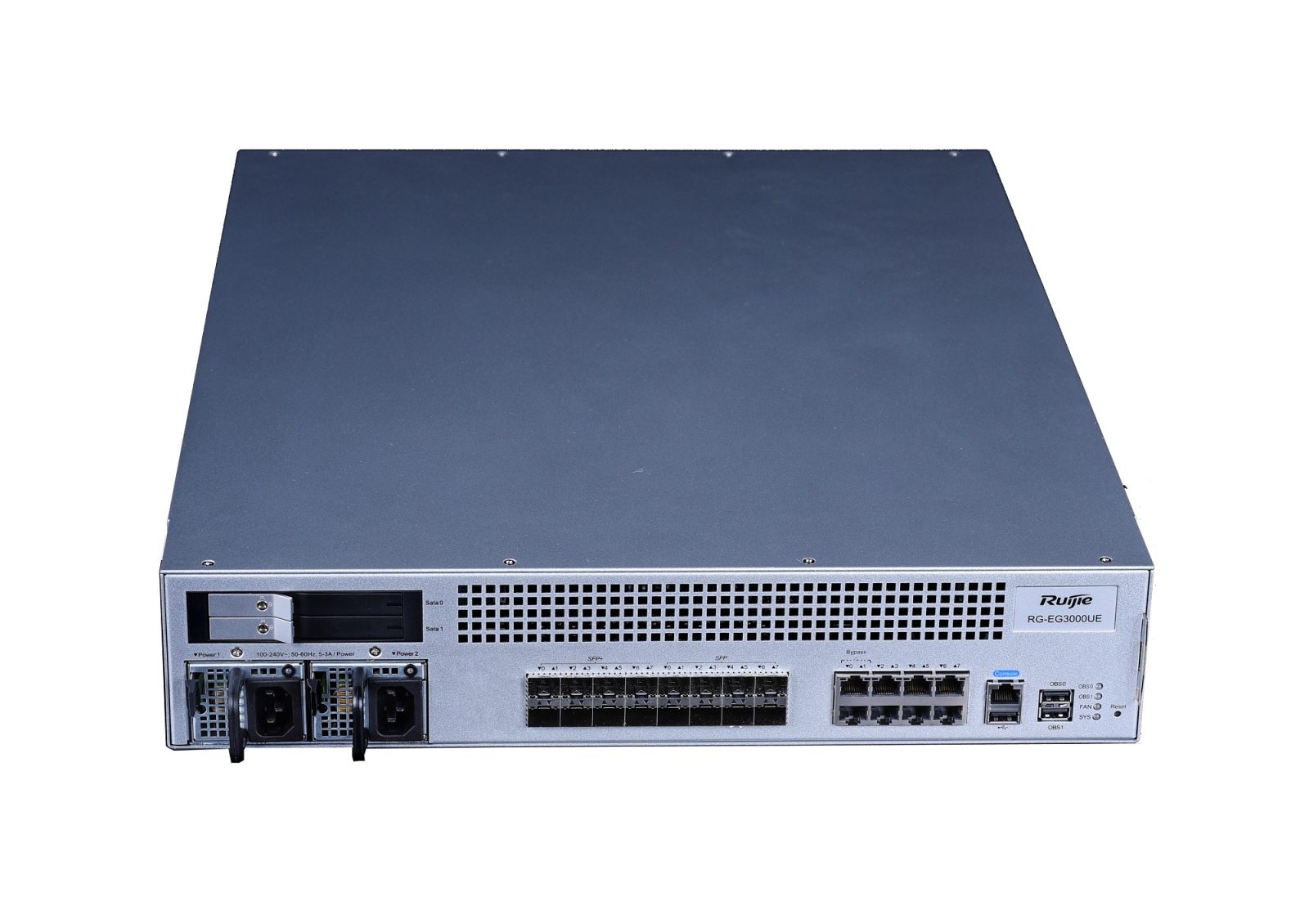

Ruijie Reyee RY-EG3000XE High-performance integrated Security Gateway

Model

RG-EG3000UE

RG-EG3000XE

Basic Features

CPU

Multi-core MIPS

Fixed Ports

8 GE combo ports

8 10G SFP+ ports

8 GE combo ports

8 10G SFP+ ports

2 40G QSFP+ ports

Hard Disk

1 hard disk slots

(hard disks sold separately)

1 hard disk slots

(hard disks sold separately)

Power Slots

2 (Power Supply Unit Included)

Power Redundancy

Yes (Hot Swappable)

Memory

32G

Copper Bypass

1 pair (2 ports)

Fiber Bypass

2

Management Ports

1 console port
1 USB 2.0 port

Dimensions
(W x D x H) (mm)

440*550*88.1

Rack Height

2U

Weight

14.3KG

Power Supply

AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50Hz to 60Hz

Power Consumption

<150W

MTBF

>200,000 Hours

Performance & Feature

Performance

42 Gbps (1518 bytes)

30 Gbps (512bytes)

8 Gbps (64 bytes)

60 Gbps (1518 bytes)

40 Gbps (512bytes)

11 Gbps (64 bytes)

Concurrent Session

8 Mils

16 Mils

Recommended Concurrent User

10K

20K

Portal Authentication Capacity

5K (Max Concurrent Users)

Portal Authentication Type

Username/Password Auth (Local, Windows-based AD/LDAP Integration)

One-click Authentication;

Guest Voucher (Ruijie Cloud required);

Seamless Authentication (Portal)

Support

Network Protocol

Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc.

Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF

Support DHCP Relay and DHCP Server
Support PPPoE
Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.

Support ARP, trusted ARP, proxy ARP, etc.

Support Ping and Traceroute fault detection
Support QoS (PQ, CQ, FIFO, WFQ, CBWFQ, etc.)

Application Visibility

Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification:

P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.

Multimedia: YouTube, Facebook Video, WebEx Conference & etc.

Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc.

VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.

Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc.

Software Update: Window, McAfee, Kaspersky, ESET & etc.

Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc.

Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.

Network Security

Anti-ARP Spoofing
Defense against malicious attacks from internal and external networks
Support secure address binding
Block WAN Ping
Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent ICMP Flood Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood Attack

URL Filtering

Support HTTP/HTTPS domain filtering
Support remote HTTP automatic URL library upgrade
Local log storage (NAT log, traffic log, URL log, etc.)
Support storage on external log server

WAN Load Balancing

Support

High Availability

VRRP

RIP (Graceful Restart)

OSPF (Graceful Restart)

IPsec VPN Tunnel

4000

4000

Layer 2 Features

Support Bridging

Support LAN Port Aggregation

Ruijie Cloud Integration Feature

Support device health monitoring status

Support centralized configuration change management & backup

Support Top 10 Application/User traffic visualization

Support device firmware management

Support event-based alarm notification

Other Features

Support web authentication
Support push advertising page
Support IPsec VPN
Support smart DNS
Support multi-link load balancing
Support remote HTTP online upgrade for signature library, software version, etc.

Service and Support

Support multi-link load balancing

Support remote HTTP online upgrade for signature library, software version, etc.

Lifetime Free signature library upgrade
