RUIJIE RG-S6120-20XS4VS2QXS ENT MANAGED SWITCH, 20 SFP+ PORTS 4 SFP28 PORTS 2 QSFP+ PORTS, 2 POWER SUPPLY SLOT
Buy RUIJIE RG-S6120-20XS4VS2QXS ENT MANAGED SWITCH, 20 SFP+ PORTS 4 SFP28 PORTS 2 QSFP+ PORTS, 2 POWER SUPPLY SLOT, Ruijie from Printer Bullet - Everything for...
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Fixed Ports | 20 SFP+ ports, 4 SFP28 ports, 2 QSFP+ ports |
| Switching Capacity | 2.56T/23.04T |
| Packet Forwarding Rate | 570Mpps/1260Mpps |
| Port Buffer | 4MB |
| MAC Address Table | Up to 32K |
Product details
RG-S6120-20XS4VS2QXS 10G Switches
RG-S6120 series switches are next-generation 10G Ethernet switches with high performance and high security newly launched by Ruijie. Adopting advanced hardware architecture design and Ruijie's new RGOS gen 12th modular operating system, the switches provide faster hardware processing performance and more convenient operating experience.
RG-S6120 series provides maximum 32 10G fiber access and supports high-performance 10/25/40G port uplink, which fully meets the user requirements of high-density access and high-performance aggregation.
RG-S6120 series switches provide high-performance and comprehensive end-to-end QoS, as well as flexible and feature-rich security settings for large-scale network aggregation as well as small and medium-sized network cores, meeting the needs of high-speed, high-security and smart enterprise networks.

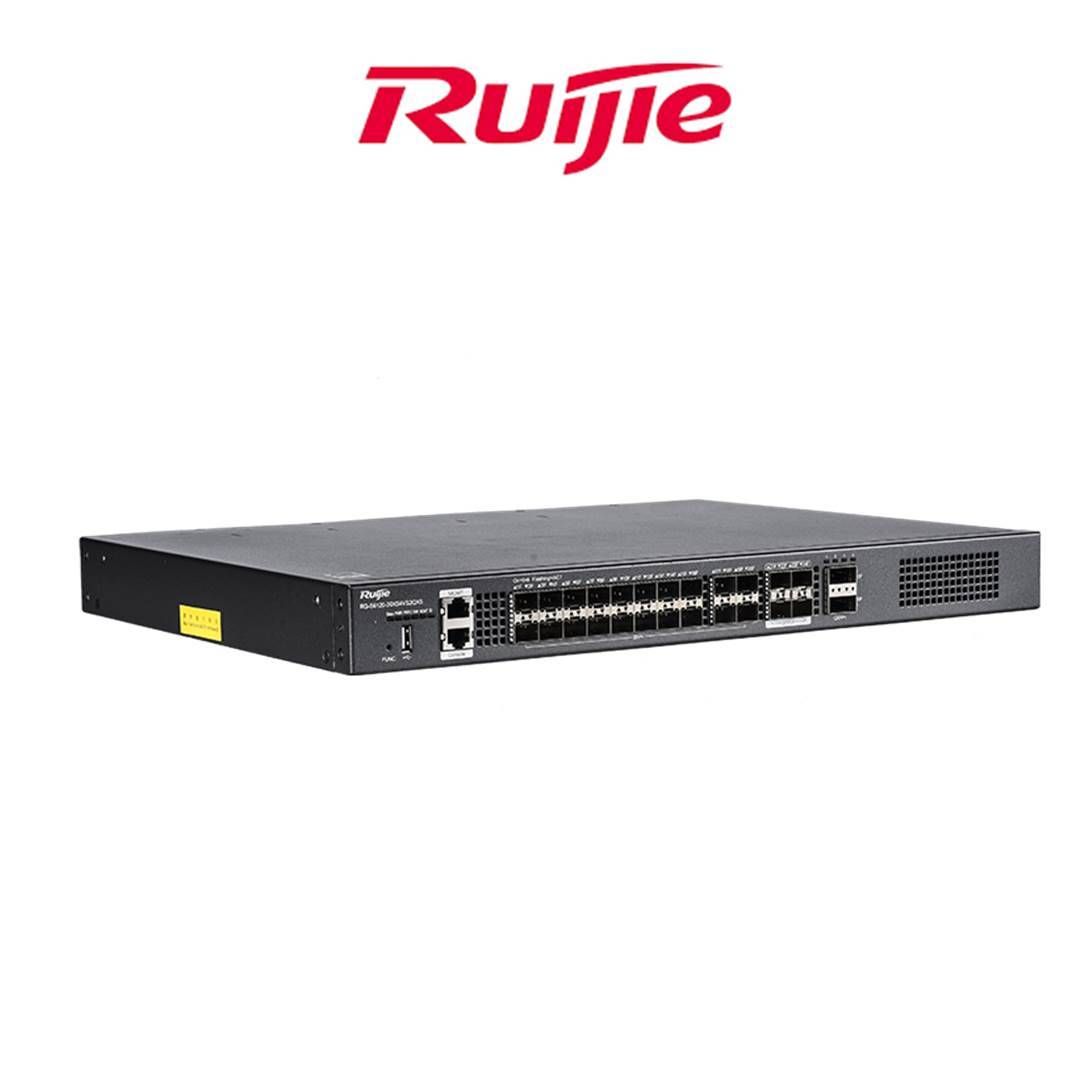

RG-S6120-20XS4VS2QXS Front (above) and Rear (bottom) product view
Model | RG-S6120-20XS4VS2QXS | |
|---|---|---|
Basic specifications | ||
Fixed ports | 20 1G/10GBASE-X SFP+ ports, 4 10G/25GBASE-X SFP28 ports, 2 40GBASE-X QSFP+ ports, Support up to 32 10G ports, 2 modular power slots, 2 modular fan slots | |
Management ports | 1 MGMT port 1 console port | |
Switching capacity | 2.56T/23.04T | |
Packet forwarding rate | 570Mpps/1260Mpps | |
Port Buffer | 4MB | |
ARP Table | Up to 16K | |
MAC Address | Up to 32K | |
Routing Table Size | 4K/4K | |
ACL Entries | Up to 2500 | |
Product Features | ||
VLAN | 4K 802.1Q VLAN Port-based VLAN Private VLAN GVRP Super VLAN | |
QinQ | Basic QinQ | |
Link aggregation | LACP (802.3ad) | |
Port mirroring | Flow-based mirroring Many-to-one mirroring, One-to-many mirroring RSPAN Link aggregation mirroring | |
Multiple Spanning Tree (MST) Instances | 64 | |
Spanning tree protocols | STP, RSTP, MSTP | |
Maximum Aggregation Port (AP) | 128 | |
DHCP | DHCP Server DHCP Client DHCP Snooping DHCP Relay IPv6 DHCP Snooping IPv6 DHCP Client IPv6 DHCP Relay | |
IPv6 protocols | IPv6 addressing, ICMPv6, Path MTU Discovery | |
IP routing | Static routing RIP, RIPng OSPFv2, OSPFv3, IS-ISv4, IS-ISv6 BGP4, BGP4+ ECMP | |
Multicast | IGMP v1/v2/v3, IGMP proxy IGMP v1/v2/v3 snooping IGMP filtering, IGMP fast leave PIM-DM, PIM-SM, PIM-SSM MLD Snooping, MLD MSDP | |
ACL & QoS | ACL | Various hardware-based ACLs: Standard IP ACL (Based on IP address) Extended IP ACL (Based on IP address and TCP/UDP port number) Extended MAC ACL (Based on source and destination MAC addresses and Ethernet type) Time-based ACL Expert ACL (Based on the flexible combination of VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port, protocol type and time) ACL80 IPv6 ACL |
QoS | Port-based traffic recognition Port-based speed limit 802.1p/DSCP/TOS traffic classification 8 priority queues per port Queue scheduling algorithms: SP, WRR, DRR, SP+WRR, SP+DRR, RED/WRED | |
Security | Filter unauthorized MAC addresses Broadcast storm suppression Hierarchical management by administrators and password protection RADIUS and TACACS+ SSH BPDU Guard CPP, NFPP | |
Management | SNMP, CLI (Telnet/Console), RMON (1,2,4,9), Syslog, NTP, SNMP over IPv6, IPv6 MIB support for SNMP, Telnet v6, FTP/TFTP v6, DNS v6, NTP for v6, Traceroute v6 Support sFlow to sample the packets of the switch traffic using the random sampling technology of data stream | |
Reliability | VSU (virtualization technology for virtualizing multiple devices into 1); GR for RIP/OSPF/BGP; BFD; G.8032 (ERPS), REUP; RLDP; 1+1 power redundancy; Hot-swappable power module and fan module | |
VSU (Virtual Switch Unit) | Up to 2 stack members | |
Physical Specifications | ||
Power supply | Supported power module: RG-PA150I-F AC input: 100 to 240VAC; 50/60Hz Maximum voltage range: 90 to 264VAC; 47/63Hz HVDC input: Maximum voltage range: 192 to 288 VDC Rated current per input: 3A | |
Power Consumption | <85W | |
Power Surge Protection | 4KV (MGMT Port) Power Supply Module (RG-PA150I-F): common mode 6KV/difference mode 6KV | |
Fan | Support 2 pluggable modular fans with front and rear air ducts Support fan speed adjustment and malfunction alert | |
Temperature alarm | Support temperature alarm function | |
Temperature | Operating temperature: 0°C to 50°C Storage temperature: -40°C to 70°C | |
Humidity | Operating humidity: 10% to 90%RH Storage humidity: 5% to 90%RH | |
Operating Altitude | 0 to 5,000m | |
Dimensions (W x D x H) (mm) | 440 * 330 * 43.6（W * D * H，mm） | |
Rack Height | 1RU | |
MTBF | 30 Years | |
Safety Standards | GB4943-2011 EN 62368-1:2014+A11:2017 | |
Emission Standards | GB9254-2008 CLASSA EN 55032:2015+AC:2016 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 EN 55035:2017 ETSI EN 300 386 V2.1.1 (2016-07) | |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Fixed Ports | 20 SFP+ ports, 4 SFP28 ports, 2 QSFP+ ports |
| Switching Capacity | 2.56T/23.04T |
| Packet Forwarding Rate | 570Mpps/1260Mpps |
| Port Buffer | 4MB |
| MAC Address Table | Up to 32K |
| Power Supply Slots | 2 modular power slots |
| Management Ports | 1 MGMT port, 1 console port, 1 USB port |
| VLAN Support | 4K 802.1Q VLAN |
