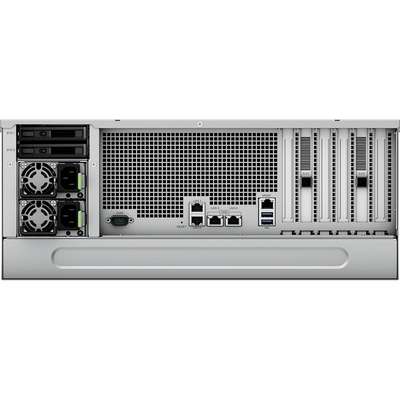

Synology 60-Bay Rackmount High Density Storage Server HD6500 2.5" SATA SSD NAS
CPUCPU ModelIntel Xeon Silver 4210RCPU Quantity2CPU Architecture64-bitCPU Frequency10-core 2.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Rackmount |
Product details
CPU | ||
|---|---|---|
| CPU Model | Intel Xeon Silver 4210R | |
| CPU Quantity | 2 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 10-core 2.4 (base) / 3.2 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ✓ | |
Memory | ||
| System Memory | 64 GB DDR4 ECC RDIMM | |
| Memory Module Pre-installed | 64 GB (32 GB x 2) | |
| Total Memory Slots | 16 | |
| Maximum Memory Capacity | 512 GB (32 GB x 16) | |
| Notes |
| |
Storage | ||
| Drive Bays | 60 | |
| Maximum Drive Bays with Expansion Unit | 300 (RX6022sas x 4) | |
| SAS multipathing | ✓ | |
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive* | ✓ | |
| Notes |
| |
External Ports | ||
| RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) | |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) | |
| Management LAN Port | 1 | |
| Max. number of LAN ports | 15 | |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 2 | |
| Notes |
| |
PCIe | ||
| PCIe Expansion |
| |
File System | ||
| Internal Drives |
| |
| External Drives |
| |
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
Appearance | ||
| Form Factor (RU) | 4U | |
| Size (Height x Width x Depth) | 176 mm x 482 mm x 1020 mm | |
| Weight | 37.9 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-03) | |
Others | ||
| System Fan | 80 mm x 80 mm x 4 pcs | |
| Fan Speed Mode |
| |
| Easy Replacement System Fan | ✓ | |
| Power Recovery | ✓ | |
| Noise Level* | 60.8 dB(A) | |
| Scheduled Power On / Off | ✓ | |
| Wake on LAN / WAN | ✓ | |
| Power Supply Unit / Adapter | 1600 W | |
| Redundant Power Supply | ✓ | |
| AC Input Power Voltage | 200V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 1025.2 W (Access) 418 W (HDD Hibernation) | |
| British Thermal Unit | 3495.93 BTU/hr (Access) 1425.38 BTU/hr (HDD Hibernation) | |
| Notes |
| |
Temperature | ||
| Operating Temperature | 0°C to 35°C (32°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification | ||
| ||
Warranty | ||
| 5 Years | ||
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
Optional Accessories | ||
