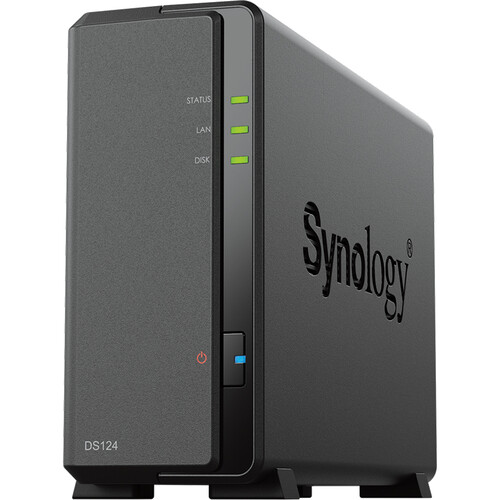

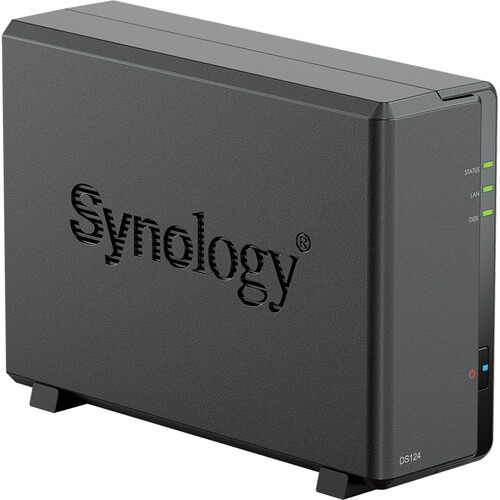

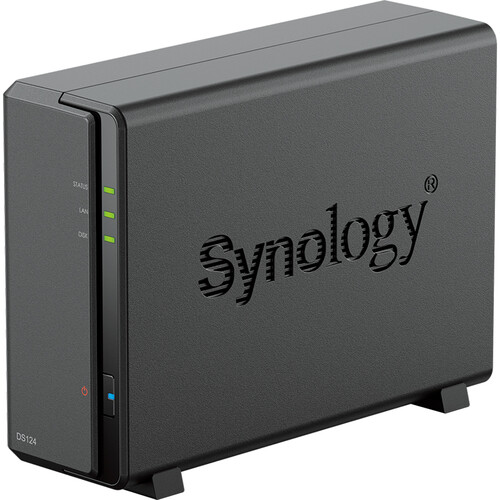

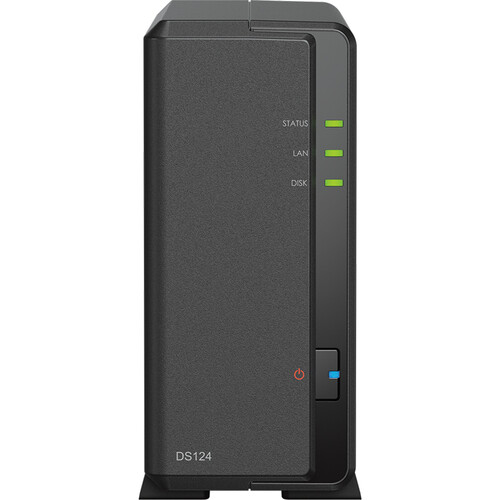

Synology DiskStation DS124 1-Bay NAS Enclosure
Synology DiskStation DS124 1-Bay NAS Enclosure - Key Features1 x 3.
MYR 699.00
— buy online, or request a project quotation
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Tower |
Product details
Key Features
- 1 x 3.5/2.5" SATA HDD/SSD Drive Bay
- 1.7 GHz Realtek RTD1619B Quad-Core
- 1GB DDR4 RAM
- 1 x Gigabit Ethernet Port
- 2 x USB-A 3.2 Gen 1 Ports
- RAID Basic
- Hardware Encryption Engine
- 60mm Cooling Fan
- Synology DiskStation Manager OS
CPU | ||
|---|---|---|
| CPU Model | Realtek RTD1619B | |
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 1.7 GHz | |
| Hardware Encryption Engine | ||
Memory | ||
| System Memory | 1 GB DDR4 non-ECC | |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
Storage | ||
| Drive Bays | 1 | |
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive* | - | |
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |

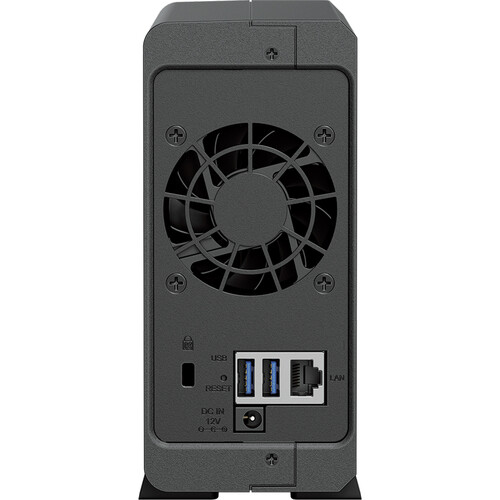

External Ports | ||
| RJ-45 1GbE LAN Port | 1 | |
| USB 3.2 Gen 1 Port* | 2 | |
| Notes |
| |
File System | ||
| Internal Drives |
| |
| External Drives |
| |
Appearance | ||
| Size (Height x Width x Depth) | 166 mm x 71 mm x 224 mm | |
| Weight | 0.7 kg | |
Others | ||
| System Fan | 60 mm x 60 mm x 1 pcs | |
| Fan Speed Mode |
| |
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 19.0 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 36 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 10.69 W (Access) 3.44 W (HDD Hibernation) | |
| British Thermal Unit | 36.50 BTU/hr (Access) 11.75 BTU/hr (HDD Hibernation) | |
| Notes |
| |
Temperature | ||
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification | ||
| ||
Warranty | ||
| 2-year hardware warranty, extendable to 4 years with Extended Warranty Plus | ||
| Notes |
| |
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
Optional Accessories | ||
| 3.5" SATA HDD: HAT3300 | ||
