Synology DiskStation DS423 4-Bay NAS Enclosure

Name: Synology DiskStation DS423 4-Bay NAS Enclosure
Brand: Synology
SKU: PRD-202607-4666

Key Features4 x 3.

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Form factor	Tower

Full specifications ↓

Product details

Key Features

4 x 3.5/2.5" SATA HDD/SSD Drive Bays
Realtek RTD1619B Quad-Core
2GB of DDR4 RAM
2 x Gigabit Ethernet Ports
2 x USB-A 3.2 Gen 1 Ports
RAID 0, 1, 5, 6, 10, JBOD, Basic, Hybrid
Synology DiskStation Manager OS


CPU
CPU Model	Realtek RTD1619B
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	4-core 1.7 GHz
Hardware Encryption Engine
Memory
System Memory	2 GB DDR4 non-ECC
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays	4
Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD
Hot Swappable Drive*
Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

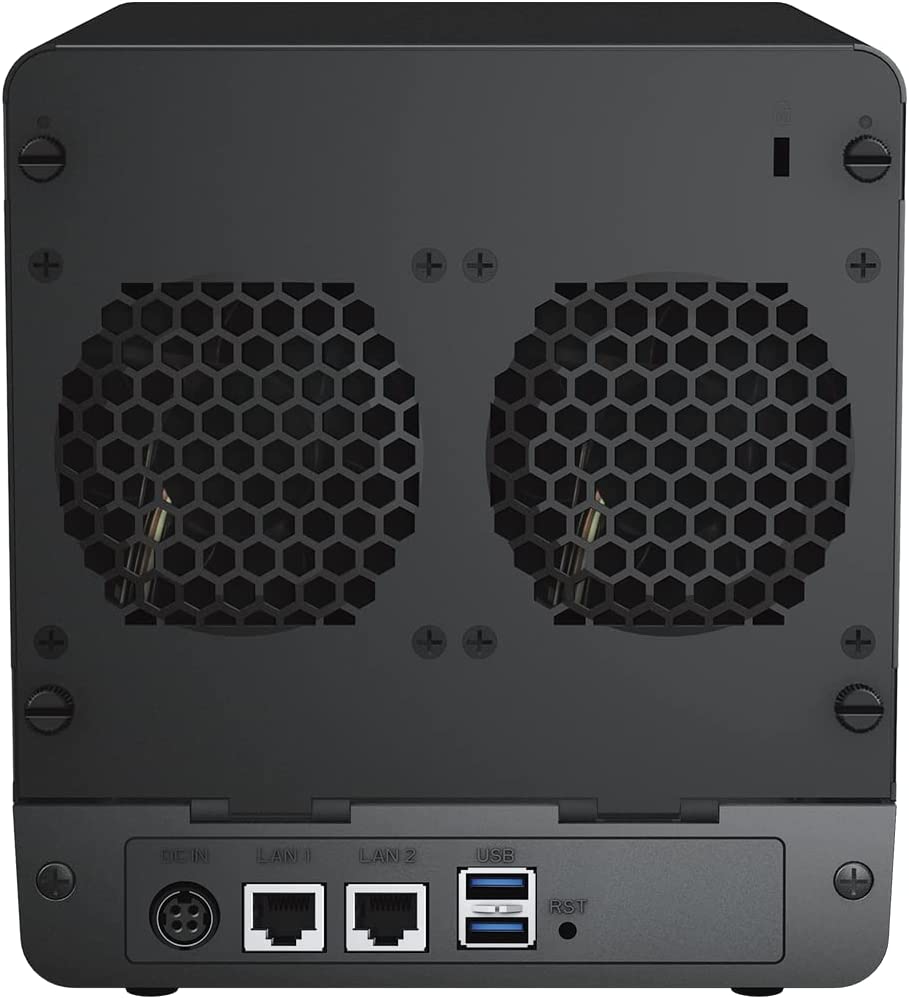

External Ports
RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*	2
Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance
Size (Height x Width x Depth)	184 mm x 168 mm x 230 mm
Weight	2.21 kg
Others
System Fan	80 mm x 80 mm x 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level*	20.6 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter	90 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	32.41 W (Access) 4.97 W (HDD Hibernation)
British Thermal Unit	110.52 BTU/hr (Access) 16.95 BTU/hr (HDD Hibernation)
Notes	For more information on how power consumption is measured, refer to this article. Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification
FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty
2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
RoHS Compliant
Packaging Content
Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories
3.5" SATA HDD: HAT5300/HAT3300 2.5" SATA SSD: SAT5210 Surveillance Device License Pack
