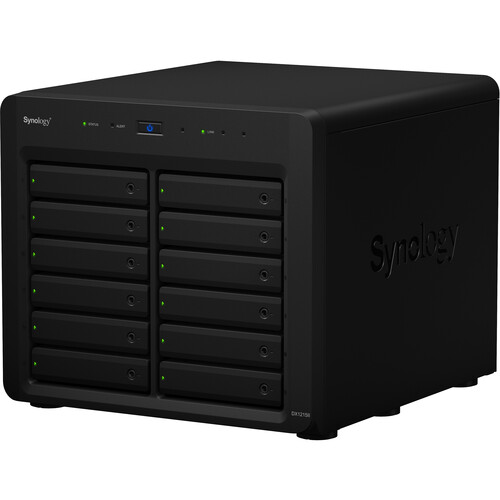

Synology DX1215II 12-Bay Expansion Unit
Synology DX1215II 12-Bay Expansion Unit - Key FeaturesFor Select Synology DiskStation Servers12 x 3.
MYR 5,699.00
— buy online, or request a project quotation
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Tower |
Product details
Key Features
- For Select Synology DiskStation Servers
- 12 x 3.5" or 2.5" SATA Drive Bays
- Supports Hard Drives and SSDs
- Seamless Storage Expansion
- Plug-and-Play Design
- Optimized for Use with Synology Drives
Applied Models | ||
|---|---|---|
| Supports creating volumes across different units |
| |
| Notes |
| |
Storage | ||
| Drive Bays | 12 | |
| Compatible Drive Type* (See all supported drives) |
| |
| Maximum Internal Raw Capacity | 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) | |
| Hot Swappable Drive* | ✓ | |
| RAID Management through Synology DSM | ✓ | |
| Notes | It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. | |
External Ports | ||
| Expansion Port | 1 | |
Appearance | ||
| Size (Height x Width x Depth) | 270 mm x 300 mm x 340 mm | |
| Weight | 9.02 kg | |
Power | ||
| Power Recovery | Synchronized with the Synology DiskStation | |
| Power Supply Unit / Adapter | 550 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 51.23 W (Access) 21.71 W (HDD Hibernation) | |
| British Thermal Unit | 174.69 BTU/hr (Access) 74.03 BTU/hr (HDD Hibernation) | |
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). | |
Temperature | ||
| Operating Temperature | 5°C to 35°C (40°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Others | ||
| System Fan | 120 mm x 120 mm x 2 pcs | |
| Easy Replacement System Fan | ✓ | |
| Noise Level* | 27.2 dB(A) | |
| Notes | Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%. | |
Certification | ||
| ||
Warranty | ||
| 5 Years | ||
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment & Packaging | ||
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
