Synology · NAS & Storage

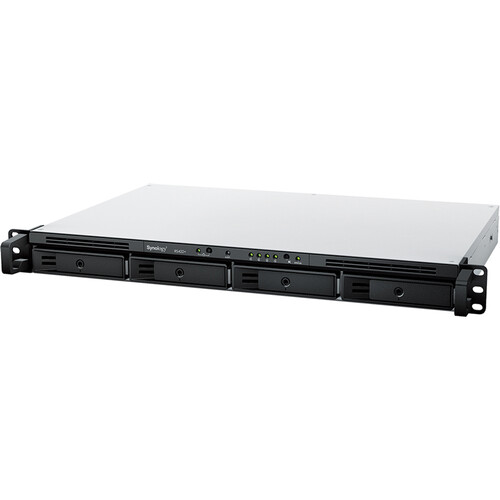

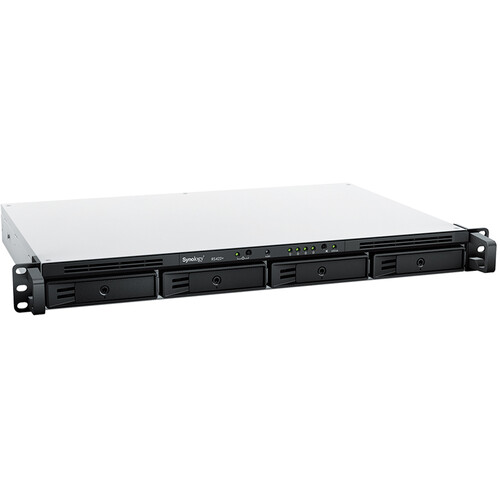

Synology RackStation RS422+ 4-Bay 3.5" SATA HDD NAS
Synology RackStation RS422+ 4-Bay 3.5" SATA HDD NAS - Key Features4 x 2.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Rackmount |
Product details
Key Features
| ||
|---|---|---|
CPU | ||
| CPU Model | AMD Ryzen R1600 | |
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2-core 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ✓ | |
Memory | ||
| System Memory | 2 GB DDR4 ECC | |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
Storage | ||
| Drive Bays | 4 | |
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive* | ✓ | |
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |
External Ports | ||
| RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) | |
| USB 3.2 Gen 1 Port* | 1 | |
| Notes |
| |
PCIe | ||
| PCIe Expansion | 1 x Gen3 x2 network upgrade slot | |
File System | ||
| Internal Drives |
| |
| External Drives |
| |
Appearance | ||
| Form Factor (RU) | 1U | |
| Size (Height x Width x Depth) | 44 mm x 478 mm x 327.5 mm | |
| Weight | 4.38 kg | |
| Rack Installation Support* | ||
| Notes | The rail kit is sold separately | |
Others | ||
| System Fan | 40 mm x 40 mm x 3 pcs | |
| Fan Speed Mode |
| |
| Power Recovery | ✓ | |
| Noise Level* | 28.5 dB(A) | |
| Scheduled Power On / Off | ✓ | |
| Wake on LAN / WAN | ✓ | |
| Power Supply Unit / Adapter | 100 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 37.93 W (Access) 13.43 W (HDD Hibernation) | |
| British Thermal Unit | 129.42 BTU/hr (Access) 45.83 BTU/hr (HDD Hibernation) | |
| Notes |
| |
Temperature | ||
| Operating Temperature | 0°C to 35°C (32°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification | ||
| ||
Warranty | ||
| 3-year hardware warranty, extendable to 5 years with EW201 | ||
| Notes |
| |
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
Optional Accessories | ||
| Notes | Certain items may not be available in your location. Please contact your local distributors for more information. | |
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Compute Specs | |
|---|---|
| Form factor | Rackmount |
Your research
You recently viewed
Frequently asked questions
How much does the Synology RackStation RS422+ 4-Bay 3.5" SATA HDD NAS cost?
This product is quoted per project. Send us your requirements and we will prepare a quotation.
Is this product available in Malaysia?
Yes — available to order. Supplied and installed nationwide by RYZEN ESOLUTIONS (M) SDN BHD.
Who manufactures the Synology RackStation RS422+ 4-Bay 3.5" SATA HDD NAS?
It is manufactured by Synology. We supply genuine units with manufacturer warranty.
Do you provide installation and support?
Yes — we design, install, configure and support this product as part of a complete solution. Ask us about maintenance packages.
