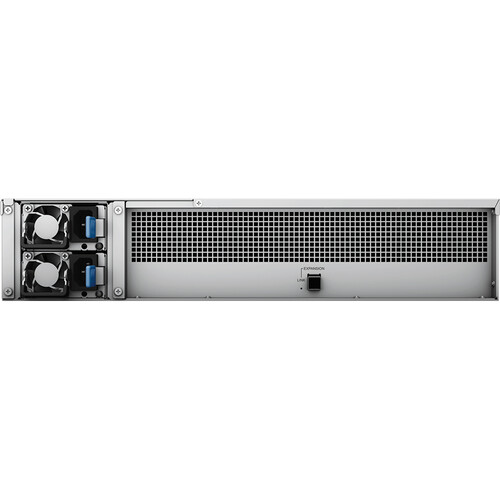

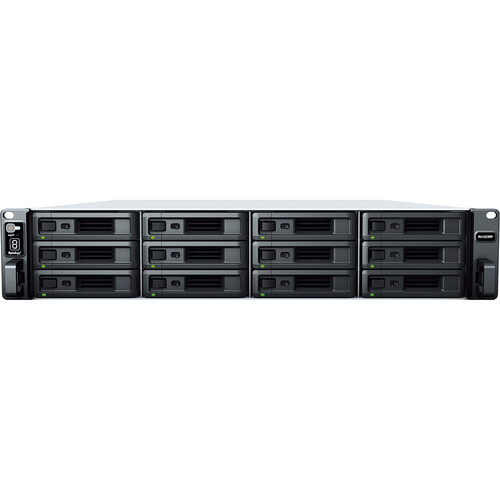

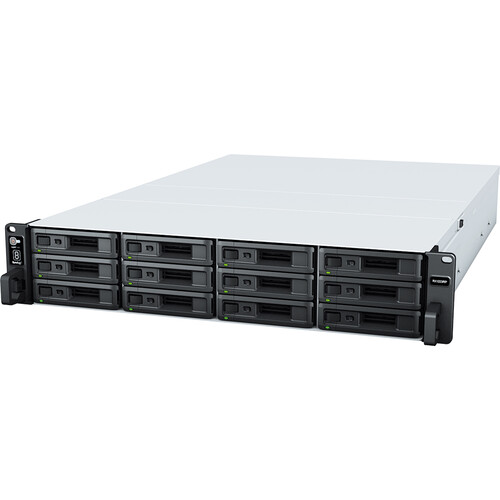

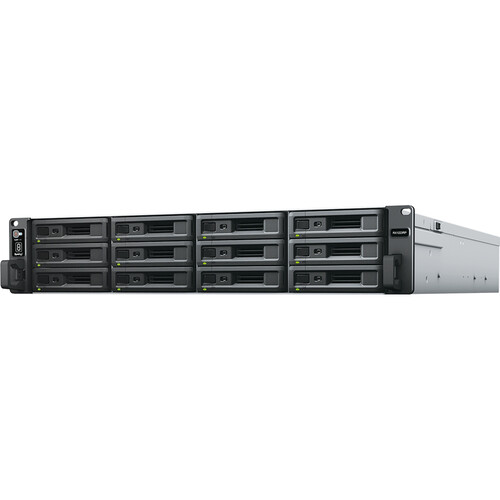

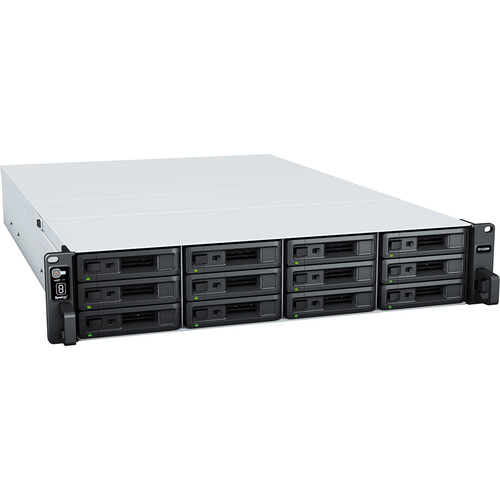

Synology RX1223RP 12-Bay Expansion Enclosure
Key FeaturesFor Synology NAS Enclosures12 x 3.
MYR 11,139.00
— buy online, or request a project quotation
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Form factor | Rackmount |
Product details
Key Features
- For Synology NAS Enclosures
- 12 x 3.5"/2.5" SATA Drive Bays
- 1 x Mini-SAS HD Expansion Port
- Hot-Swappable Drives
- Dual Redundant Power Supplies
- Supports Hard Drives and SSDs
- Plug-and-Play Design
- 2 RU Form Factor
Applied Models | ||
|---|---|---|
| Supports creating volumes across different units | SA6400 | |
| Notes | To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. | |
Storage | ||
| Drive Bays | 12 | |
| Compatible Drive Type* (See all supported drives) |
| |
| Maximum Internal Raw Capacity | 216 TB (18 TB drive x 12) (Capacity may vary by RAID types) | |
| Hot Swappable Drive* | ✓ | |
| RAID Management through Synology DSM | ✓ | |
| Notes |
| |
External Ports | ||
| Expansion Port | 1 | |
Appearance | ||
| Size (Height x Width x Depth) | 88 mm x 430.5 mm x 692 mm | |
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 724 mm | |
| Weight | 13.9 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
Power | ||
| Power Recovery | Synchronized with the Synology RackStation | |
| Power Supply Unit / Adapter | 550 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 93.59 W (Access) 30.73 W (HDD Hibernation) | |
| British Thermal Unit | 319.34 BTU/hr (Access) 104.86 BTU/hr (HDD Hibernation) | |
| Redundant Power Supply (for RP model) | ✓ | |
| Notes | For more information on how power consumption is measured, refer to this article. | |
Temperature | ||
| Operating Temperature | 0°C to 35°C (32°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Others | ||
| System Fan | 80 mm x 80 mm x 4 pcs | |
| Easy Replacement System Fan | ✓ | |
| Noise Level* | 54.3 dB(A) | |
| Notes | Noise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | |
Certification | ||
| ||
Warranty | ||
| 5 Years | ||
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment & Packaging | ||
Environment | ||
| RoHS Compliant | ||
Packaging Content | ||
| ||
Optional Accessories | ||
