Synology Sliding Rail Kit RKS-02
Synology Rail Kit RKS-02 enables easy maintenance access for Synology rackmount models.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Mount Post Width | equal to or greater than 450 mm |
| Panel Width | equal to or greater than 480 mm |
| Rack Mounting Depth | 610 mm to 890 mm |
| Square Hole Support | at least 9.5 mm x 9.5 mm |
| Round Hole Support | at least 7.1 mm |
Product details
Synology Rail Kit RKS-02 enables easy maintenance access for Synology rackmount models. RKS-02 is backed by Synology's 1-year limited warranty.

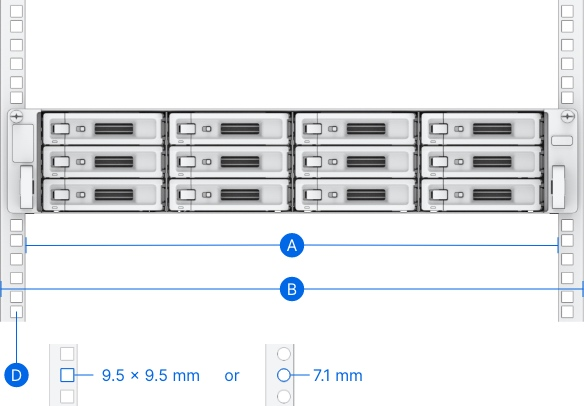

Installation requirements
- Mount post width must be equal to or greater than 450 mm
- Panel width must be equal to or greater than 480 mm

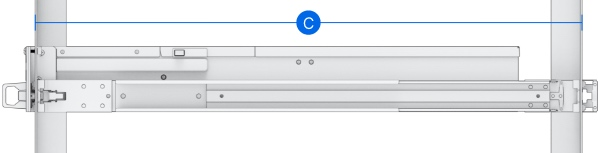

- Rack mounting depth: 610 mm to 890 mm
- Rack mounting hole support:
- square hole: at least 9.5 mm x 9.5 mm
- round hole: at least 7.1 mm
Compatibility :
- FS series:FS6400, FS3600, FS3400, FS3017, FS2017, FS3410
- SA series:SA3600, SA3400, SA3200D
- UC series:UC3200
- 22 series:RS822RP+, RS822+, RS422+, RX1222sas
- 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, FX2421
- 20 series:RS820RP+, RS820+
- 19 series:RS1619xs+, RS1219+, RS819, RXD1219sas
- 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418
- 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, RX2417sas, RX1217sas, RX1217RP, RX1217
- 16 series:RS18016xs+, RS2416RP+, RS2416+, RS816, RX1216sas
- 15 series:RS815RP+, RS815+, RS815, RC18015xs+, RXD1215sas, RX415
- 14 series:RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+, RS814, RX1214RP, RX1214
- 13 series:RS10613xs+, RS3413xs+, RX1213sas
- 12 series:RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, RS812
- 11 series:RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, RS411, RX1211RP, RX1211
- 10 series:RS810RP+, RS810+, RX410
- 9 series:RS409RP+, RS409+, RS409, RX4
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Need help choosing?
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Mount Post Width | equal to or greater than 450 mm |
| Panel Width | equal to or greater than 480 mm |
| Rack Mounting Depth | 610 mm to 890 mm |
| Square Hole Support | at least 9.5 mm x 9.5 mm |
| Round Hole Support | at least 7.1 mm |
| Warranty | 1-year limited warranty |
