Ubiquiti UniFi Nano-HD 4x4 MU-MIMO Wi-Fi 5 PoE Access Point
Ubiquiti UniFi Nano-HD 4x4 MU-MIMO Wi-Fi 5 PoE Access Point -
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Wi-Fi Standard | 802.11ac Wave 2 |
| Aggregate Throughput | 2+ Gbps |
| 5 GHz Throughput | 1.733 Gbps |
| 2.4 GHz Throughput | 300 Mbps |
| Concurrent Clients | 200+ |
Product details
- Four-stream, 802.11ac Wave 2 WiFi technology
- 5 GHz (4x4 MU-MIMO) band with a 1.733 Gbps throughput rate
- 2.4 GHz (2x2 MIMO) band with a 300 Mbps throughput rate
- 200+ concurrent client capacity
- Powered by 802.3af PoE (PoE injector included with single pack)

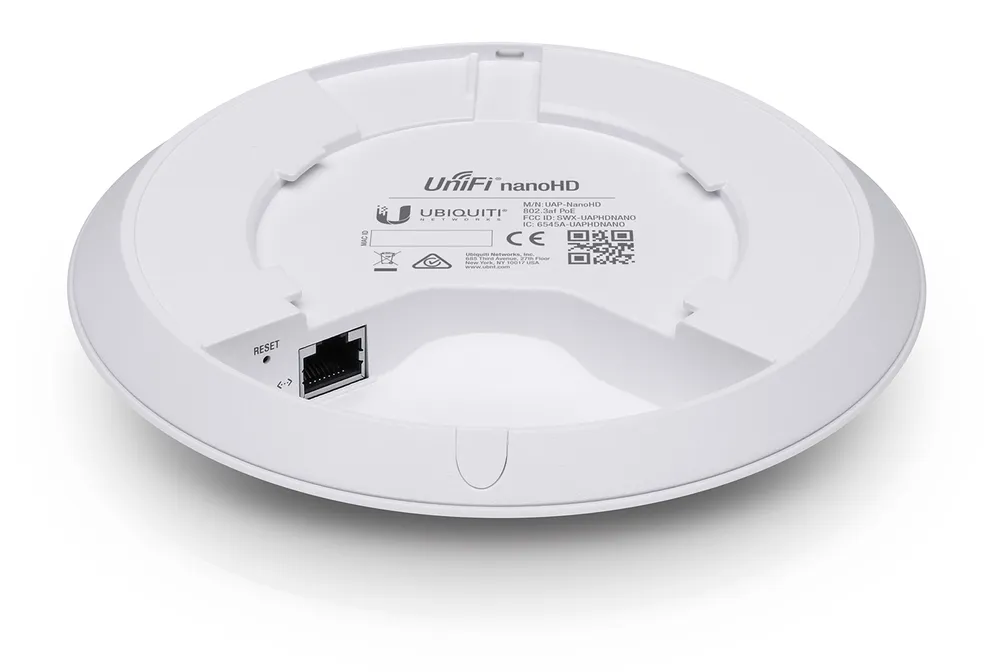

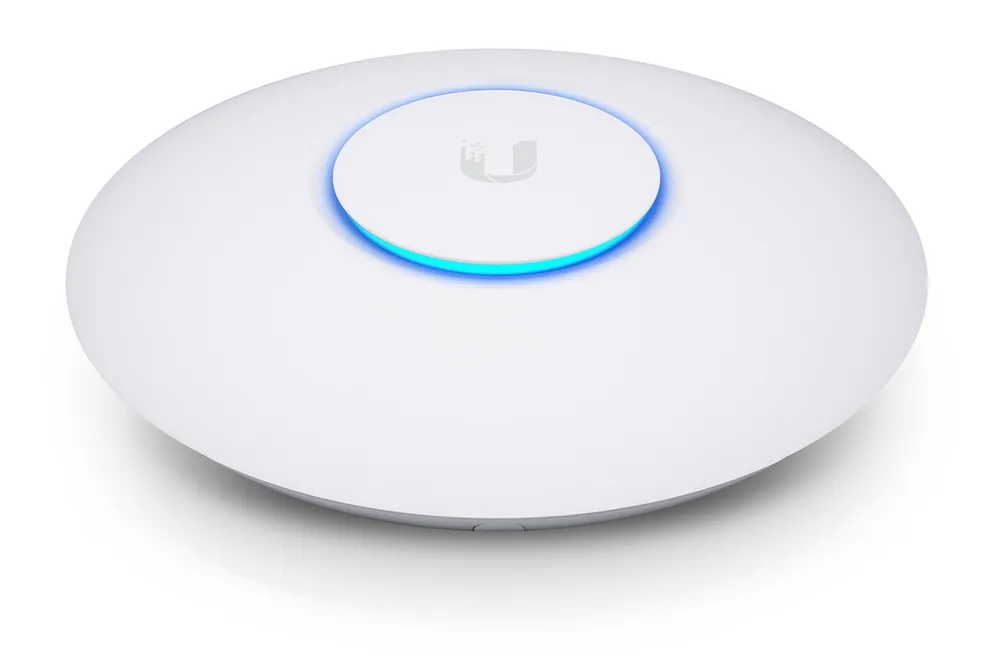

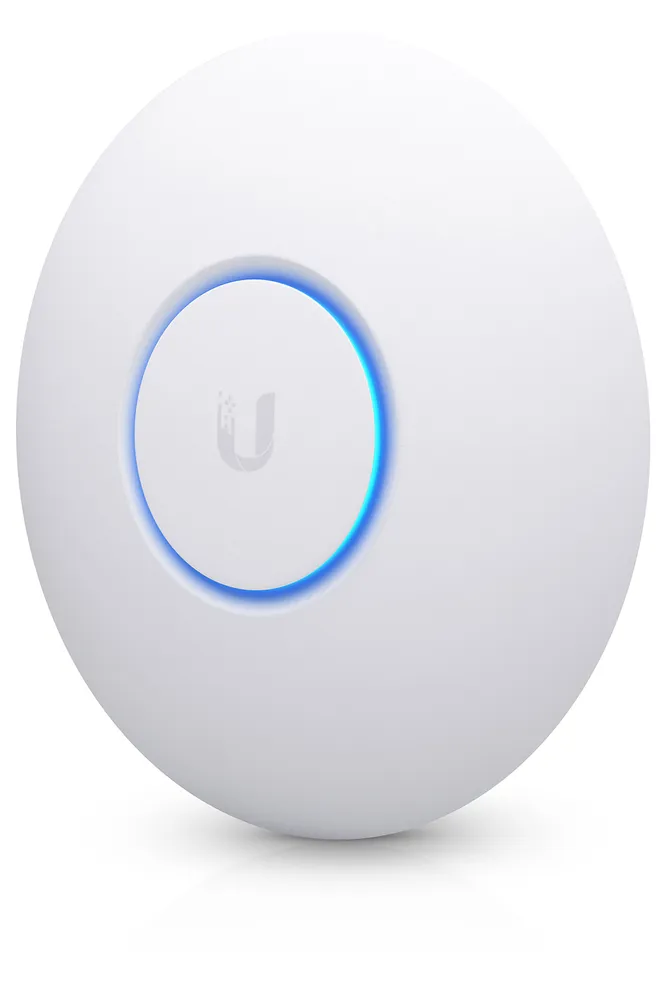

The Access Point nanoHD (UAP nanoHD) is a compact, dual-band access point that can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (2x2 MIMO) bands. The UAP nanoHD can also support over 200 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. With its elegant, nano-sized design, this access point can be staged virtually anywhere indoors where you'd like to enhance your wireless speed and performance. Built for plug-and-play simplicity, the UAP nanoHD can be set up in minutes and fully managed with the UAP Network web application or mobile app.
Features:
| Mechanical | |
|---|---|
| Dimensions | 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29") |
| Weight With Mounting Kits | 300 g (10.6 oz) 315 g (11.1 oz) |
| Networking Interface | (1) RJ45 GbE |
| Buttons | (1) Reset to Defaults |
| Power Method | 802.3af |
| Power Supply | UAP Switch (PoE) |
| Max. Power Consumption | 10.5W |
| Operating Frequency | 2.4 GHz 5 GHz |
| Max. TX Power 2.4 GHz 5 GHz | 23 dBm 26 dBm |
| Antenna Gain 2.4 GHz 5 GHz | 2.8 dBi 3 dBi |
| MIMO 2.4 GHz 5 GHz | 2x2 4x4 |
| Throughput 2.4GHz 5GHz | 300 Mbps 1733 Mbps |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per Radio |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
- Delivery & professional installation
- Configuration & migration
- Manufacturer warranty handling
- Annual maintenance & managed services (MSP)
Talk to the engineers who install this equipment — free sizing advice, no obligation.
Specifications
| Printing & Imaging Specs | |
|---|---|
| Wi-Fi Standard | 802.11ac Wave 2 |
| Aggregate Throughput | 2+ Gbps |
| 5 GHz Throughput | 1.733 Gbps |
| 2.4 GHz Throughput | 300 Mbps |
| Concurrent Clients | 200+ |
| Power Method | 802.3af PoE |
| Dimensions | 160 x 160 x 32.65 mm |
| Weight | 300 g |
