APC BX950U-MS UPS (950VA, 230V, AVR)

APC Back-UPS BX950U-MS 950VA UPS with AVR, ideal for home offices and small businesses in Malaysia.

950VA/480W power capacity for essential equipment
Automatic Voltage Regulation stabilises fluctuating power
Battery backup keeps devices running during outages
Built-in surge protection safeguards connected equipment
USB charging port for added convenience

MYR 899.00 — buy online, or request a project quotation

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Type	UPS
Capacity	950 VA
Real power	480 W
Topology	Line-interactive
Form	Tower

Full specifications ↓

Product details

APC BX950U-MS UPS

950VA | 230V | AVR

Warranty
- 2 year Manufacturer Limited Warranty (APC Service Center)

SPECIFICATIONS

Specifications
Model	BX950U-MS
Output	Output power capacity: 480 Watts / 950 VA Max Configurable Power (Watts): 480 Watts / 950 VA Nominal Output Voltage: 230V Output Frequency (sync to mains): 50/60 Hz +/-1 Hz Output Frequency (not synced): 50/60 Hz +/-1 Hz Topology: Line Interactive Waveform type: Stepped approximation to a sinewave Output Connections: (2) IEC 320 C13 (Battery Backup) Transfer Time: 8ms typical : 10 ms maximum

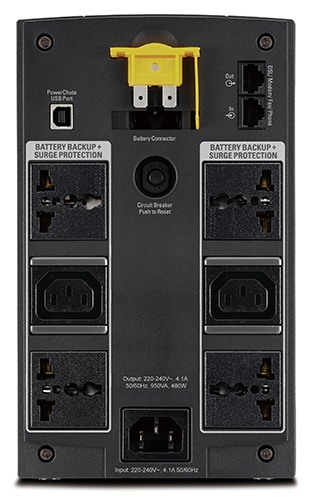

Input	Nominal Input Voltage: 230V Input frequency: 50/60 Hz +/- 3 Hz (auto sensing) Input Connections: IEC-320 C14, NEMA 5-15P Cord Length: 1.22 meters Input voltage range for main operations: 150 - 280 V Number of Power Cords: 2 Type of Input Protection Required: 3-pole breaker Maximum Input Current: 4.0 A
Batteries & Runtime	Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules: 1 Typical recharge time: 8 hour(s) Replacement Battery: RBC17 Battery Volt-Amp-Hour Capacity: 76
Communications & Management	Interface Port(s): USB Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering	Surge energy rating: 273 Joules Data Line Protection: RJ-11 Modem/Fax protection
Physical	Maximum Height: 215 mm , 21.5 CM Maximum Width: 130 mm , 13.0 CM Maximum Depth: 336 mm , 33.6 CM Net Weight: 8.0 KG Shipping weight: 8.99 KG Shipping Height: 295 mm , 29.5 CM Shipping Width: 245 mm , 24.5 CM Shipping Depth: 440 mm , 44.0 CM
Environmental	Operating Environment: 0 - 40 °C Operating Relative Humidity: 0 - 95% no % Operating Elevation: 0-3000 meters Storage Temperature: -15 - 45 °C Storage Relative Humidity: 0 - 95% no % Storage Elevation: 0-9000 meters Audible noise at 1 meter from surface of unit: 45.0 dBA
Conformance	Standard warranty: 2 years repair or replace
Sustainable Offer Status	RoHS: Compliant REACH: Contains No SVHCs
* Prices, Features, Package Content and Specifications are subject to change without prior notification.*

Supplied & supported by PrinterBullet

Delivery & professional installation
Configuration & commissioning
Manufacturer warranty handling
Annual maintenance & managed services (MSP)

Engineering by our services division, Ryzen ESolutions — Power protection & high availability →

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

012-282 2340 WhatsApp Request Quotation

Specifications

Storage Media Specs
Type	UPS

UPS Specs
Capacity	950 VA
Real power	480 W
Topology	Line-interactive
Form	Tower
Network card slot	No
Battery replaceable	Yes

General
Brand	APC
Model	BX950U-MS
Output Capacity (VA)	950 VA
Output Capacity (Watts)	480 W
Input Voltage	230 V
UPS Topology	Line-Interactive
Automatic Voltage Regulation (AVR)	Yes
USB Port	Yes (USB-A charging)
