Epson EB-W50 Digital Signage Projector (WXGA, 1280 x 800 Resolution, 20000:1 Contrast Ratio, 3800 lumens)
Epson · Projectors

Epson EB-W50 Digital Signage Projector (WXGA, 1280 x 800 Resolution, 20000:1 Contrast Ratio, 3800 lumens)

Epson EB-W50 Digital Signage Projector WXGA, 1280 x 800 Resolution | 20000:1 Contrast Ratio | 3800 lumens   Warranty - 2 year Epson Warranty - Manufactured and...

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Resolution 1280 x 800 WXGA MP
Type Entertainment
Full specifications ↓

Product details

Epson EB-W50 Digital Signage Projector

WXGA, 1280 x 800 Resolution | 20000:1 Contrast Ratio | 3800 lumens

Warranty
- 2 year Epson Warranty
- Manufactured and warranty provided by Epson

  SPECIFICATIONS

Model EB-W50
Projection Technology Projection Technology:
RGB liquid crystal shutter projection system (3LCD)

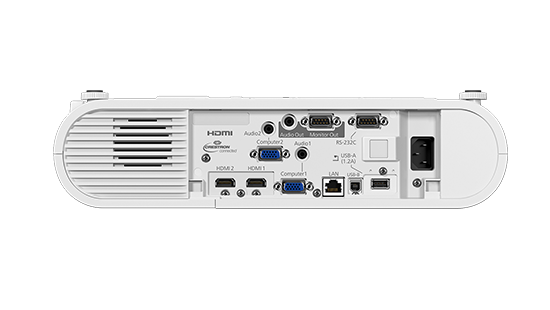

Connectivity Analog Input:
D-Sub 15Pin: 2
Digital Input:
HDMI: 2
Output Terminal:
D-Sub 15Pin: 1
Audio Input:
Stereo Mini Jack: 2
Audio Output:
Stereo Mini Jack: 1
Projection Lens Type:
Optical Zoom (Manual) / Focus (Manual)
Focal Length:
16.90 - 20.28 mm
Zoom Ratio:
1 – 1.2
F-number:
1.49 – 1.72
Throw Ratio Range:
1.30 - 1.56 (Wide to Tele
Wireless Specifications Supported Speed for Each Mode:
IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 130.0 Mbps*2
Wireless LAN Security:
Quick Mode: OPEN, WPA2-PSK
Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Screen Size Standard Size:
Wide: 33" to 320" [0.91 to 9.07 m]
Tele: 33" to 320" [1.10 to 10.89 m]
Geometric Correction Vertical/Horizontal Keystone:
±30° / ±30° (Auto Vertical Keystone only)
Quick Corner:
Yes
Operating Temperature Operating Temperature:
5 - 40 °C <41 - 104 °F
[When environment temperature becomes high, the brightness becomes dark automatically]
Operating Altitude Operating Altitude:
0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)
Cool Down Period Cool Down Period:
Instant Off
Direct Power On/Off Direct Power On/Off:
Yes
Weight Weight:
Approx. 3.0 kg (Including Standard Lens)
Air Filter Type:
High Efficiency Filter
Maintenance Cycle:
10,000 / 20,000 hours*3
Fan Noise Normal / Quiet:
37dB / 28dB
Power Power Supply Voltage:
100 - 240 V AC ±10%, 50/60 Hz
Others USB Type A:
1 (for USB Memory, USB Document Camera, Wirelss LAN unit, Firmware Update)
USB Type B:
1 (for USB Display, Control, Firmware Update)
Control I/O RS-232C:
D-Sub 9pin x 1
Network Wireless LAN:
RJ45 x 1
Wireless:
ELPAP10 (Optional)
Start Up Period Start Up Period:
Up to 6 seconds, Warm-up Period: 30 seconds
Power Consumption Lamp (Normal / Extended):
285W / 218W
Standby:
2.0W / 0.3 W
Dimension Excluding Feet Dimension Excluding Feet (D x W x H):
248 x 364 x 87 mm
Brightness White Light Output (Normal / Extended):
3,800 lm*1
Colour Light Output:
3,800 lm*1
Contrast Ratio:
20,000:1
Specifications of Main Parts LCD:
Native Resolution: WXGA (1280 x 800)
Size: 0.59”
Lightsource:
Type: 200W UHE
Life (Normal / Eco): 10,000 / 17,000 hours
Aspect Ratio:
16:10
* Features, Package Content and Specifications are subject to change without prior notification.*
