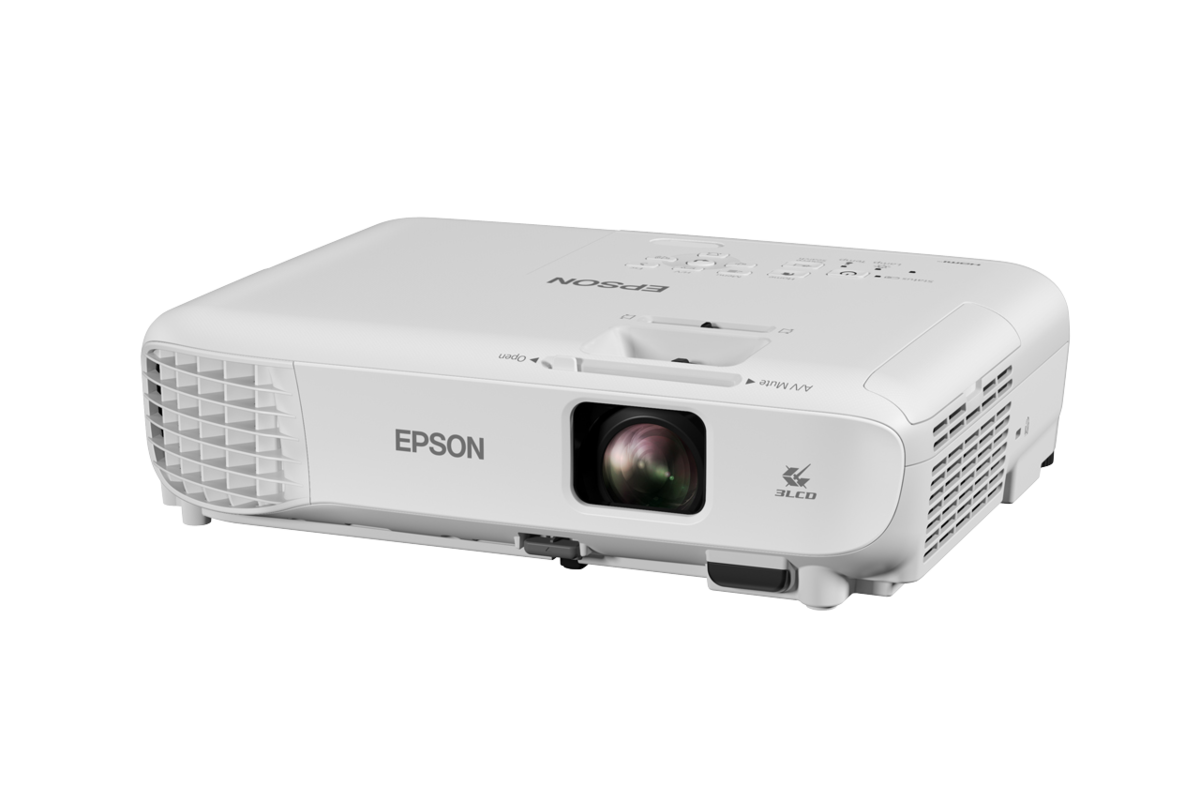

Epson EB-X06 Wireless 3LCD Projector (XGA 1024 x 768, 3,600 Lumens, 2Y)

Name: Epson EB-X06 Wireless 3LCD Projector (XGA 1024 x 768, 3,600 Lumens, 2Y)
Brand: Epson
SKU: PRD-202607-4977

Epson EB-X06 Wireless 3LCD Projector (XGA 1024 x 768, 3,600 Lumens, 2Y) -

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Resolution	1024 x 768 XGA MP
Type	Education

Full specifications ↓

Product details

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Brightness2:

White Light Output (Normal/Eco):3,600 lmColour Light Output:3,600 lm

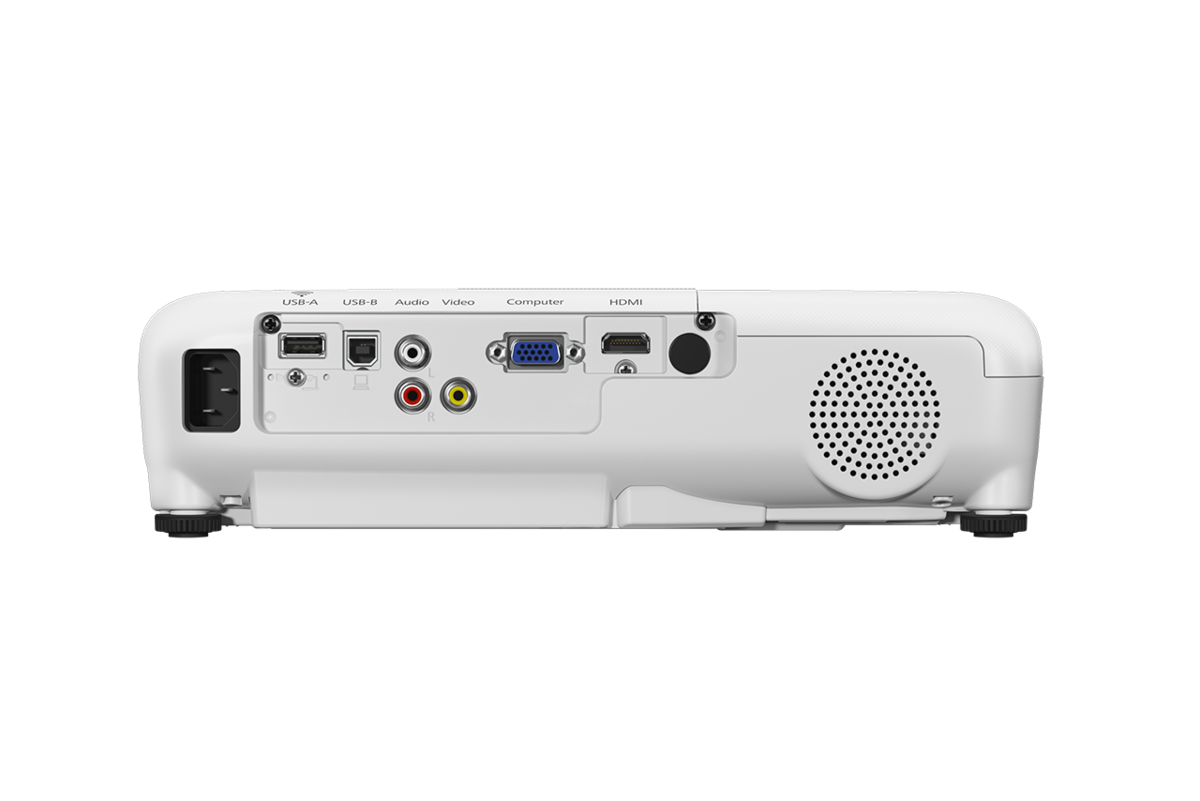

Connectivity:

USB Interface:USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network:Wireless: Optional (ELPAP11)Analog Input:Composite: 1 RCA
D-Sub 15pin: 1Digital Input:HDMI: 1 (MHL not supported)Audio Input:2 RCA: 1

Contrast Ratio:

Contrast Ratio:16,000:1

Screen Size (Projected Distance):

Standard Size:Tele: 30” to 300” [1.07 to 10.95 m]
Wide: 30” to 300” [0.89 to 9.12 m]

Geometric Correction:

Vertical/Horizontal Keystone:±30° / ±30° (Auto Vertical Keystone only)Quick Corner:Yes

Operating Temperature:

Operating Temperature:Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude:

Operating Altitude:0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:

Start-Up Period:Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period:Instant Off

Direct Power On/Off:

Direct Power On/Off:Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):302 x 77 x 234 mm

Weight:

Weight:Approx. 2.5 kg

Air Filter:

Type:High Efficiency FilterMaintenance Cycle:6,000 / 12,000 hours*3

Fan Noise:

Fan Noise (Normal / Eco):37dB / 28dB

Power:

Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz

Projectors Facets:

Resolution, Projectors Facets:XGAContrast Ratio, Projectors Facets:16,000:1Brightness Range Lumens, Projectors Facets:2000Features, Projectors Facets:Wifi
Quick CornerLaser / Lamp, Projectors Facets:Lamp

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode:IEEE 802.11a (5GHz): 54Mbps*2Wireless LAN Security:Access Point: OPEN, WPA2-PSK (AES)

Optional Wireless Specifications:

Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2Wireless LAN Security:Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)

Specifications of Main Parts:

LCD:Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)Lightsource:Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hoursAspect Ratio:4:3Projection Lens:F-Number: 1.49 – 1.72
Type: Optical Zoom (Manual) / Focus (Manual)
Zoom Ratio: 1 – 1.2
Throw Ratio1.48 – 1.77 (Wide to Tele)
