TP-Link · Switches

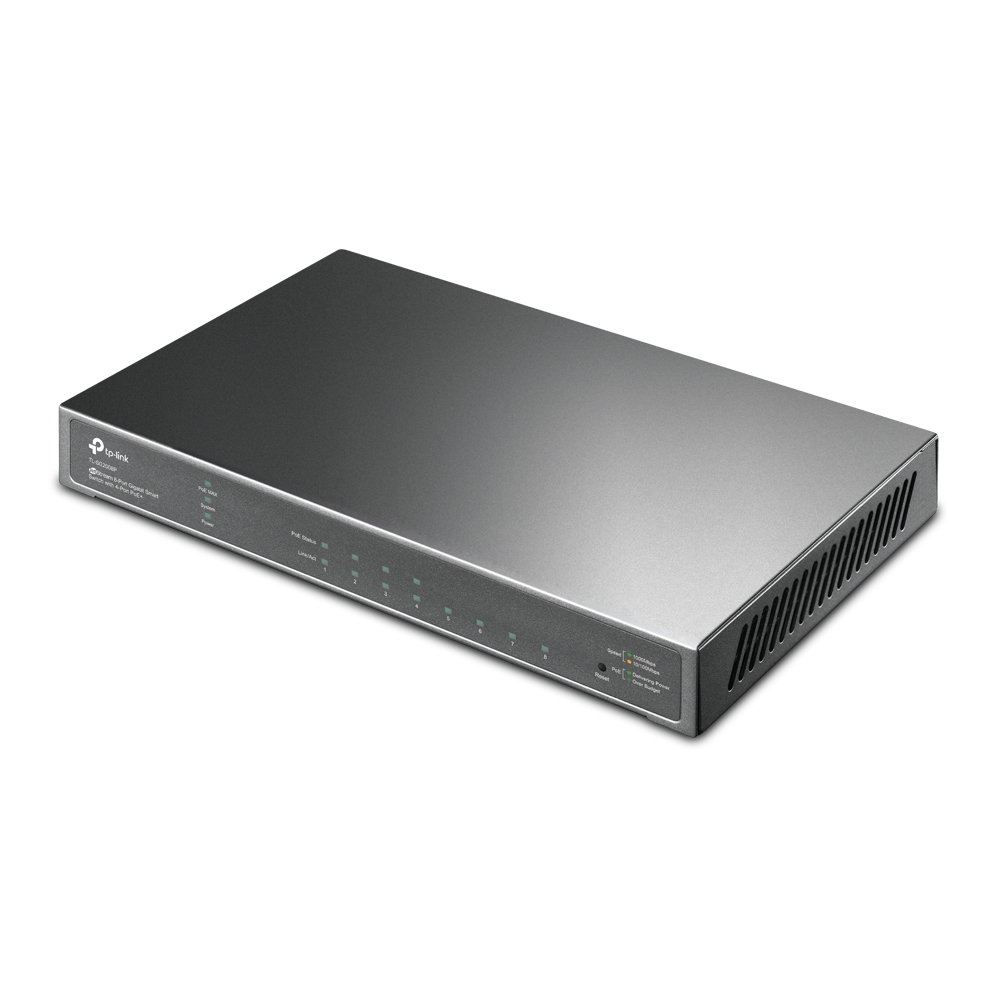

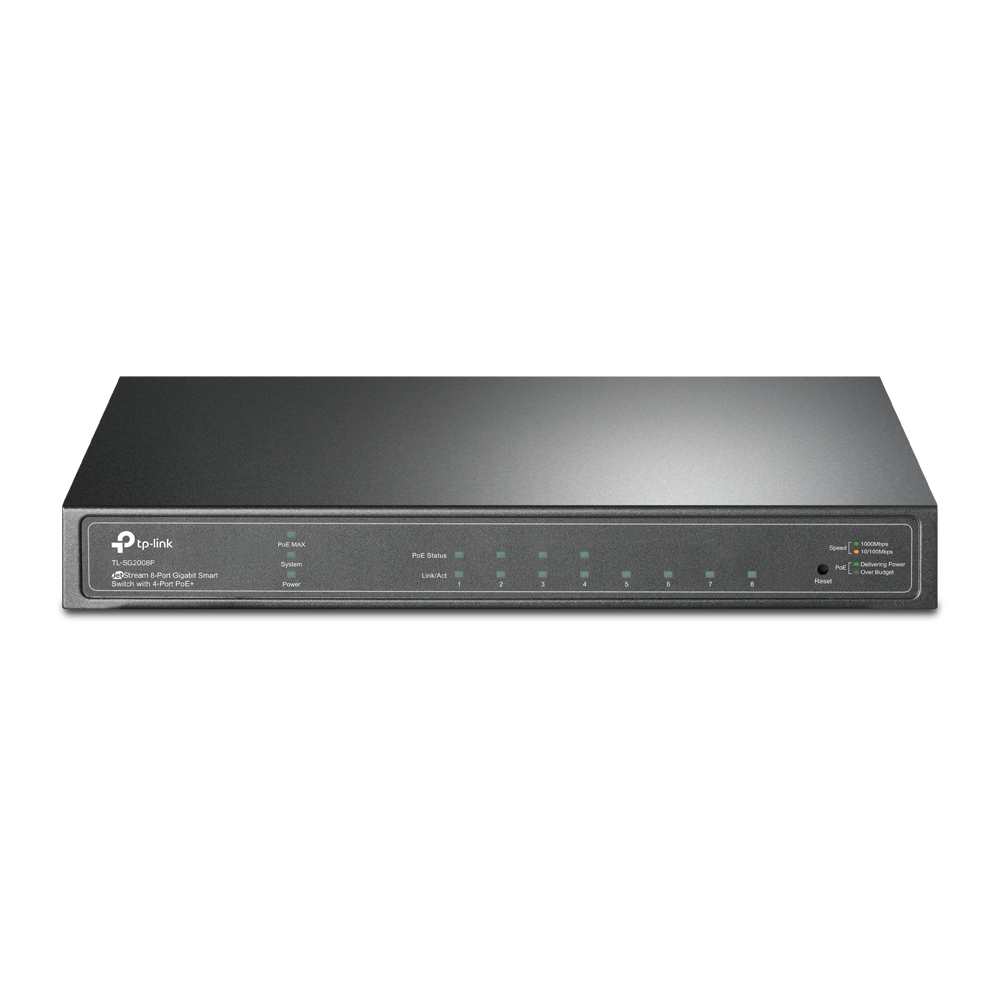

Omada TL-SG2008 8-Port Gigabit Smart Switch

Name: Omada TL-SG2008 8-Port Gigabit Smart Switch
Brand: TP-Link
SKU: PRD-202607-4481

Buy Omada TL-SG2008 8-Port Gigabit Smart Switch, TP-Link from Printer Bullet - Everything for office. Fast & Free Home Delivery. High Quality Service

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Ports	8× Gigabit RJ45 Ports
Interface	8 10/100/1000Mbps RJ45 Ports
Backplane Bandwidth	16Gbps
Power Consumption	Maximum: 6.42W
Dimensions	209 × 126 × 26mm

Full specifications ↓

Product details

JetStream™ 8-Port Gigabit Smart Switch

PORT: 8× Gigabit RJ45 Ports including 1 PoE IN Port

SPEC: Desktop Steel Case

FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface	8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Power Supply	100~240VAC, 50/60Hz External Power Adapter(Output: 12VDC/1A)
Power Consumption	Maximum: 6.42W (220V/50Hz)
Dimensions ( W x D x H )	8.2* 4.9* 1.0 in. (209* 126* 26mm)

PERFORMANCE
Bandwidth/Backplane	16Gbps
Packet Forwarding Rate	11.9Mpps
MAC Address Table	8k
Jumbo Frame	9216 Bytes

SOFTWARE FEATURES
Quality of Service	Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN
L2 Features	IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control
VLAN	Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List	L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based
Security	SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control 802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend
Management	Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG2008 Power Adapter Installation Guide Resource CD Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Delivery & professional installation
Configuration & migration
Manufacturer warranty handling
Annual maintenance & managed services (MSP)

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Ports	8× Gigabit RJ45 Ports
Interface	8 10/100/1000Mbps RJ45 Ports
Backplane Bandwidth	16Gbps
Power Consumption	Maximum: 6.42W
Dimensions	209 × 126 × 26mm
MAC Address Table	8k
Jumbo Frame	9216 Byte
Power Supply	100~240VAC, 50/60Hz
