Omada TL-SG105-M2 5-Port 2.5G Desktop Switch
TP-Link · Switches

Omada TL-SG105-M2 5-Port 2.5G Desktop Switch

Omada TL-SG105-M2 5-Port 2.5G Desktop Switch - 5-Port 2.

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Ports 5× 2.5G RJ45
Interface 100Mbps/1Gbps/2.5Gbps
Switching Capacity 25 Gbps
Packet Forwarding Rate 18.6 Mpps
Power Consumption 12.11 W
Full specifications ↓

Product details

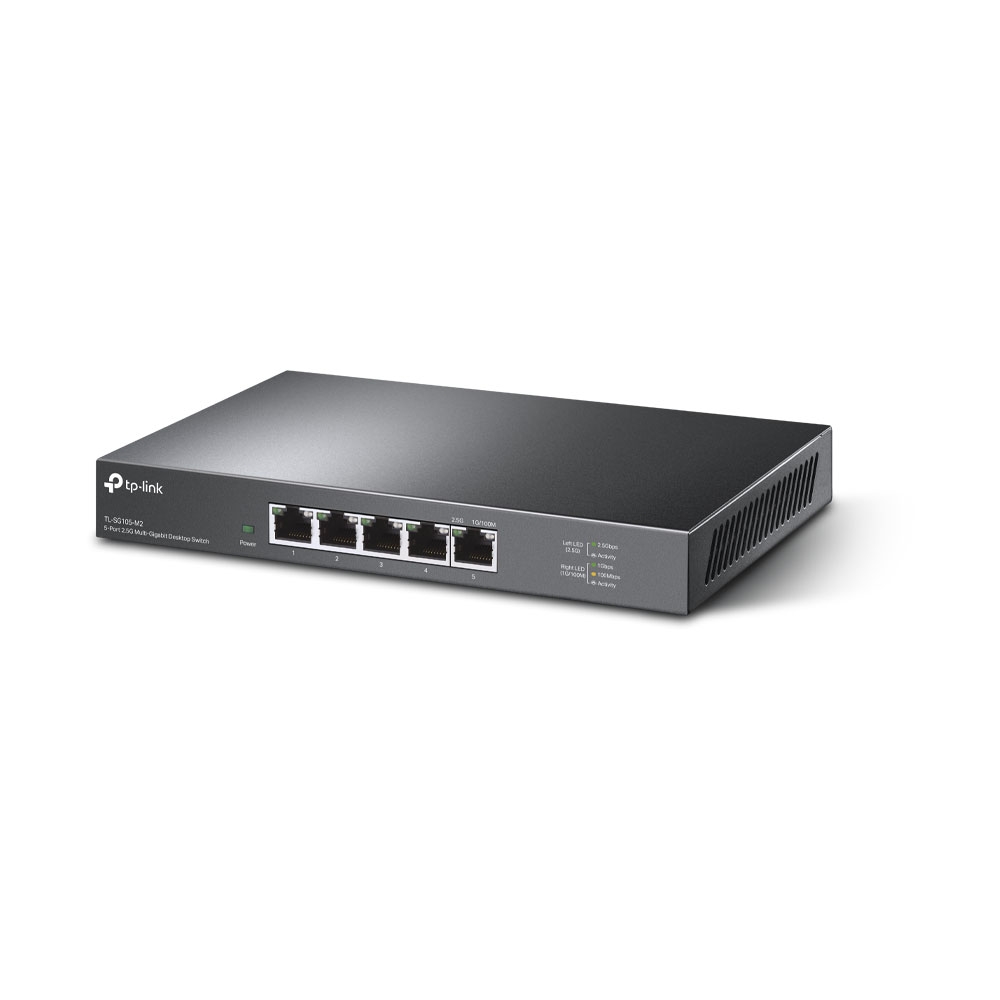

5-Port 2.5G Multi-Gigabit Desktop Switch

PORT: 5× 2.5G RJ45 Ports

SPEC: Desktop Steel Case

FEATURE: Plug and Play


HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX

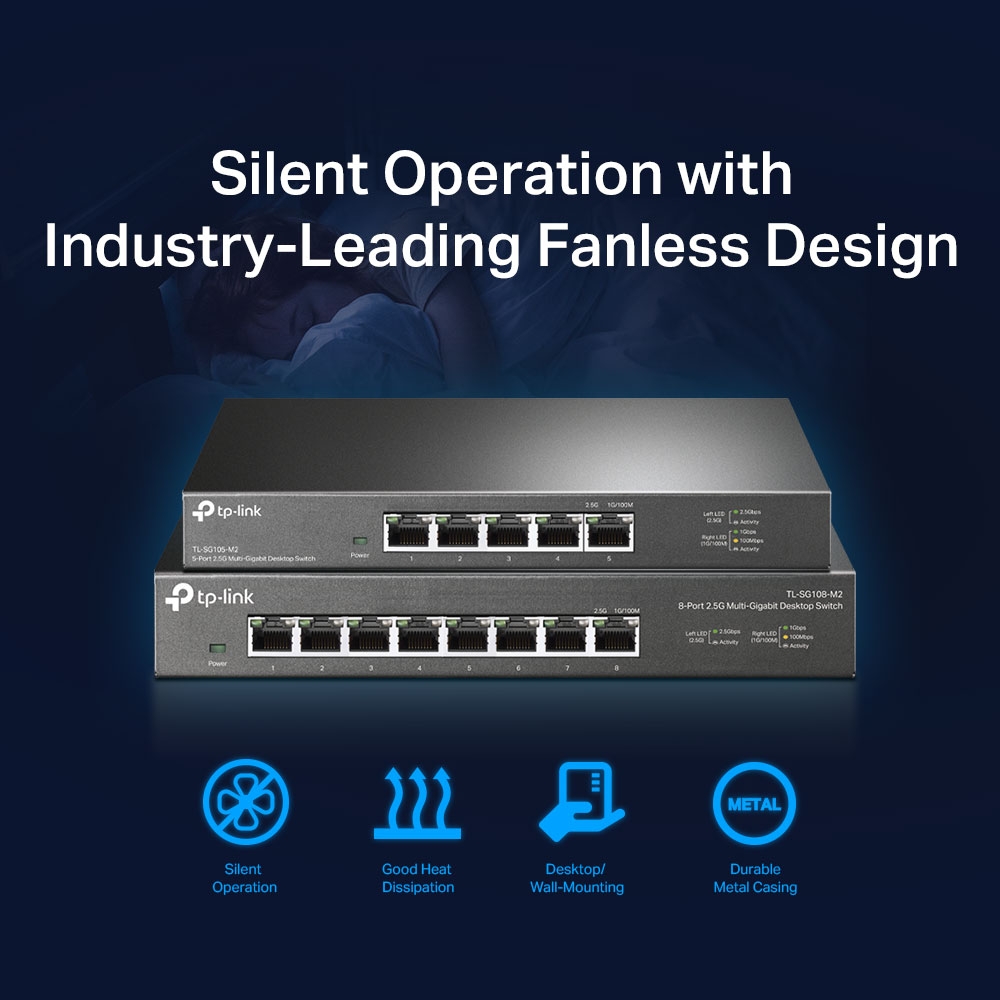

Fan QuantityFanless

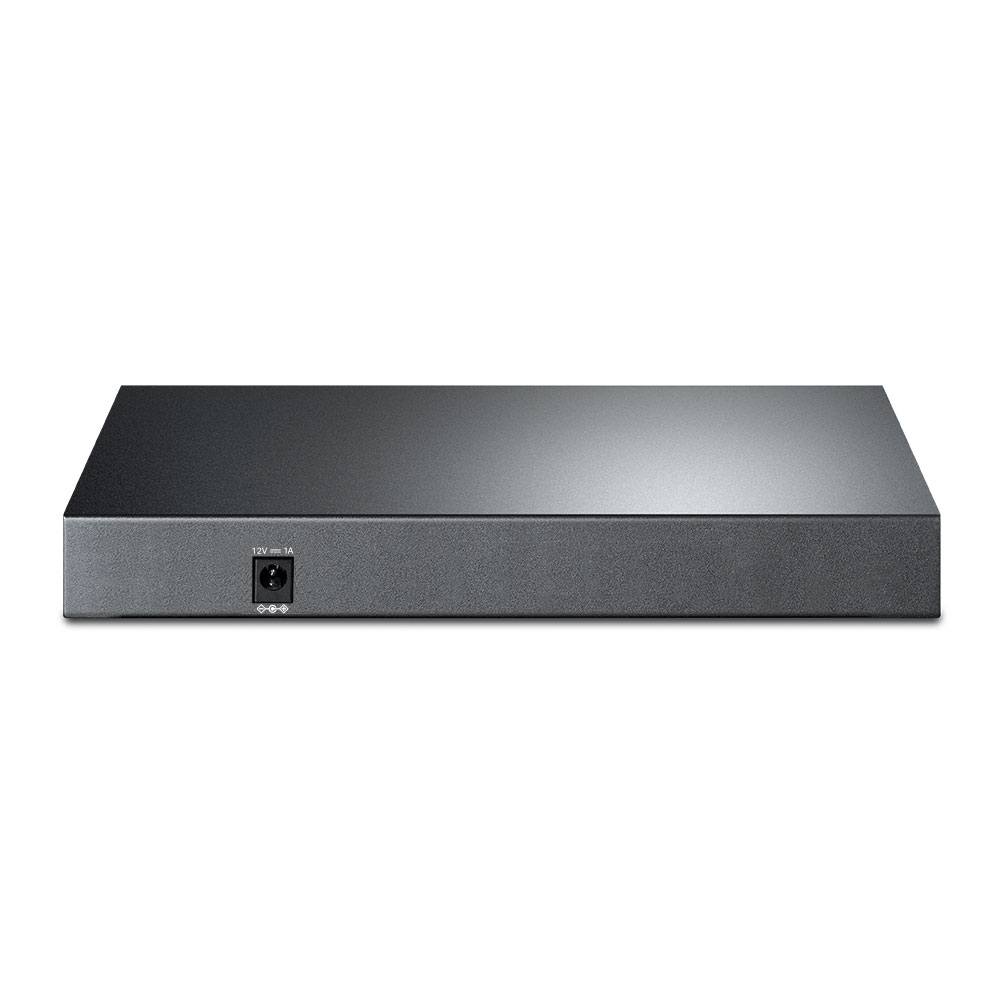

External Power SupplyExternal Power Adapter (Output: 12 VDC / 1 A)
LED Indicator• System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H )8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption12.11 W
Max Heat Dissipation41.32 BTU/h
PERFORMANCE
Switching Capacity25 Gbps
Packet Forwarding Rate18.6 Mpps
MAC Address Table16 K
Packet Buffer Memory1.5 Mb
Jumbo Frame10 KB
SOFTWARE FEATURES
Advanced Features• 802.3X Flow Control
• 802.1p/DSCP QoS
Transfer MethodStore and Forward
OTHERS
CertificationCE, FCC ,RoHS
Package Contents• 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD
  • Delivery & professional installation
  • Configuration & migration
  • Manufacturer warranty handling
  • Annual maintenance & managed services (MSP)
Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Ports5× 2.5G RJ45
Interface100Mbps/1Gbps/2.5Gbps
Switching Capacity25 Gbps
Packet Forwarding Rate18.6 Mpps
Power Consumption12.11 W
Dimensions209×126×26 mm
Case MaterialSteel
CoolingFanless
