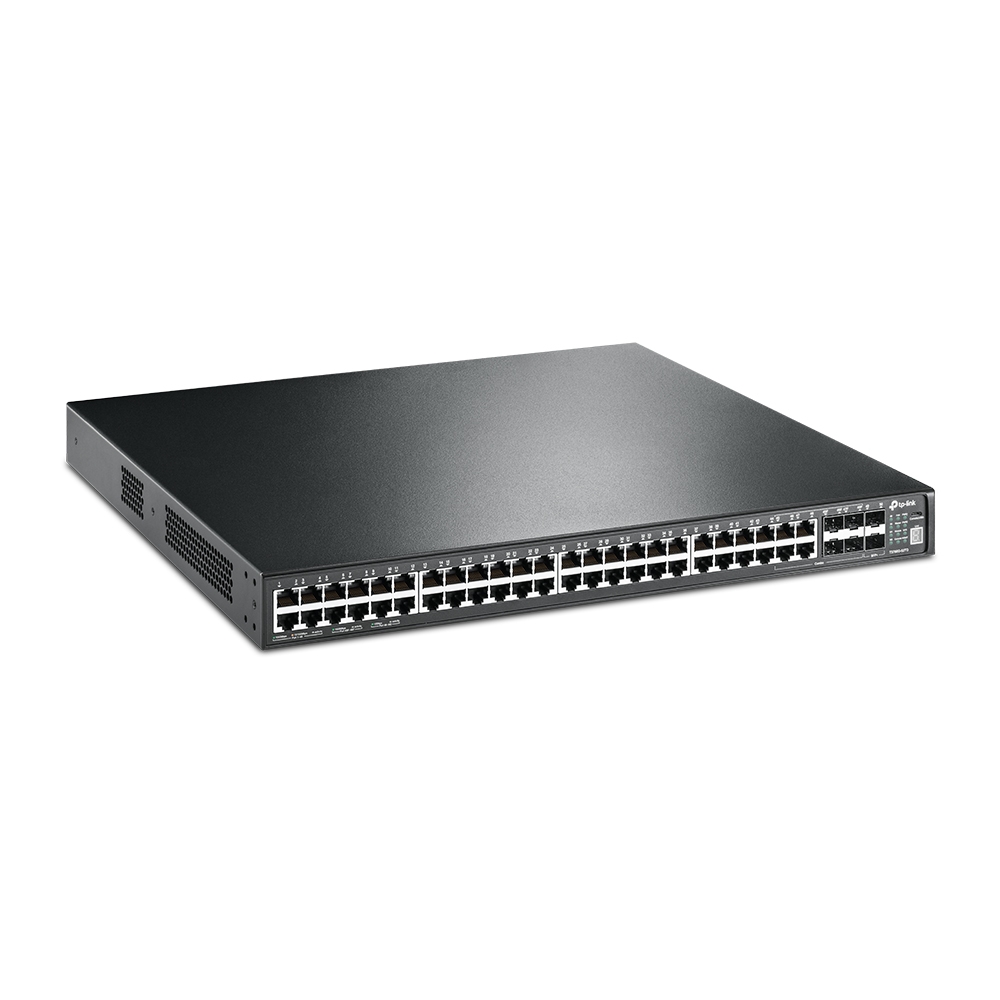

Omada T3700G-52TQ JetStream 52-Port Gigabit Stackable L3 Managed Switch
TP-Link · Switches

Omada T3700G-52TQ JetStream 52-Port Gigabit Stackable L3 Managed Switch

JetStream™ 48-Port Gigabit Stackable L3 Managed Switch with 4 10G SFP+ SlotsPORT: 48× Gigabit RJ45 Ports, 4× Combo Gigabit SFP Slots, 2× Integrated 10GSFP+ Slot...

Quote on request
✓ Available to order · supplied & installed in Malaysia
Request Quotation WhatsApp Ask a question
  • Genuine unit through the authorised channel — manufacturer warranty
  • Itemised quotation within 1 working day, B2B invoicing
  • Delivery nationwide — installation available for enterprise gear
Key specifications
Ports 48× Gigabit RJ45 Ports, 4× Combo Gigabit SFP Slots, 2× Integrated 10G SFP+ Slots, 2× Optional 10G SFP+ Slots
Form Factor 1U 19-inch Rack-mountable
Power Supply Dual Hot-swappable, 150W each
Switching Capacity Up to 176Gbps
Max Power Consumption 58.82W
Full specifications ↓

Product details

JetStream™ 48-Port Gigabit Stackable L3 Managed Switch with 4 10G SFP+ Slots

PORT: 48× Gigabit RJ45 Ports, 4× Combo Gigabit SFP Slots, 2× Integrated 10GSFP+ Slots, 2× Optional 10G

SFP+ Slots, RJ45/Micro-USB Console Port, Management Port, USB Port

SPEC: 1U 19-inch Rack-mountable Steel Case, Dual Removable Power Unit, True Physical Stacking Up to 8 Units,

FEATURE: Static Routing/RIP/OSPF/ECMP/VRRP, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, PIM-SM/PIM-DM, IGMP, IGMP Snooping, 802.1p/DSCP QoS, 802.1x, Radius/Tacacs+ Authentication, ACL, LACP, CLI, SNMP, Dual Image/Configuration, IPv6


HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Combo Gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional)
1 Micro-USB, 1 RJ45 Console Port
1 Management Port
1 USB Slot
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
Fan Quantity2 Removable
Physical Security LockNo
Power Supply100~240VAC, 50/60Hz

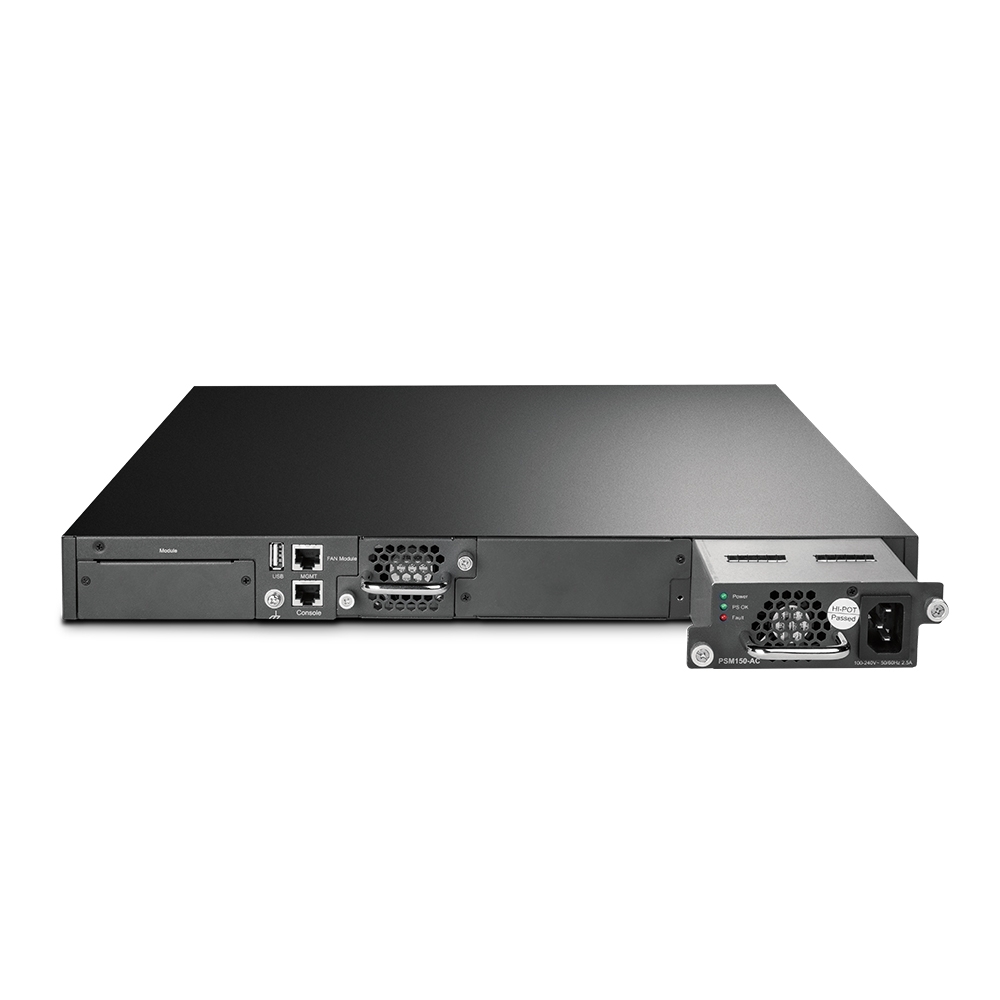

Dual Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)
Dimensions ( W x D x H )17.32*16.55*1.73 in. (440*420*44 mm)
MountingRack Mountable
Max Power Consumption58.82W (220V/50Hz)
Max Heat Dissipation200.69 BTU/h
PHYSICAL STACKING
Installable SFP+ Transceivers and Direct Attach Copper (DAC) CablesTXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M
Max Number of Stacking Ports Installable2 SFP+
Stacking Speed (Per Port)20 Gbps (Full-Duplex)
No. of Units Per Stack8
PERFORMANCE
Switching CapacityUp to 176Gbps for a standalone switch
Packet Forwarding RateUp to 130.9Mpps for a standalone switch
MAC Address Table32K
Packet Buffer Memory4MB
Jumbo Frame12KB
Number of Routes8K IPv4
Number of Static Routes256 IPv4
Number of IP Interfaces128 IPv4
SOFTWARE FEATURES
Quality of ServiceSupport 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Ingress/Egress DiffServ
Port/Flow- based Rate Limiting
Voice VLAN
L2 FeaturesIGMP Snooping V1/V2/V3
MVR
802.3ad LACP (Up to 64 aggregation groups, 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLANSupports up to 4K VLANs simultaneously
IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
SecurityIP-MAC-Port-VID Binding
IEEE 802.1X
AAA
Radius/Tacacs+ Authentication and Accounting
DoS Defence
Dynamic ARP inspection (DAI)
IP Source Guard
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Access Control list
Broadcast/Multicast/Unknown-unicast Storm Control
L3 FeaturesWire-speed IP forwarding
Static Routing
RIP v1, v2
OSPF v2
ECMP
PIM-SM/PIM-DM/IGMP
DHCP Server/Relay
ARP Proxy
VRRP
ManagementWeb-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
SYSLOG & Public MIBS
Dual Image
IPv6 Management
OTHERS
CertificationCE, FCC, RoHS
Package ContentsSwitch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Supplied & supported by PrinterBullet

Engineering by our services division, Ryzen ESolutions — Network design & engineering →

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

012-282 2340 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Ports48× Gigabit RJ45 Ports, 4× Combo Gigabit SFP Slots, 2× Integrated 10G SFP+ Slots, 2× Optional 10G SFP+ Slots
Form Factor1U 19-inch Rack-mountable
Power SupplyDual Hot-swappable, 150W each
Switching CapacityUp to 176Gbps
Max Power Consumption58.82W
StackingUp to 8 Units
Dimensions440×420×44 mm
Max Heat Dissipation200.69 BTU/h
