TP-Link · Switches

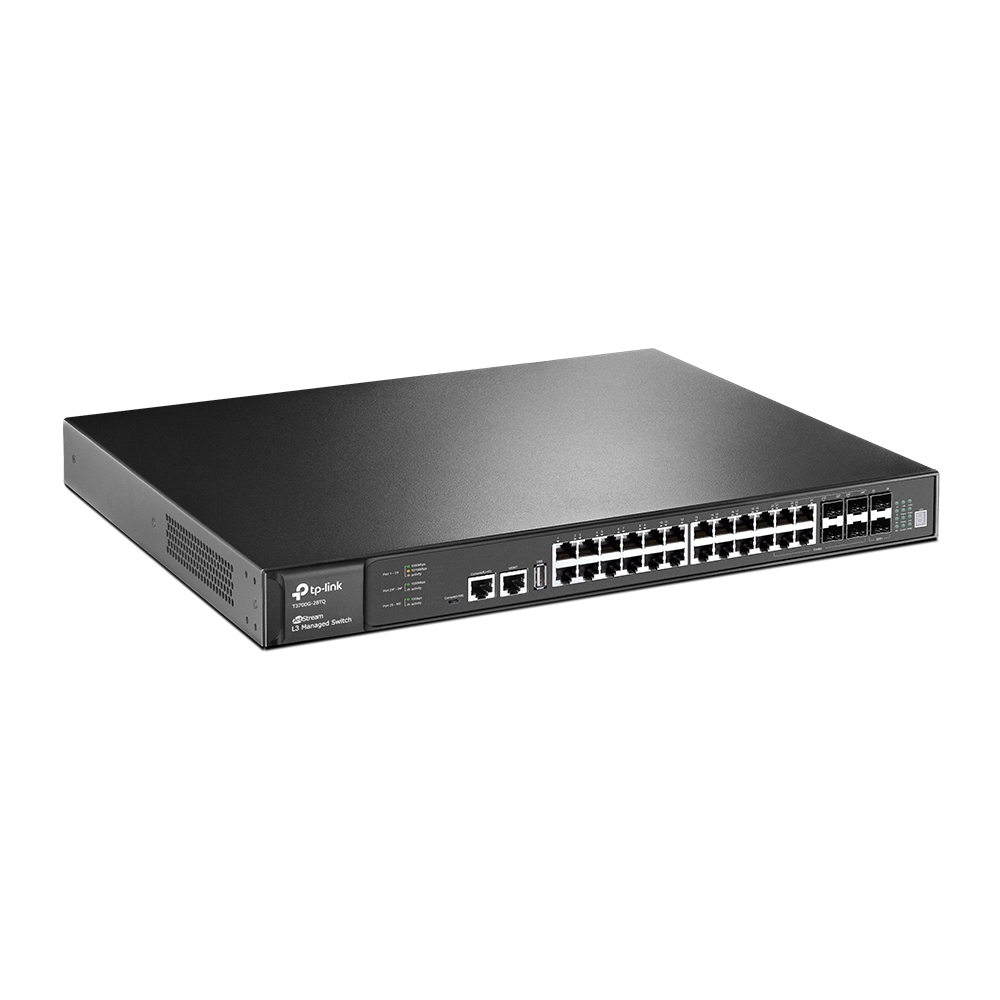

Omada T3700G-28TQ JetStream 28-Port Gigabit Stackable L3 Managed Switch

Name: Omada T3700G-28TQ JetStream 28-Port Gigabit Stackable L3 Managed Switch
Brand: TP-Link
SKU: PRD-202607-4473

Omada T3700G-28TQ JetStream 28-Port Gigabit Stackable L3 Managed Switch - JetStream™ 24-Port Gigabit Stackable L3 Managed Switch with 4 10G SFP+ SlotsPORT: 24×...

Quote on request

✓ Available to order · supplied & installed in Malaysia

Request Quotation WhatsApp Ask a question

Genuine unit through the authorised channel — manufacturer warranty
Itemised quotation within 1 working day, B2B invoicing
Delivery nationwide — installation available for enterprise gear

Key specifications
Ports	24× Gigabit RJ45 Ports, 4× Combo Gigabit SFP Slots, 2 Integrated 10G SFP+ Slots, 2× Optional 10G SFP+ Slots
Switching Capacity	Up to 128Gbps for a standalone switch
Stacking Bandwidth	Up to 320Gbps when 8 units in the stack
Packet Forwarding Rate	Up to 95.2Mpps
Power Consumption	47W (220V/50Hz)

Full specifications ↓

Product details

JetStream™ 24-Port Gigabit Stackable L3 Managed Switch with 4 10G SFP+ Slots

PORT: 24× Gigabit RJ45 Ports, 4× Combo Gigabit SFP Slots, 2 Integrated 10G SFP+ Slots, 2× Optional 10G SFP+ Slots, RJ45/Micro-USB Console Port, Management Port, USB Port

SPEC: 1U 19-inch Rack-mountable Steel Case, Dual Removable Power Unit, True Physical Stacking Up to 8 Units

FEATURE: Static Routing/RIP/OSPF/ECMP/VRRP, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, PIM-SM/PIM-DM, IGMP, IGMP Snooping, 802.1p/DSCP QoS, 802.1x, Radius/Tacacs+ Authentication, ACL, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface	24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 combo gigabit SFP Slots Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots) 1 Console Port
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR
Fan Quantity	1 removable fan module
Physical Security Lock	No
Power Supply	100~240VAC, 50/60Hz
Dimensions ( W x D x H )	17.32131.73 in.(44033044 mm)
Mounting	Rack Mountable
Max Power Consumption	47W (220V/50Hz)
Max Heat Dissipation	160.36 BTU/h

PHYSICAL STACKING
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables	TXM431-SR TXM431-LR TXC432-CU1M TXC432-CU3M
Max Number of Stacking Ports Installable	2 SFP+
Stacking Speed (Per Port)	20 Gbps (Full-Duplex)
No. of Units Per Stack	8

PERFORMANCE
Switching Capacity	Up to 128Gbps for a standalone switch
Bandwidth/Backplane	Up to 320Gbps when 8 units in the stack
Packet Forwarding Rate	Up to 95.2Mpps for a standalone switch
MAC Address Table	32K
Packet Buffer Memory	32 Mbits
Jumbo Frame	12 KB
Number of Routes	8K
Number of Static Routes	256
Number of IP Interfaces	128

SOFTWARE FEATURES
Quality of Service	Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN
L2 Features	IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control
VLAN	Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
Access Control List	L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based
Security	IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control
L3 Features	Wire-speed IP forwarding Static Routing RIP v1, v2 OSPF v2 ECMP PIM-SM/PIM-DM/IGMP DHCP Server/Relay ARP Proxy VRRP
Management	Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image

OTHERS
Certification	CE, FCC, RoHS
Package Contents	Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Supplied & supported by RYZEN ESOLUTIONS (M) SDN BHD

Delivery & professional installation
Configuration & migration
Manufacturer warranty handling
Annual maintenance & managed services (MSP)

Need help choosing?

Talk to the engineers who install this equipment — free sizing advice, no obligation.

1700-81-8170 WhatsApp Request Quotation

Specifications

Printing & Imaging Specs
Ports	24× Gigabit RJ45 Ports, 4× Combo Gigabit SFP Slots, 2 Integrated 10G SFP+ Slots, 2× Optional 10G SFP+ Slots
Switching Capacity	Up to 128Gbps for a standalone switch
Stacking Bandwidth	Up to 320Gbps when 8 units in the stack
Packet Forwarding Rate	Up to 95.2Mpps
Power Consumption	47W (220V/50Hz)
Dimensions	*17.32131.73 in.(44033044 mm)*
Mounting	Rack Mountable
Max Stacking Units	8
