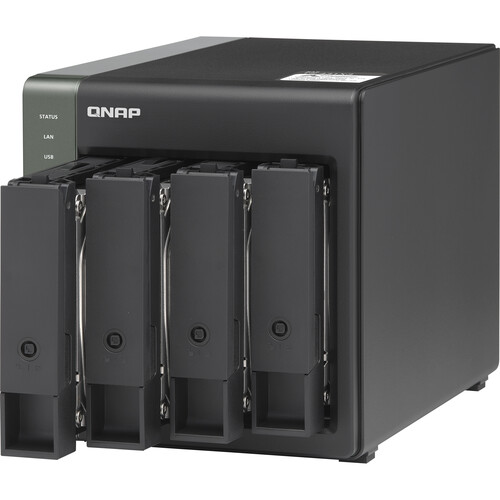

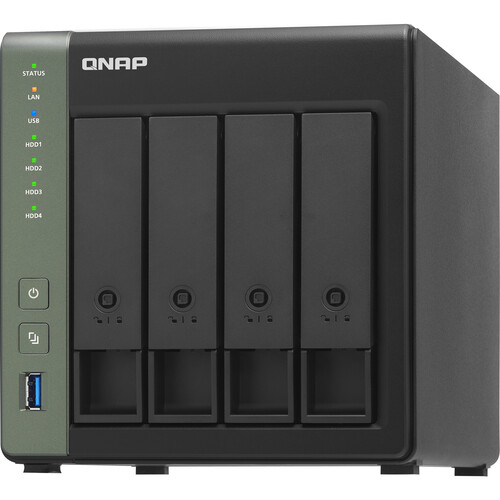

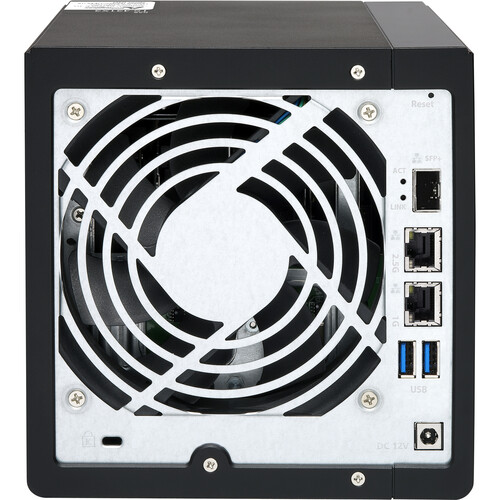

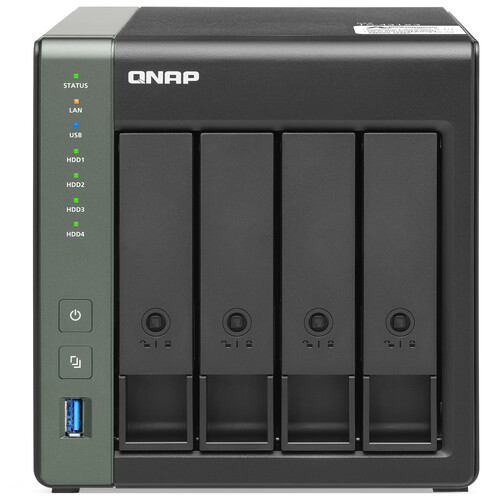

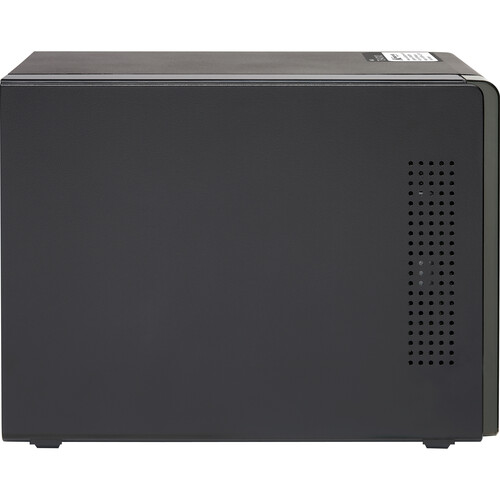

QNAP TS-431X3 4-Bay NAS Enclosure
QNAP TS-431X3 4-Bay NAS Enclosure - Key Features4 x 3.
Quote on request
✓ Available to order · supplied & installed in Malaysia
- Genuine unit through the authorised channel — manufacturer warranty
- Itemised quotation within 1 working day, B2B invoicing
- Delivery nationwide — installation available for enterprise gear
| Drive bays | 4 |
Product details
Key Features
- 4 x 3.5"/2.5" SATA III/II Drive Bays
- 1.7 GHz Annapurna Labs AL-314 Quad-Core
- 4GB of DDR3 RAM
- 1 x 10GbE SFP+ | 1 x 2.5GbE | 1 x 1GbE
- 3 x USB 3.0 Type-A Ports
- RAID 0, 1, 5, 6, 10, JBOD, and Single
- Data Transfer Speeds up to 1108 MB/s
- AES 256-Bit Encryption
- SSD Cache Acceleration Support
- QTS 4.4.2 Operating System
TS-431X3-4G
| CPU | AnnapurnaLabs, an Amazon company Alpine AL314, 4-core, 1.7GHz | ||
| CPU Architecture | 32-bit ARM | ||
| Floating Point Unit | |||
| Encryption Engine | |||
| System Memory | 4 GB SODIMM DDR3 (1 x 4 GB) | ||
| Maximum Memory | 8 GB (1 x 8 GB) | ||
| Memory Slot | 1 x SODIMM DDR3 | ||
| Flash Memory | 512 MB (Dual boot OS protection) | ||
| Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s | ||
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives | ||
| Hot-swappable | |||
| SSD Cache Acceleration Support | |||
| Gigabit Ethernet Port (RJ45) | 1 | ||
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1(2.5G/1G/100M) | ||
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ | ||
| Wake on LAN (WOL) | Only the 1GbE port | ||
| Jumbo Frame | |||
| USB 3.2 Gen 1 port | 3 | ||
| Form Factor | Tower | ||
| LED Indicators | Power, Status, LAN, USB, HDD1-4 | ||
| Buttons | Power, Reset, USB Auto Copy | ||
| Dimensions (HxWxD) | 165 × 160.2 × 220.5 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) | ||
| Weight (Net) | 3.19 kg | ||
| Weight (Gross) | 3.47 kg | ||
| Operating Temperature | 0 - 40 °C (32°F - 104°F) | ||
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | ||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | ||
| Power Supply Unit | 90W adapter (12VDC), 100-240VAC | ||
| Fan | 1 x 120mm, 12VDC | ||
| System Warning | Buzzer | ||
| NAS Specs | |
|---|---|
| Drive bays | 4 |
